89
1

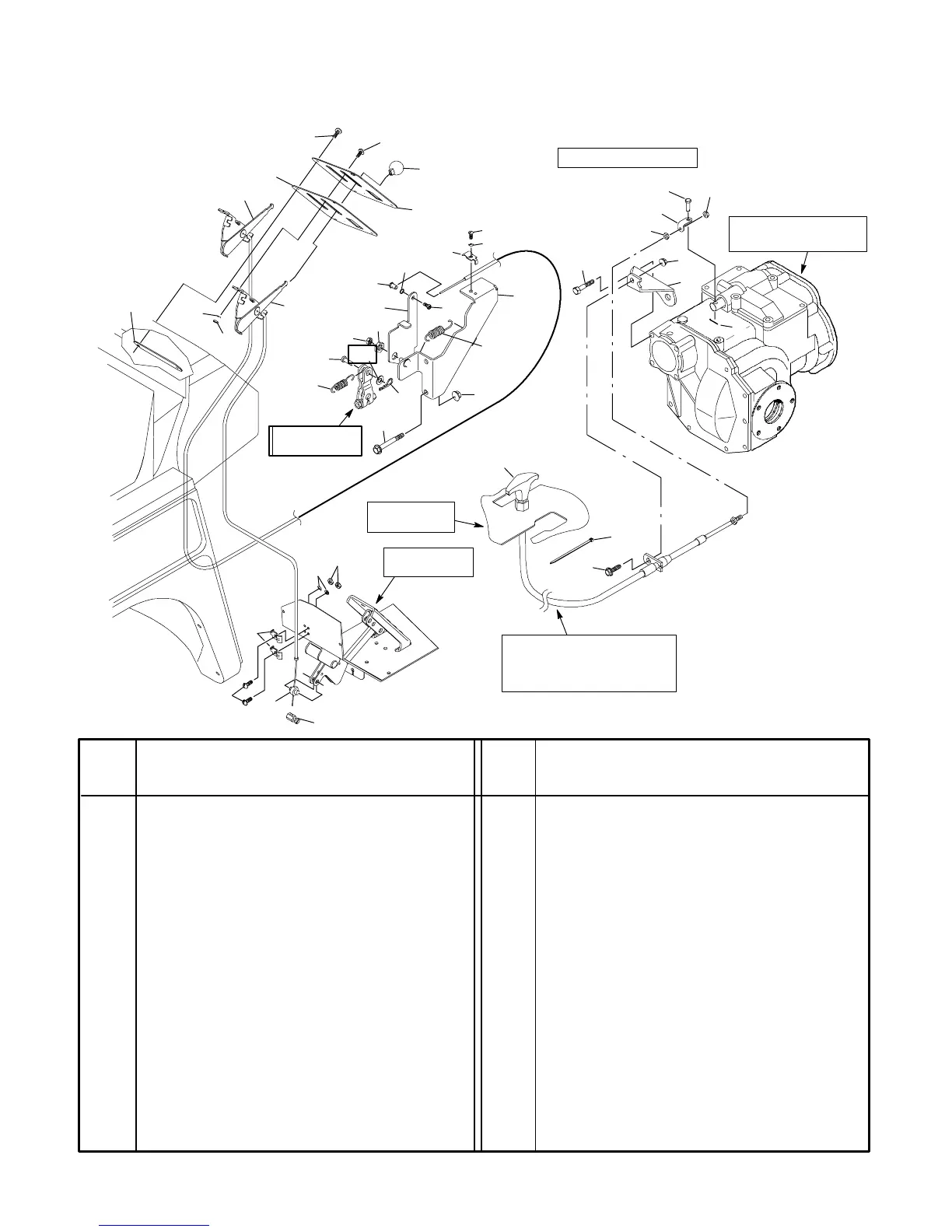

HAND CONTROLS, GOVERNOR and THROTTLE (DIESEL)
Reference
Control Panel
Reference
Foot Throttle
Reference D ifferential
(11.16:1 & 14.21:1)
APPLY LOCTITE 242
*
26
1 111898 Clamp, cable 3.................
2 120052 Lockwasher , #10 6..............
3 132520 Nut, #10-32 3..................
4 306328 Pin, cotter 29/32 x 3/4 1.........
5 306514 Screw, #10-32 x 1/2 3...........
6 306531 Nut, #10-24 6..................
7 320107 Tie, cable 7 1/2 ” (190.5 mm) 1...
8 450452 Nut, M6-1.00 (G10.9) 1..........
9 452378 Screw, M6-1.00 x 20 1...........
10 800271 Screw, #10-24 x 1/2 (G5) 4.......
11 800582 Screw , 1/4-20 x 3/4 4............
12 806703 Pin, clevis 5/16 x 31/32 1........
13 817104 Stop, wire 2....................
14 827821 Knob 2........................
15 828049 Cable, control (hand throttle) 1....
16 831888 Swivel 1.......................
17 831889 Washer, swivel 1................
18 831890 Screw, swivel throttle cable 1.....
19 837043 Bracket
1......................
20 841264 Panel, left hand, turf 1...........
21 843607 Bushing, throttle cable 1.........
22 844116 Decal, left hand dash, turf 1......
23 844130 Cable, governor control 1........
24 893067 Cable, control (hi-lo shift) 1.......
25 894743 Nut, double 2...................
26 307776 Screw, 3/8-16 x 2 3/4 2..........
27 836841 Bracket, hi-lo shift cable mount 1.
28 103867 Washer, 5/16 1.................
29 130728 Nut, 1/4-20 jam 1...............
30 450453 Nut, M8-1.25 (G10.9) 2..........
31 452394 Screw, M8-1.25 x 70 (G8.8) 2....
32 812444 Pin, clevis 5/16 x 3/4 1..........
33 821164 Pin, hair 1.....................
34 835271 Nut 1..........................
35 840473 Spring, extension 1.............
36 842785 Spring, idle return 1.............
37 844274 Lever, governor
1...............
38 894591 Bracket, throttle 1...............
Ref.
No.
Part
No.
Description
No.
Req’d
No.
Req’d
Description
Part
No.
Ref.
No.
11
10
14
22
20
23
25
15
12
19
3
8
24
4
9
7
6
2
5
13
21
*
Must Attach Control Cable
To Park Brake Cable w /
Cable T ie To Avoid Coming
In Contact With The Muffler
894198, P894647, 893594, 893533
27
3
*
Reference
From Engine
5
2
1
38
30
28
34
16
17
18
37
35
2
6
29
32
36
33
31
To Next Page
