Cushman 898673 - Dipstick Location, Perkins Diesel Engine; Engine Oil Capacity; Oil Level Reading

SERVICE & MAINTENANCE Cont.
16

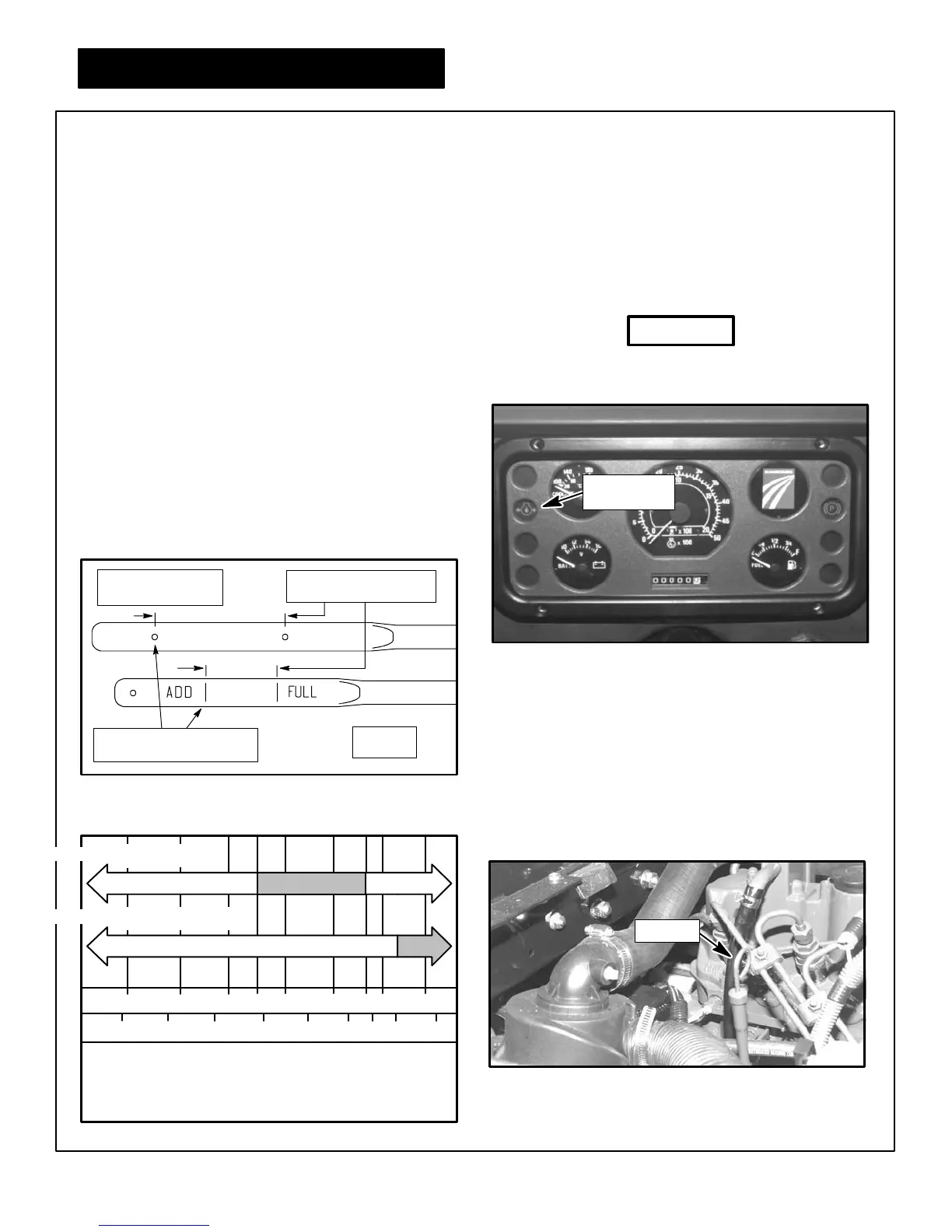

Figure 18
Oil Level Reading
Figure 19
Oil Pressure Warning Light
NOTICE
• If you notice the oil pressure warning light coming
on, STOP the vehicle and check for problems.
Figure 20
Dipstick Location, Perkins Diesel Engine
Remove the oil fill cap and add the appropriate amount
of engine oil. Use the dip stick to check the level again, if
oil level is sufficient, replace oil fill cap.
DO NOT OVERFILL
If the oil level is below the add mark, add an SAE
10W-30 oil to bring the level up between the marks
(refer to the recommended oil weights in the chart for
your particular climate range).
Oil Pressure
Light
Engine Oil Capacity
Suzuki K6A 3.3 qts. (3.0 L)..................
Suzuki 970 3.7 qts. (3.5 L)...................
Perkins Diesel 3.7 qts. (3.5 L)...............
Engine Oil Level (con’t.)
Dipstick
Engine Oil Replacement Filters:
Suzuki K6A Order Part No. 16510-82703.....
Suzuki 970 Order Part No. 16510-82703......
Perkins Diesel Order Part No. 842553.......
Remove the dipstick and wipe with a clean rag, reinsert the dipstick until it contacts the oil tube, remove dipstick and
read the oil level.
The oil level should always between the ADD and FULL mark on the dipstick. DO NOT OVER FILL.
If the engine has recently been running, allow time (with the engine turned off) to let the oil settle to obtain a
correct level reading.
°F
°C
--20 0 20 32 40 60 77 80 100
40302520100-- 1 0-- 2 0-- 3 0
Temperature Range Anticipated Before Next Oil Change
SAE 10W-30 for all temperature ranges
Using multi grade oils (5W-20, 10W-30, and 10W-40) will
increase oil consumption. Check oil level more frequently
when using them.
10W-40
SAE 10W/10W-30
Suzuki K6A & 970
Perkins Diesel
SAE 20W/10W-30 SAE 30W/10W-30
Do Not
Overfill
Oil Dipsticks May
Vary In Appearance
Add Oil If The Level
Is At Or Below This Mark
Oil Level Must
Be Between The Marks
