Cushman 898673 - Alternator, Engine Belts, Pulleys and Brackets

96
Reference
Alternator
Part No. 893633
Use Loctite 242
On These Items
Reference
Power Steering Pump
Part No. 892534
Reference
Governor
Part No. 894080
Reference
Fan Switch Tube
Part No. 894348
(With Radiator)
To
Engine
To
Engine

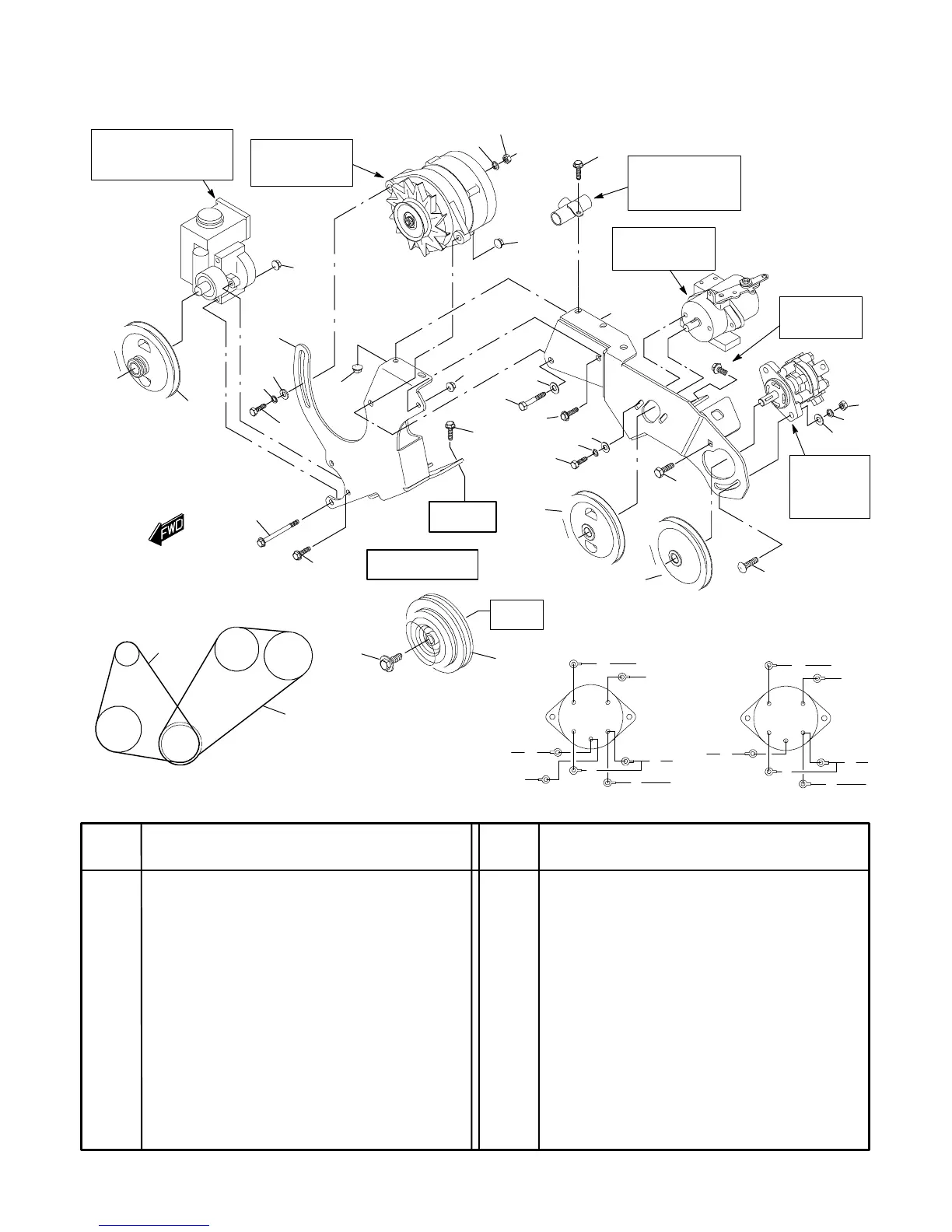

ALTERNATOR, ENGINE BELTS, PULLEYS and BRACKETS
(SUZUKI K6A)
1 103867 Washer, 3/8 3..................
2 120177 Lockwasher , 3/8 2..............
3 306835 Screw, 3/8-16 x 1 3/4 1..........
4 306325 Lockwasher , 5/16 3.............
5 306375 Nut, 1/4-20 1...................
6 306396 Lockwasher , 1/4 1..............
7 306416 Screw, 5/16-18 x 1 1............
8 306450 Screw, 5/16-18 x 3/4 2...........
9 306562 Nut, 3/8-16 2...................
10 306981 Washer, 3/8 3..................
11 311213 Screw, 3/8-16 x 3 1.............
12 450453 Nut, M8-1.25 (G10.9) 5..........
13 452388 Screw, M8-1.25 x 20 (8.8) 8......
14 452394 Screw, M8-1.25 x 70 (8.8) 2......
15 844035 Pulley, 4.75” (governor) 1........
16 841027 V-belt, 53 1/4” (1352 mm) 1......
17 839907 Pulley, 5.50” (steering pump) 1...
18 2703818.7 Bracket, alternator mounting 1.
19 843998 V-belt, 40” (1016 mm) 1.........
20 894375 Bracket, governor mounting 1....
21 800073 Bolt, carriage, 3/8-16 x 1 1/4 1....
22 828100 Pulley, 5.50” (hydraulic pump) 1..
23 548804 Nut, 3/8-16 1...................
24 12619-60
B00 Bolt 1....................
25 95131-51
F60 Pulley, crankshaft
(manual transmission) 1....
95131-51
F50 Pulley, crankshaft
(automatic transmission) 1..
Ref.
No.
Part
No.
Description
No.
Req’d
No.
Req’d
Description
Part
No.
Ref.
No.
12
17
14
13
4
1
24
25
18
13
6
5
894588, 894507
P
E
EXC
B
S
R
G
B
W/R
R
R
B
P
E
EXC
B
S
R
G
B
W/R
R
R
MODEL 898628
MODEL 898627
3
2
21
23
Reference
Hydraulic
Pump Part
No. 888042
10
9
22
19
16
Engine Belt Diagram
Models 898627 & 898628
ALTERNATOR WIRING
ALT
PWR
STRNG
CRNKSHFT
GOV
HYDR
PUMP
Existing
Hardware
From Engine
*
Front Of Vehicle
12
12
11
10
13
13
*
1
4
8
15
20
7
