Cushman 898673 - Page 97

95
1 300646 Screw, 1/4-20 x 3/4 2............
2 306396 Lockwasher , 1/4 2..............
3 308090 Washer, 1/4 2..................
4 450452 Nut, M6-1.00 7.................
5 450541 Screw, M6-1.00 x 16 4...........
6 452378 Screw, M6-1.00 x 20 7...........
7 835805 Hose, radiator overflow As Req’d..
8 825884 Clamp, tube 3..................
9 809231 Grommet
(Model 898671) 2.......
10 800177 Screw, 5/16-18 x 3/4 4...........
11 831846 Nut, isolation 4.................
12 825624 Clamp, hose (Model 898671) 4...
13 889051 Cap, coolant reservoir 1.........
14 833512 Foam 2........................
15 800789 Kit, oil cooler mounting, automatic
transmission (Model 898671) 1...
16 840754 Decal, Warning Pressure 1.......
17 843040 Bracket, fan mounting 1.........
18 888549 Connector , hose (air cleaner) 1...
19 894590 Radiator 1.....................
20 833443 :Plug 1........................
21 889049 :Cap, radiator 1................
22 833442 :O-ring 1......................
23 889050 Reservoir , coolant 1.............
24 893388 Mount, radiator 1...............
25 893554 Screen 1......................
26 2700799 Fan, radiator, cooling 1.........
27 450453 Nut, M8-1.25 (G10.9) 2..........
28 452388 Screw, M8-1.25 x 20 (8.8) 1......
29 452395 Screw, M10-1.50 x 80 (8.8) 1.....
30 452398 Screw, M10-1.50 x 20 (8.8) 2.....
31 820889 Clamp, tubing 6................
32 843857 Sender, water temperature 1.....
33 843638 Hose, radiator upper (K6A) 1.....
34 843639 Hose, radiator (K6A) 1...........
35 843646 Hose, radiator lower (K6A & 970) 1
36 894348 Tube, fan switch (K6A & Perkins) 1
37 844034 Hose, radiator upper (970) 1.....
38 842746 Hose, radiator upper (Perkins) 1..
39 829787 Terminal, 45E 1/4” male 1........
40 826590 Hose, 5/16 i.d.
(Model 898671) As Req’d.........
41 838340 Cooler, oil
(automatic transmission) 1.......
42 821893 Trim, push-on
(Model 898671) As Req’d.........
43 844391 Hose, radiator lower (Perkins) 1..
44 844390 Hose, radiator (Perkins) 1........
45 452393 Screw, M8-1.25 x 60 (8.8) 2......
46 832033 Clamp (970) 1..................
47 833715 Plug (970) 1....................
48 833858 Fitting, hose (970) 1.............
49 843738 Housing, fan sender (970) 1......
50 843856 Gasket, fan switch housing (970) 2
51 009034880 Decal, fan 1................
52 17561-73000 Cap, water (970) 1.........
53 17600-85831 Thermostat (970) 1........
54 17680-50
F70 Switch, fan 1..............
55 17689-50
F00 :O-ring 1.................
Ref.
No.
Part
No.
Description
No.
Req’d
No.
Req’d
Description
Part
No.
Ref.
No.
: INDENTED PART NAMES INDICATE THESE PARTS ARE INCLUDED IN THE PRECEDING ASSEMBLY
@
The parts illustration only shows two (2) of Item 12 (825624 Hose Clamps). The other two are used
to secure the cooler hoses to the transmission lines.
`
`
Not Illustrated. Item 42 (821893 Push-on T rim) is used on Model 898671 to protect the automatic
transmission hoses and is used on the right side motor mount and the frame rail.
@

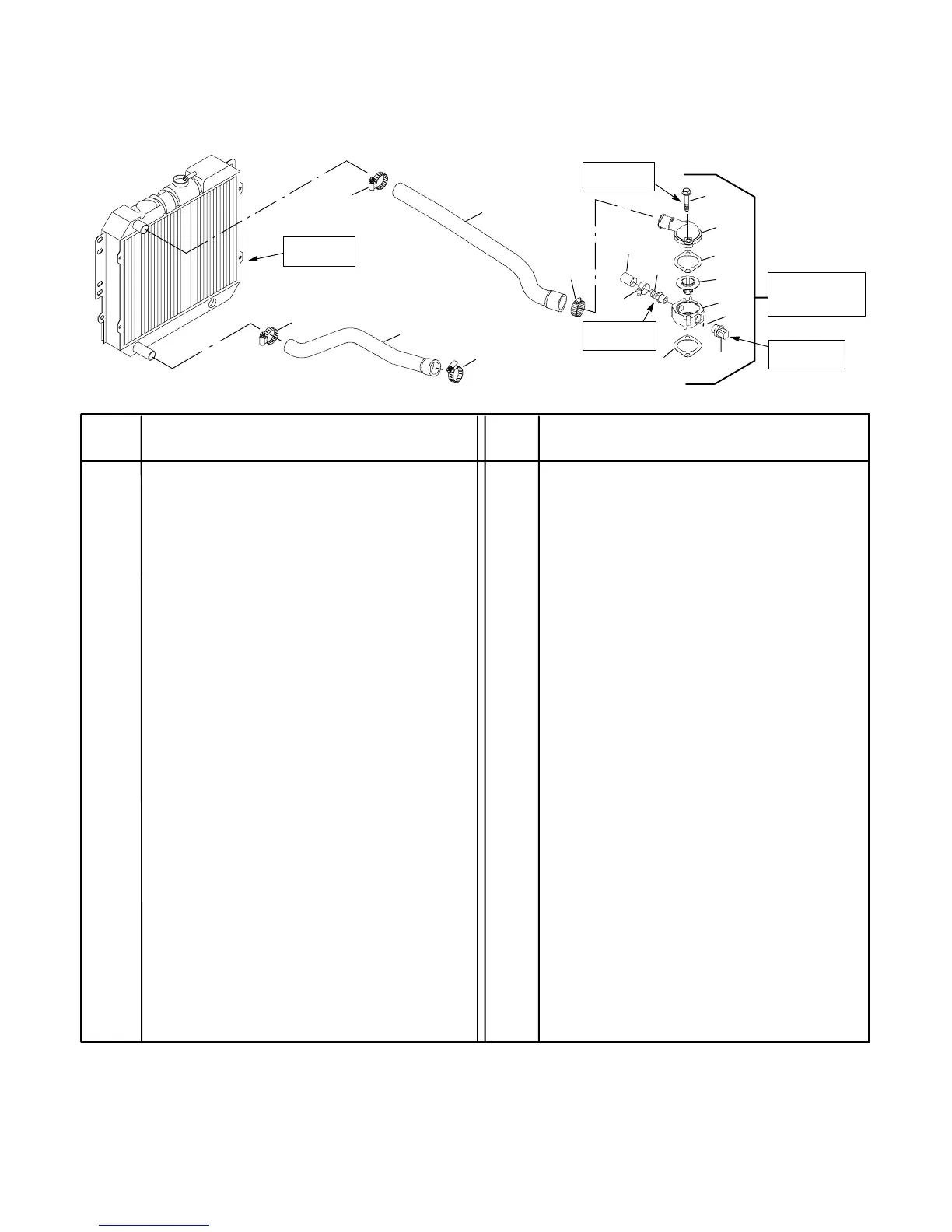

RADIATOR and COOLING SYSTEM
37
31
35
31
31
31
52
50
50
55
54
47
46
48
53
49
With
Suzuki 970
(Model 898671)
Reference
Radiator
45
Use Loctite
592
Use Loctite
242
Use Loctite
592
