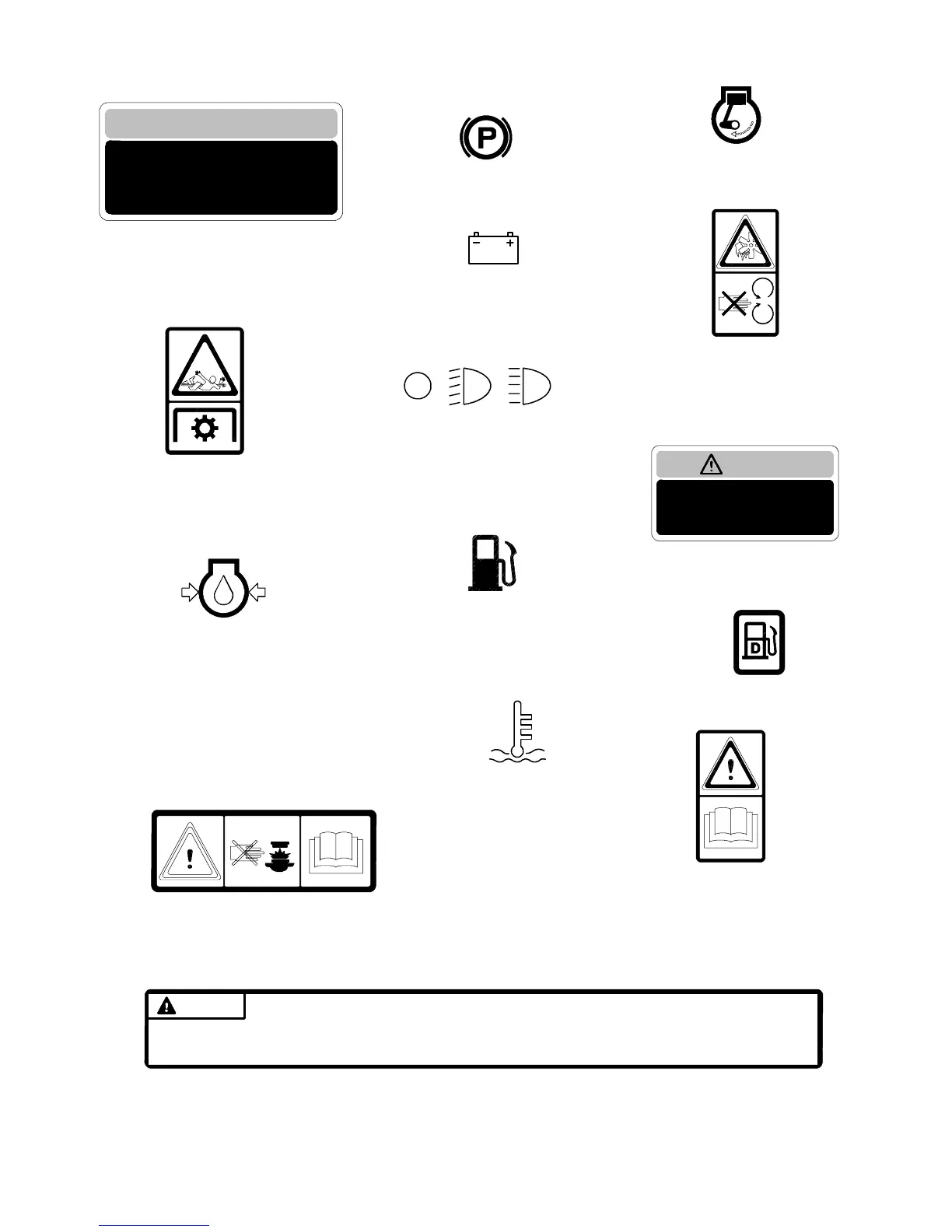

OPERATION CONTROL SYMBOLS
And DECALS
NOTICE
821071
THIS UNIT IS NOT A MOTOR VEHICLE WITHIN THE
DEFINITION OF THE NATIONAL TRAFFIC MOTOR
VEHICLE SAFETY ACT. IT IS NOT DESIGNED
OR MANUFACTURED FOR USE ON ROADS, STREETS
OR HIGHWA YS, NOR IS IT APPROPRIATE FOR
SUCH USE. IT IS NOR MEANT TO BE LICENSED
AS A MOTOR VEHICLE.
WARNING
PARKING BRAKES ARE NOT AUTO-
MATICALLY APPLIED. VEHICLE MAY
MOVE CAUSING PERSONAL INJURY
AND/OR PROPERTY DAMAGE. ALWAYS
APPLY HAND OR FOOT BRAKES.
822819
X 100
This symbol indicates
engine rpm’s.
Engine RPM
This decal lets the operator know that the
vehicle is not defined as a motor vehicle and
therefore should not be driven on streets,
roads or highways
Motor Vehicle Compliance
This decal informs the operator to read
and understand the Operator ’s manual.
To prevent injury, they must be familiar
with the operatio n of this product and be
fully aware of safe operating procedures.
Read the Operator’s Manual
This decal warns the operator that the
park brake is not automatically applied.
Park Brake Warning
Engine Oil Pressure Light
This light will come on when the ignition key
is turned to the ON position and when the
engine is started (it will shut off once the
engine is running). Its main function is to
warn the operator if the oil pressure gets
to low. If this light comes on during nor-
mal vehicle operation, stop the vehicle
and check for problems
OFF DIM BRIGHT
These symbols appear on the light
switch. As indicated, each one repre-
sents the headlights functions.
Headlight Switch Positions
This symbol appears on the fuel
gauge. The fuel gauge indicates
the amount of fuel in the fuel tank
Fuel Level Indicator
This symbol appears on the volt-
meter gauge. This gauge indi-
cates the charging of the battery.
Battery (V oltmeter) Charging
This light will come on when
the park brake is applied.
Park Brake Indicator Light
This symbol appears on the water
temperature gauge. This gauge warns
the operator if the coolant system is
overheating.
Water Temperature Gauge
This decal warns the operator keep
hands away from the cooling fan, the
cooling fan can start at any time even
with the ignition key in the OFF position.
Electric Cooling Fan Warning
009034880
This decal warns the operator not to remove the radiator cap
when the engine is hot. Refer to the Cooling System Section
in this manual for proper safety and operating instructions.
Radiator Coolant Warning
840748
840845
This symbol indicates
diesel fuel only
840901
844643
This decal warns the operator that
an uncovered P.T.O. can cause
entanglement of clothing and/or
body parts.
P.T. O . Warn in g
845038
This decal informs the operator of proper procedures for safely
operating the vehicle. Read this manual completely to become
aware of other safety issues and operating procedures which will
help you operate this v ehicle in a safe and responsible manner.
Vehicle Operation
WARNING
F AILURE TO HEED THESE
WARNINGS MAY RESULT IN
SERIOUS INJURY OR DEATH
1. READ AND UNDERSTAND ALL LABELS AND THE OPERATOR’S MANUAL.
2. DO NOT ALLOW UNTRAINED PERSONNEL TO OPERATE THIS VEHICLE.
3. DO NOT MODIFY THIS VEHICLE WITHOUT MANUFACTURER’S AUTHORIZATION.
4. PLACE LOADS FORWARD OF REAR AXLE.
5. TOP HEAVY LOADS CAN CAUSE UPSETTING. DO NOT EXCEED PAYLOAD
CAPACITY.
6. DO NOT OPERATE IF REPAIRS ARE REQUIRED.
7. KEEP ALL SHIELDS IN PLACE.
8. SHIFT INTO NEUTRAL OR PARK BEFORE STARTING ENGINE.
9. ONLY CARRY PASSENGERS IN SEATS PROVIDED.
10. WHEN PARKING (LEAVING) VEHICLE, FOLLOW ALL INSTRUCTIONS IN
OPERATOR’S MANUAL.
11. AVOID SUDDEN STARTS, STOPS AND SHARP TURNS ESPECIALLY ON SLOPES, OR
WITH HEAVY LOADS
12. KEEP ALL LABELS AND INSTRUCTIONAL LITERATURE LEGIBLE AND INTACT.
13. KEEP ARMS AND LEGS WITHIN VEHICLE BODY.
