1 306328 Pin, cotter, 3/32 x 3/4 4..........
2 844224 Pin, roll 3/16 x 1 3/4” 2..........
3 450452 Nut, M6-1.00
(G10.9) 6..........
4 452378 Screw, M6-1.00 x 20 6...........
5 452695 Screw, M6-1.00 x 20, taptite 1....
6 515268 Bushing 2......................
7 524633 Screw, shoulder 5/16-18 x 1 2....
8 524643 Bearing, split 2.................
9 548911 Nut, 5/16-18 2..................
10 800943 Screw, tap, #10-14 x 5/8 10......
11 806714 Pin, clevis, 5/16 x 3/4 3..........
12 844223 Spring, torsion 2................
13 830784 Pin, clevis, 1/4 x 1 7/8 1.........
14 841663 Panel, floor access 1............
15 843360 Channel, mount 1...............
16 843561 Link, throttle 1..................
17 843562 Mount, channel 1...............
18 843563 Plate, pivot 2...................
19 843997 Bracket, stop 1.................
20 894159 Pedal, throttle 1................
21 894540 Cable, throttle (Suzuki Models) 1..
22 894618 Cable, throttle (Perkins) 1........
Ref.
No.
Part
No.
Description
No.
Req’d
No.
Req’d
Description
Part
No.
Ref.
No.

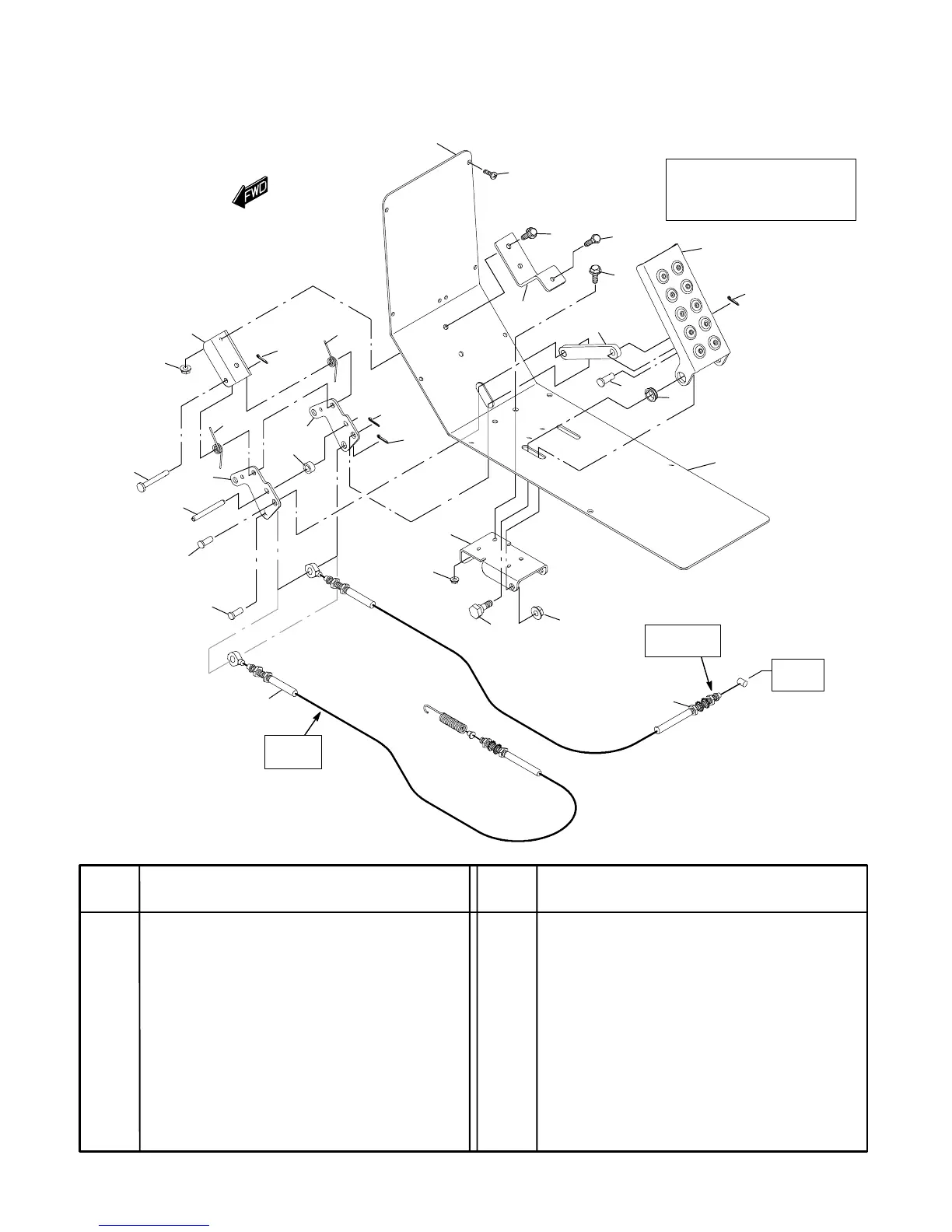

FOOT THROTTLE and LINKAGE
P893675, P893657, P893972, P893595, P894659
10
3
17
1
1
1
18
6
12
13
18
2
19
11
11
3
7
15
9
5
4
4
20
1
8
11
16
14
12
To
Engine
21
22
Pekins
Diesel
Suzuki 970
Models
When attaching the throttle
link to the pedal, the pin (Item
No. 11) will be inserted in the
second hole from the top.
Front Of Vehicle
To Next Page
