2700623 Carburetor
(automatic transmission) 1......
2700622 Carburetor
(manual transmission) 1........
1 13310-53
FT0 :Valve set, piston 1........
2 09404-06433 :Clamp 1.................
3 13260-50
FT0 :Solenoid set 1............
4 13270-850
T0 :Screw set, idle adjust 1....
5 13250-70
DT0 :Float 1..................
6 13370-70
DT0 :Valve, needle 1...........
7 09491-92005 :Jet, main (auto. trans.) 1...
09491-92006 :Jet, main (mnl. trans.) 1...
8 09492-26002 :Jet, power (auto. trans.) 1..
09492-27010 :Jet, power (mnl. trans.) 1..
9 13240-60
CT0 :W eight set, pump 1.......
10 13251-77320 :Gasket, float bowl 1.......
11 13350-50
F00 :Chamber, depression 1....
12 02112-05107 :Screw 1.................
13 13415-85010 :Clip 1...................
14 13228-840
T0 :Element, thermo 1........
15 13275-63
CT0 :Screw, throttle adjustment
(auto. trans.) 1............
13275-851
T0 :Screw, throttle adjustment
(mnl. trans.) 1.............
16 13494-78420 :Spring 1.................
17 02112-34253 :Bolt 4...................
18 13320-66
CT0 :Valve set, power 1........
19 95550-85010 :Actuator, idle-up
(auto. trans.) 1............
95550-85500 :Actuator, idle-up
(mnl. trans.) 1.............
20 13372-70
D00 :Bolt (auto. trans.) 2.......
09137-05009 :Bolt (mnl. trans.) 2........
21 13384-78330 :Retainer , E-ring 1.........
22 13601-05148 :Bolt 4...................
23 13326-70
D00 :Spring 1.................
24 09404-06432 :Clamp 1.................
25 13564-63
CT0 :Sensor, throttle position 1..
26 13380-854
T0 :Gasket set (auto. trans.) 1.
13380-851
T0 :Gasket set (mnl. trans.) 1..
Ref.
No.
Part
No.
Description
No.
Req’d
No.
Req’d
Description
Part
No.
Ref.
No.

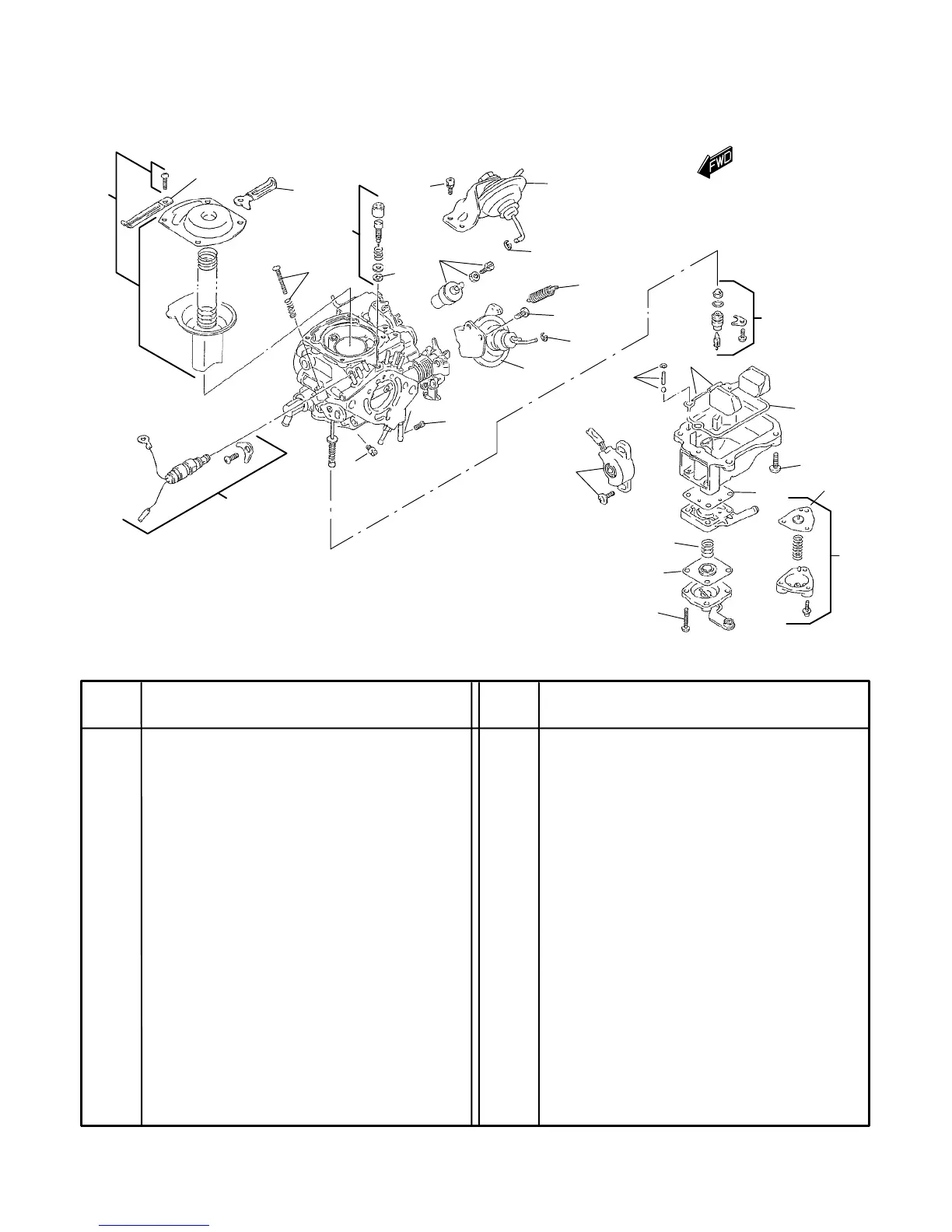

CARBURETOR (SUZUKI K6A)
1
2
24
15
3
26
4
20
19
21
14
23
12
13
11
8
7
6
25
17
16
26
18
22
10
5
9
26
26
: INDENTED PART NAMES INDICATE THESE PARTS ARE INCLUDED IN THE PRECEDING ASSEMBLY
All components are used with both the manual and
the automatic transmission unless otherwise
noted in the parts list shown below.
