MECHANICAL PTO
(SUZUKI 970 and PERKINS DIESEL)
The parts breakdown illustration was not
available at the time of this printing.

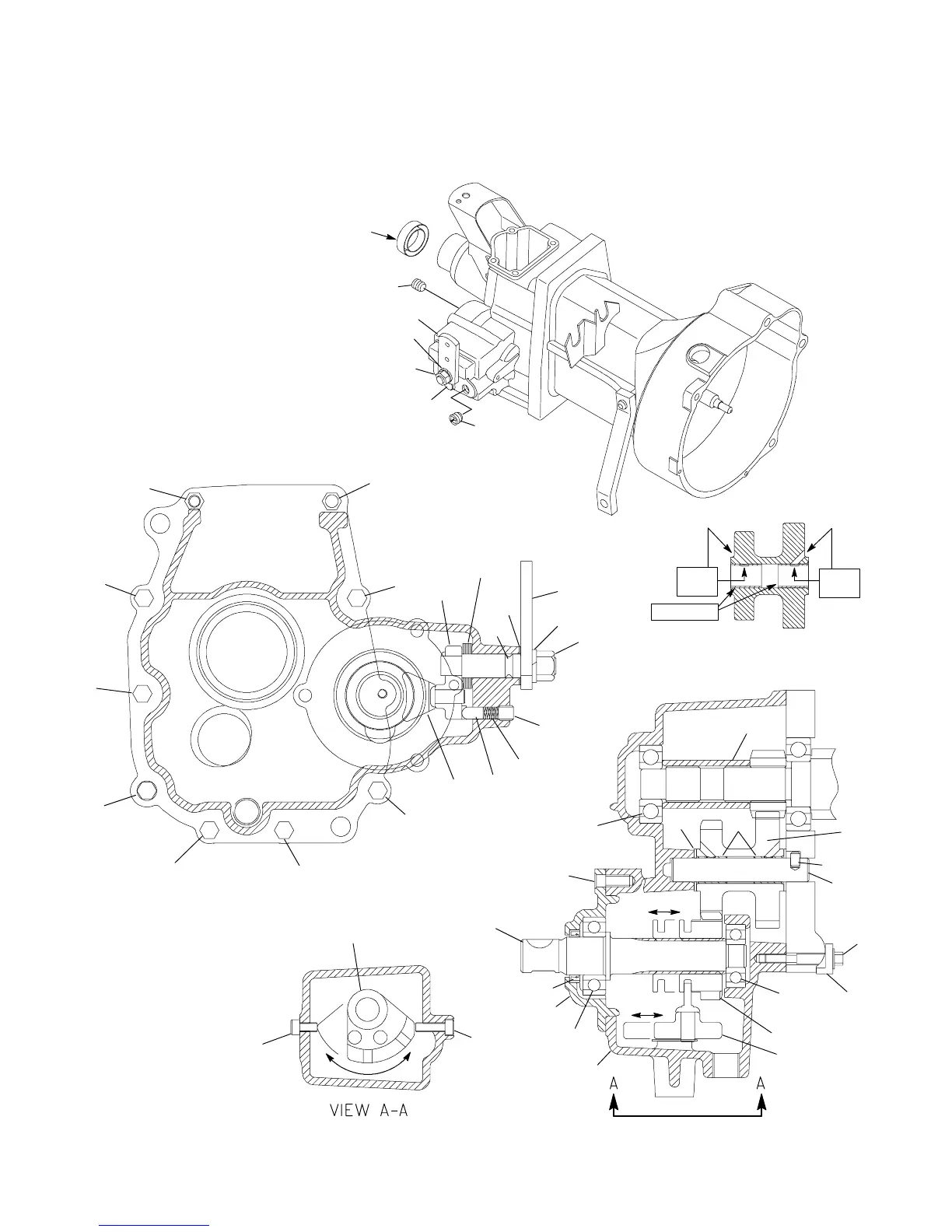

The isometric view of the transmission shown
at the right references the location of the PTO
housing. Please use the illustrations shown
below for individual PTO parts.
Transmission fluid capacity is 2.6 pints
(80W- 90 gear oil). Fill to bottom of threads of
oil fill plug hole, located on right side of PTO
housing.
26
20
1
3
22
30
31
28
13
2
7
23
33
21
19
25
24
6
12
5
Some of the parts shown
above are also referenced in
the illustrations shown below.
10
27
27
29
34
35
32
In reference to items 30, 31 & 32,
make sure oil holes in gear align
with oil holes in the bushings.
Oil
Holes
Oil
Holes
Bushings
38
38
8
4
9
27
11
20
1
3
10
16
17
18
9
15
14
9
9
9
9
9
