Cushman 898673 - Clutch Pedal and Cable

79

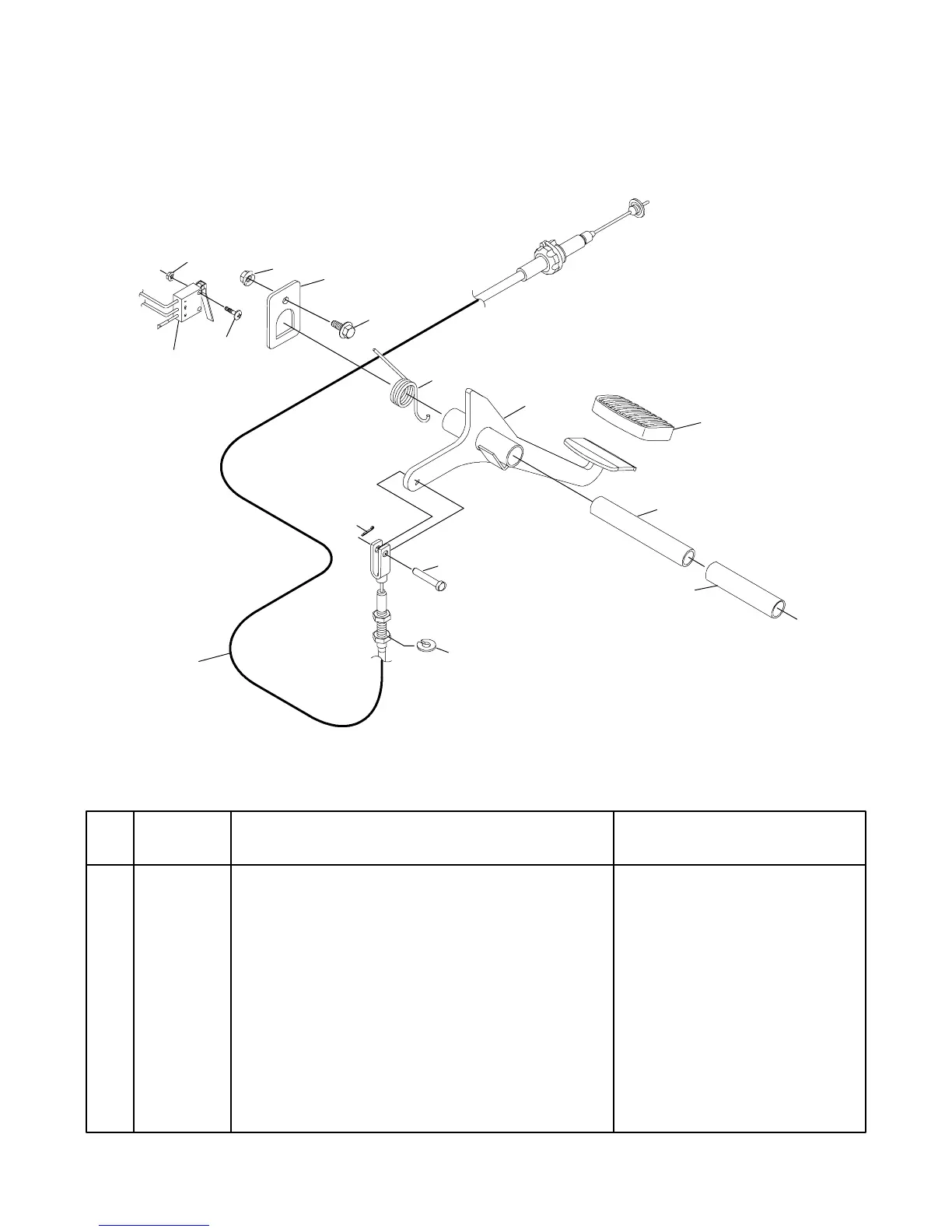

CLUTCH PEDAL and CABLE
(GASOLINE)
1 450453 Nut, M8-1.25 (G10.9) 1.......................
2 450510 Screw, M3-.50 x 20 2........................
3 306328 Pin, cotter , 3/32 x 3/4 1.......................
4 452388 Screw, M8-1.25 x 20 (8.8) 1...................
5 452424 Nut, flange M3-.50 2.........................
6 806714 Pin, clevis, 5/16 x 15/16 1....................
7 810152 Cover, pedal 1..............................
8 840725 Pin, brake pivot 1............................
9 840726 Bearing, brake pivot 1........................
10 842935 Tab, locking 1...............................
11 892933 Lever, clutch 1..............................
12 895013 Cable, clutch 1..............................
13 844202 Washer , slotted 4............................
14 890808 Switch, clutch interlock 1.....................
15 844611 Spring, torsion 1.............................
