Cushman 898673 - Fuel Pump (Suzuki K6 A)

To Next Page

To Previous Page

140

1 2701897 Fuel pump assembly 1.........................

2 2701898 Fuel filter 1...................................

3 2701899 Regulator Assembly 1.........................

4 15830--65H51 Fuel feed pipe 1..............................

5 15835--65H00 Fuel feed hose 1..............................

6 4120066 Fuel hose clip 2...............................

7 2702475 Bolt 2.......................................

Ref.

No.

Part

No.

Description Notes

No.

Req’d

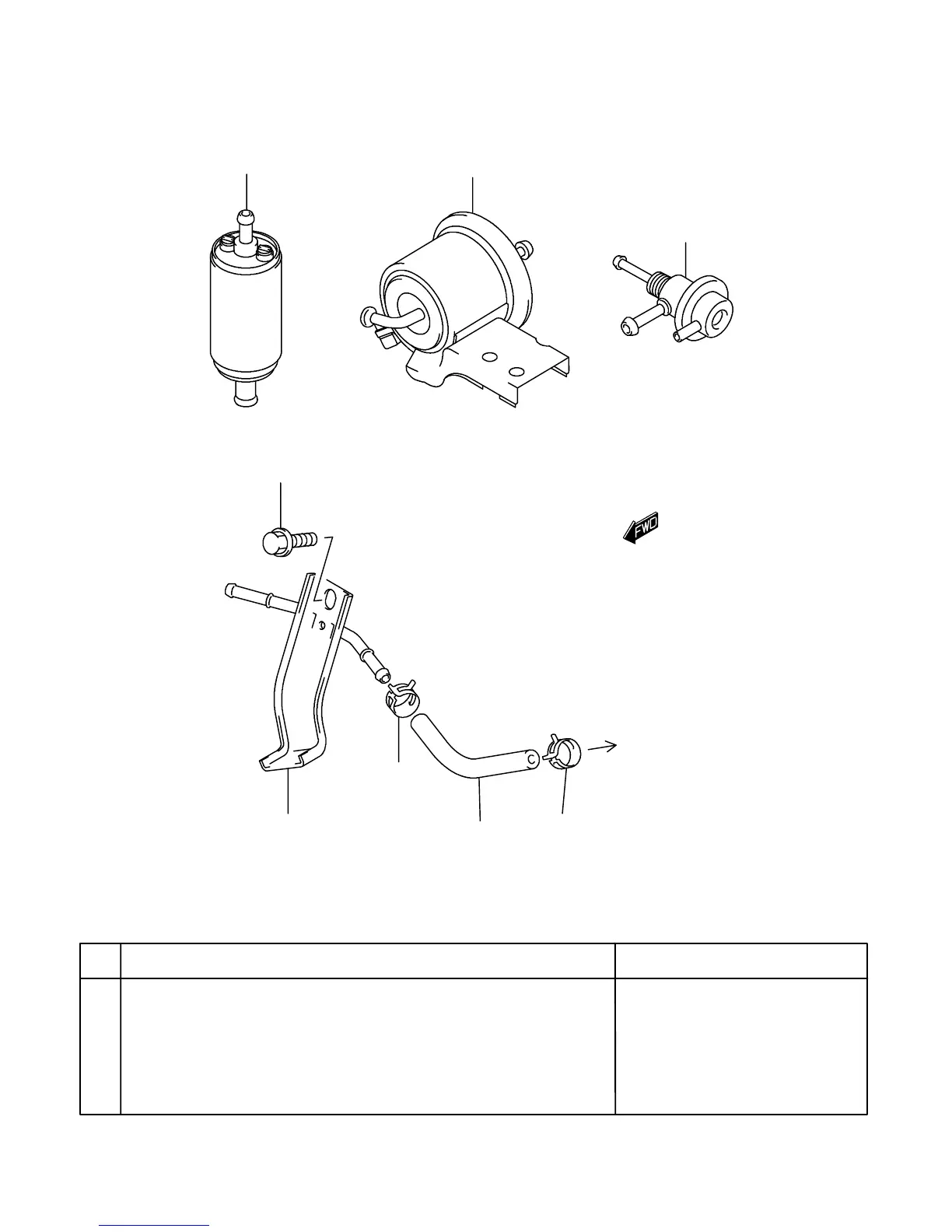

FUEL PUMP (SUZUKI K6A)

Front Of Vehicle

Delivery Pipe
