CONTROLS Cont.
12
Choke
Knob

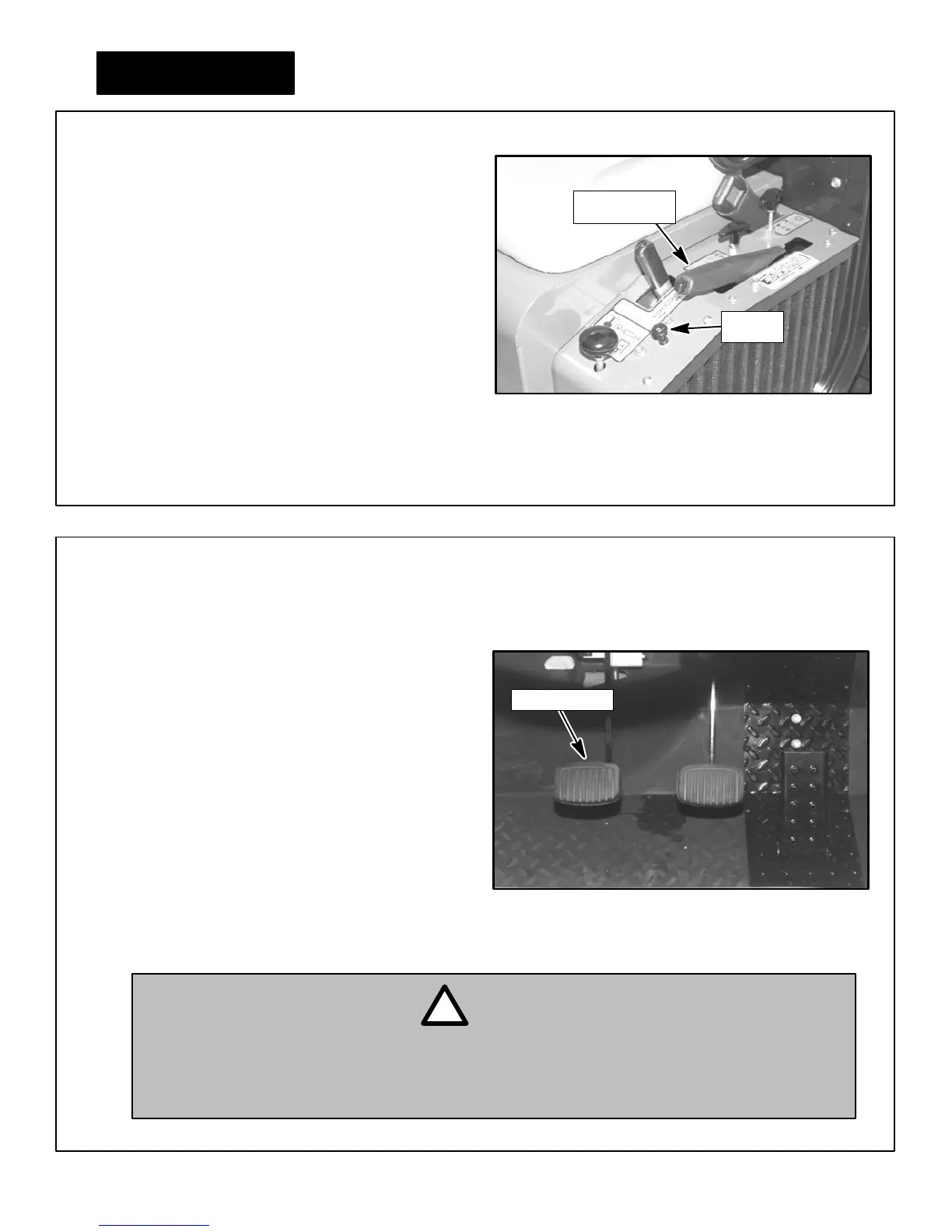

Figure 11
Park Brake Lever and Choke Knob
Park Brake
Lever
FOOT CONTROL PEDALS
If the engine will start without depressing the clutch
pedal:
• DO NOT operate the vehicle. The clutch interlock
system should be repaired immediately by your
authorized Cushman dealer.
The clutch pedal has to be depressed before shifting
into any of the gears. The clutch has a Safety Feature
called a “clutch interlock switch”. This switch pre-
vents the starter from operating unless the clutch is dis-
engaged (the clutch pedal is depressed).
CLUTCH PEDAL (Manual Transmission Only)
Clutch Pedal
Figure 12
Clutch Pedal Location
The clutch pedal has to be depressed:
: before starting the vehicle
: before shifting into any of the gears and
: before coming to a complete stop
DANGER
!
• Never start the engine unless the clutch pedal is depressed (pushed down). If the vehicle is in
any gear other than neutral, with the clutch pedal not depressed and the engine is started, the
vehicle will lurch forward or backward depending which gear the vehicle is in. This lurching
could cause serious personal injury or death.
The park brake lever is located to the left side of the
drivers seat. To engage the brake, pull up on the lever
until park brake is applied.
PARKING BRAKE LEVER
To release, while slightly pulling up on the handle, push the button at the end of the lever and while holding the button in,
lower the lever to it’s original position (See Fig. 11).
• Parking brakes are not automatically applied. Make
sure and set the park brake when leaving the
vehicle.
Thechokeisusedtoassistthestartingofacold
engine. Pull up on the choke knob and hold in the full
or partially open position. When the engine has
warmed up and is running smoothly release the choke
knob (the choke knob is spring loaded in the open posi-
tion, it will return to its normal position when released)
(See Fig. 11).
CHOKE (Suzuki 970 engines Only)
