SERVICE & MAINTENANCE Cont.
42
Driv e Transmission (con’t.)
Automatic T ransmission
Check transmission fluid level every 100 hours (or 3 months).
Change transmission fluid every 600 hours or (12 months).
T ransmission Capacity: 3.7 qts. (4.2 L)
Recommended Lubricant: Mercon/Dexron II
To drain the transmission fluid, remove the drain plug located on the bottom left, rear corner of the transmission pan.

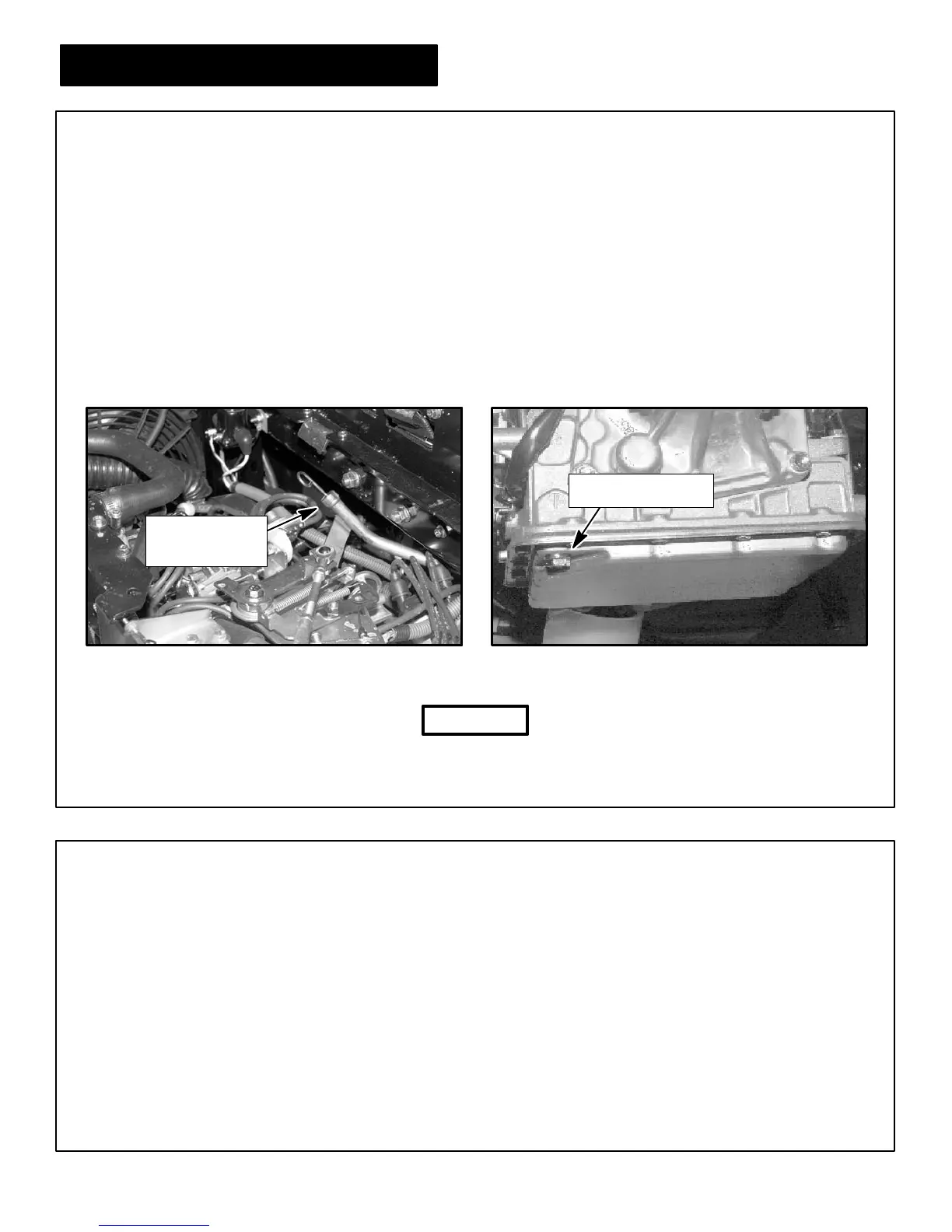

DrainPlugAutomatic
Transmission
Figure 61
Automatic T ransmission Drain Plug
(Suzuki K6A Engine)
To check the transmission fluid the engine must be running. Place the gear selector in “P” Park, apply the park brake
and start the engine.
With the engine running, remove the dipstick and wipe it with a clean rag. Insert the dipstick into the extension tube
until it contacts the tube. Remove the dipstick and read the fluid level.
Fluid must be kept between the two marks on the dipstick. If necessary, add fluid to obtain the proper level. Do Not
overfill. Add fluid using the extension tube as the fill tube.
Figure 60
Automatic T ransmission Dip Stick
NOTICE
• Most communities have special sites to dispose of used petroleum based
products such as transmission fluid, engine oil and differential fluid. Please
use an appropriate container to catch any fluids and dispose of properly.
Transmission
Fluid Dipstick And
Fill Tube
ACCESSORIES, P.T.O. & HYDRAULIC ATTACHMENTS
and 5th WHEEL IMPLEMENTS
There are numerous accessories, attachments and implements available for your vehicle.
For information and availability on these accessories and others, contact your local Cushman Dealer.
Some accessories include:
High/Low Hydraulics System
Steel Cab Sets, Steel Door Sets
Heater/Defroster
Upper ROPS W/Seatbelt
Dump Boxes and Platform Beds
Also attachments and implements like:
the Quick Aerator, Core Harvester , TD 1500 & 2000 Top Dressers
the Vicon Spreader, T urf Master Sprayers, Seed & Fertilizer Spreaders and more.......
