Cushman 898673 - Cylinder Block, Oil Pan and Gasket

158
1 11200-80001 Block, cylinder 1...........
2 09241-30009 :Plug (OD:30) 3...........
3 09246-20006 :Plug (OD:20) 2...........
4 09246-05006 :Plug, oil gallery 1.........
5 09246-06002 :Plug, oil gallery 3.........
6 01550-10603 :Bolt 10..................
7 11219-85200 :Guide, oil level gauge 1....
8 09103-10063 Bolt (10 x 115) 2...........
9 01421-10403 Stud bolt 1................
10 01421-10503 Stud bolt 1................
11 08316-10103 Nut 2....................
12 04211-13149 Pin 2.....................
13 11221-73000 Plate, cylinder block 1......
14 11229-73000 Gasket 1.................
15 02162-06103 Bolt 6....................
16 11311-79100 Plate, clutch hsng. upper 1..
17 11320-77201 Plate, clutch hsng. lower 1..
18 16910-85550 Gauge, oil level 1..........
19 37820-82001 Switch, oil pressure 1......
20 16510-82703 Filter, oil 1................
21 11241-73003 Stand, oil filter 1...........
22 11510-85201 Pan, oil 1.................
23 09117-06059 Bolt (6 x 16) 16............
24 01411-06163 Stud bolt 2................
25 08316-10063 Nut 2....................
26 09247-12101 Plug, oil drain 1...........
27 09168-12018 Gasket 1.................
28 16520-79101 Strainer, oil pump 1........
29 09280-16005 O-ring 1..................
30 01570-06163 Bolt 2....................
Ref.
No.
Part
No.
Description
No.
Req’d
No.
Req’d
Description
Part
No.
Ref.
No.
: INDENTED PART NAMES INDICATE THESE PARTS ARE INCLUDED IN THE PRECEDING ASSEMBLY

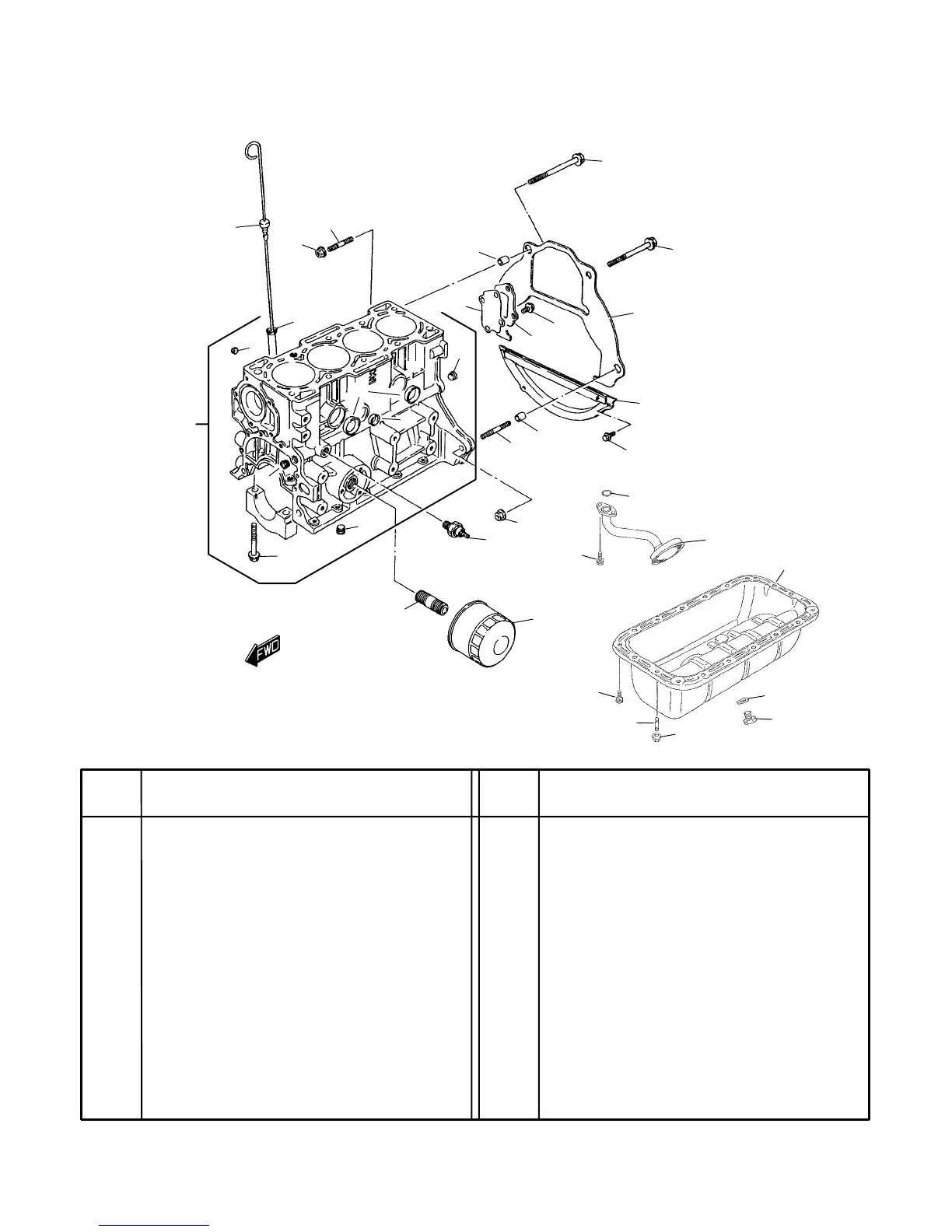

CYLINDER BLOCK, OIL PAN and GASKET
(SUZUKI 970)
3
18
5
4
12
11
8
8
9
10
5
6
7
1
13
14
15
2
12
5
15
17
11
19
21
20
16
29
28
30
22
23
24
25
27
26
Front Of Vehicle
