OPERATING REMOTE HYDRAULICS
44
EQUIPMENT
The following information will tell you about the different controls and functions used when operating
the P.T.O. and hydraulics system. These features are used when operating the accessories and
implements often used with this vehicle.

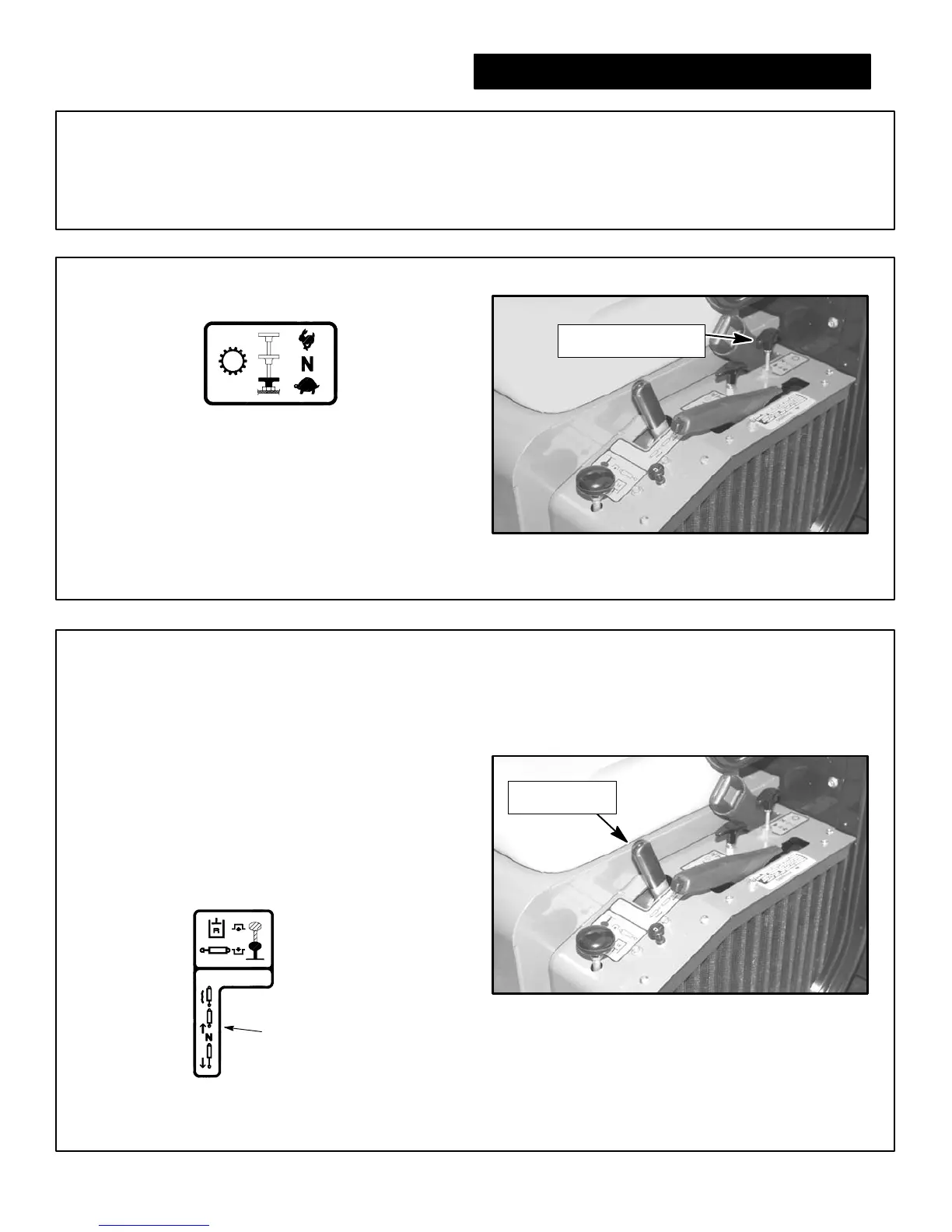

TWO--SPEED DIFFERENTIAL
The two-speed differential has a high and low operating
range, as well as a neutral position.
Shift the two--speed differential ONLY when the vehicle
is stopped. Pull the control handle all the way UP to
operate in the high range, push it all the way DOWN to
operate in the low range.
The two--speed differential control is located on the con-
trol panel to the left of the operator’s seat (See Fig. 64).
Figure 64
Two-speed Differential Control Handle
844177
POWER HYDRAULIC LIFT SYSTEM
The power hydraulic lift system is referred to as a “live” system. This means the hydraulic pump operates whenever
the engine is running.
Figure 65
Hydraulic Lift Control Handle
Hydraulic Lift
Lever
Push the lever forward and to the right to latch it in the
float position (the float position allows the accessory
being used to follow the contour of the land, the acces-
sory, when in the lowered position, will “float” over the
ground even in undulating terrain).
Pull back on the lever to extend the hydraulic cylinder ram (raise the dump box) push forward on the lever to retract
the hydraulic cylinder ram (lower the dump box).
The hydraulic lift is used when the vehicle is equipped
with a dump box or similar accessory.
844179
The hydraulic lift control lever is located on the control
panel to the left of the driver’s seat (See Fig. 65).
Decal Shows
Lever Positions
and Their Function
Two-Speed
Differential Control
