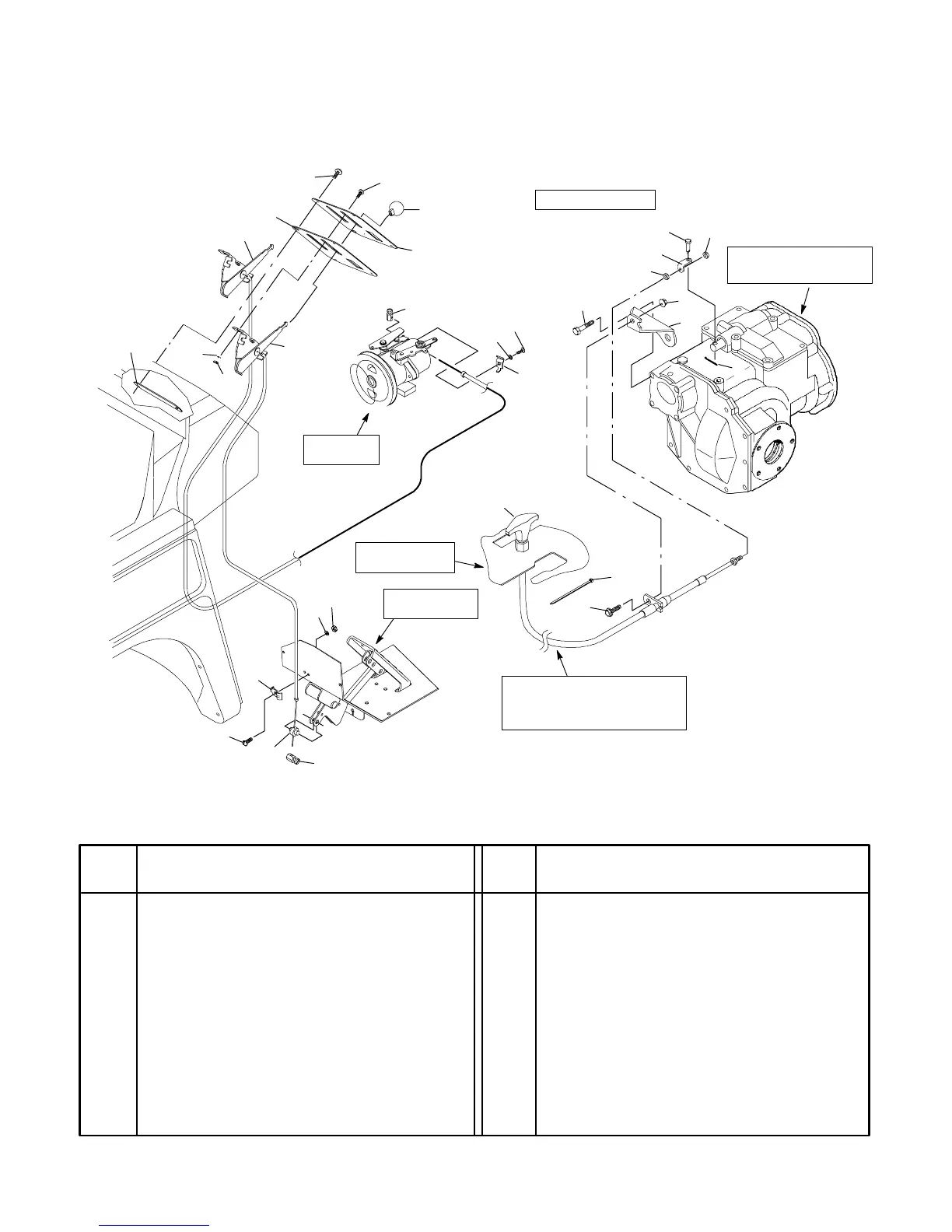

HAND CONTROLS, GOVERNOR and THROTTLE (GASOLINE)
Reference
Control Panel
Reference
Foot Throttle
Reference D ifferential
(11.16:1 & 14.21:1)
Apply Loctite 242
*
23
1 111898 Clamp, cable 2.................
2 120052 Lockwasher , #10 6..............
3 132520 Nut, #10-32 2..................
4 306328 Pin, cotter 29/32 x 3/4 1.........
5 306514 Screw, #10-32 x 1/2 2...........
6 306531 Nut, #10-24 5..................
7 320107 Tie, cable 7 1/2 ” (190.5 mm) 1...
8 450452 Nut, M6-1.00 (G10.9) 1..........
9 452378 Screw, M6-1.00 x 20 1...........
10 800271 Screw, #10-24 x 1/2 (G5) 4.......
11 800582 Screw , 1/4-20 x 3/4 4............
12 806703 Pin, clevis 5/16 x 31/32 1........
13 817104 Stop, wire 2....................
14 827821 Knob 2........................
15 828049 Cable, control (hand throttle) 1....
16 837043 Bracket (cable to differential) 1....
17 841264 Panel, left hand (turf) 1..........
18 843607 Bushing, throttle cable 1.........
19 844116 Decal, left hand dash (turf) 1.....
20 844130 Cable, governor control 1........
21 893067 Cable, control (hi-lo shift) 1.......
22 894743 Nut, double 2...................
23 307776 Screw, 3/8-16 x 2 3/4 2..........
24 836841 Bracket, hi-lo shift cable mount 1.
Ref.
No.
Part
No.
Description
No.
Req’d
No.
Req’d
Description
Part
No.
Ref.
No.
11
10
14
19
17
20
22
2
6
15
12
16
8
21
4
9
7
6
2
1
5
13
18
Must Attach Control Cable To
Park Brake Cable w/Cable Tie
To Avoid Coming In Contact
With The Muffler
893439
24
Reference
Governor
3
*
13
1
2
5
3
*
To Next Page
