Cushman 898673 - Transmission Tubes, Oil Pump, Solenoids and Shift Switch

122

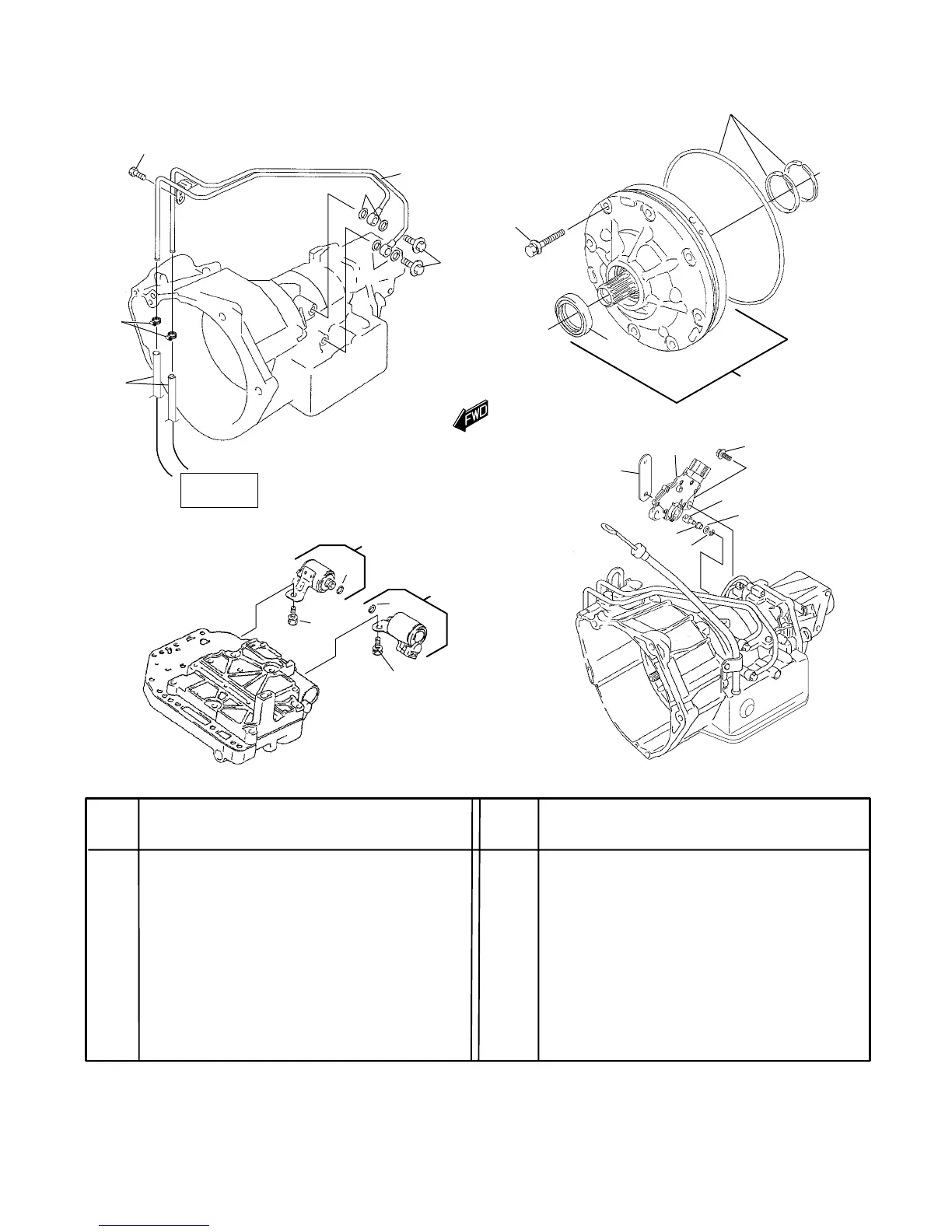

TRANSMISSION TUBES, OIL PUMP, SOLENOIDS and SHIFT SWITCH
(AUTOMATIC TRANSMISSION) (SUZUKI K6A)
Ref.
No.
Part
No.
Description
No.
Req’d
No.
Req’d
Description
Part
No.
Ref.
No.
• INDENTED PART NAMES INDICATE THESE PARTS ARE INCLUDED IN THE PRECEDING ASSEMBLY
7
6
5
8
1 2702843 Pipe assembly, oil 1............
2 2702849 Bolt 1........................
3 2702847 Union bolt 2...................
4 2702845 Gasket 4.....................
5 2702765 Pump, oil 1...................
6 2702766 :Seal, oil pump 1..............
7 2702767 Bolt, oil pump 8................
8 2702768 Ring set, oil pump seal 1.......
9 2702822 Solenoid, direct clutch 1........
10 2702823 :O-ring 1.....................
11 2702824 Solenoid, 2nd brake 1..........
12 2702823 :O-ring 1.....................
13 2702764 Bolt 2........................
14 2702885 Switch, shift 1.................
15 2702886 Bolt 1........................
16 2702881 Joint, transmission shifter 2.....
17 2702882 Bushing 1....................
18 2702883 Washer 1.....................
19 2702884 E-ring 1......................
20 842740 Lever, shifter 1.................
21 825624 Clamp, hose 2..................
22 826590 Hose, 5/16 i.d. As Req’d..........
9
14
15
10
11
12
13
13
2
1
3
4
4
21
22
To
Oil Cooler
20
16
17
18
19
Front Of Vehicle
