Cushman 898673 - Wheel Size Measurement; Front and Rear Tires for Turf Models

78
• INDENTED PART NAMES INDICATE THESE PARTS ARE INCLUDED IN PRECEDING ASSEMBLY
¡¡ Obtain locally
Ref.
No.
Part
No.
Description
No.
Req’d
No.
Req’d
Description
Part
No.
Ref.
No.
1 894763 Tire and wheel (front) 2.........
2 841433 :Wheel, 10.00 x 7.50, five bolt 1..
3 886735 :Stem, valve 1.................
4 ¡¡ :Tire, 20 x 10.00 - 10, multi--rib 1..
5 800909 Nut, wheel mount 20............
6 894762 Tire and wheel (rear) 2..........
7 ¡¡ :Tire, 24 x 13.00 - 12, Titan ultra trac
or approved equal (rear) 1.......
8 841434 :Wheel, 12.00 x 10.50 1.........
9 886735 :Stem, valve 1.................

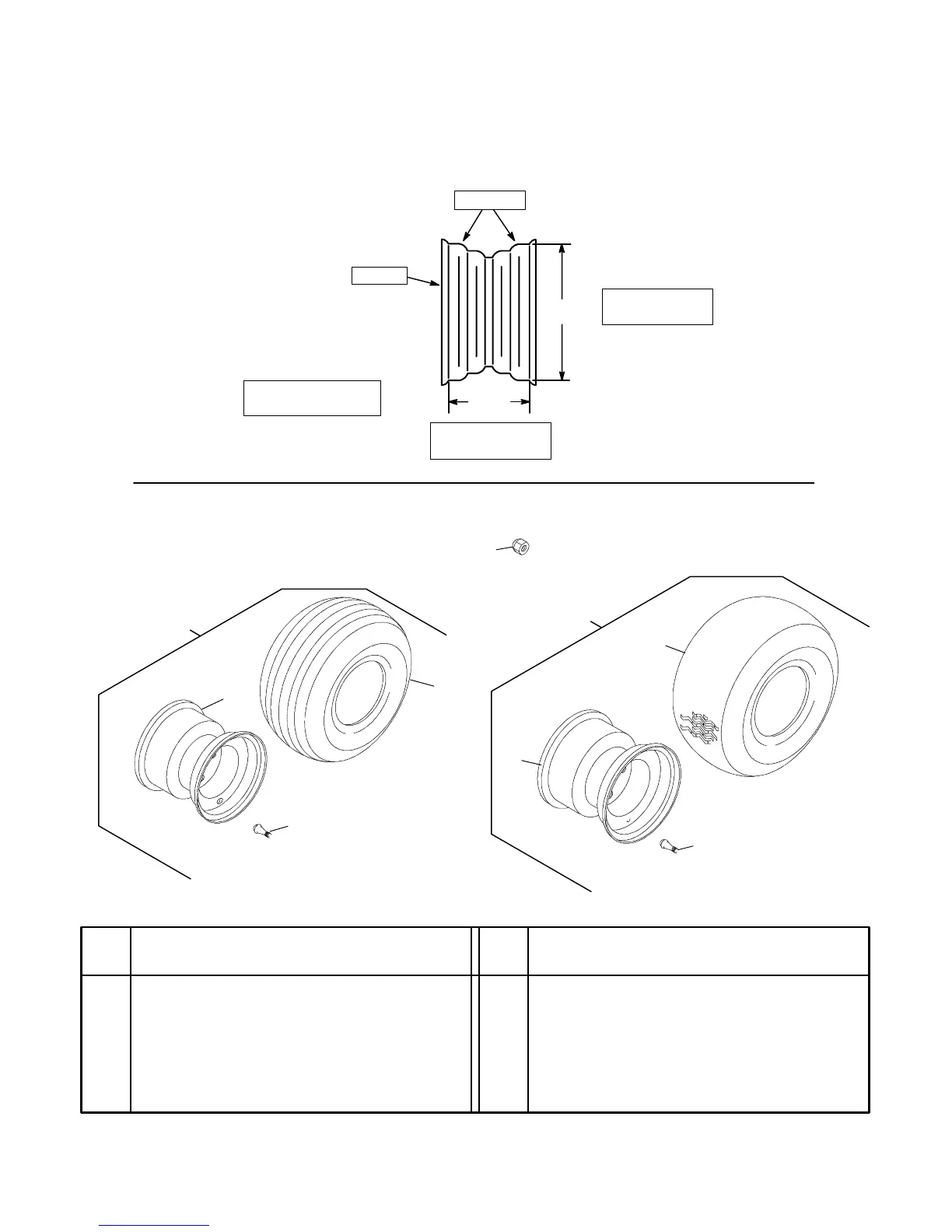

WHEEL SIZE MEASUREMENT
Wheel size is determined by measuring the wheel at the bead seat.
The first number is the wheel diameter measured at the bead seat.
The second number is the wheel width measured at the bead seat.
The illustration below shows an example of how to measure the wheel to determine tire size.
7.50”
10.00”
Bead Seat
(First Number)
Wheel Diameter
(Second Number)
Wheel Width
Wheel
Shown For Reference
Only
TIRES
20 x 10.00 - 10 Multi-Rib (front)
24 x 13.00 - 12 Titan Ultra T rac (rear)
or approved equal
(Obtain Locally if only replacing the tire)
FRONT and REAR TIRES FOR TURF MODELS
P894262, 893492, 894338
1
2
4
3
5
8
Wheel Mount Nuts Are The
Same For All Wheels
7
9
6
