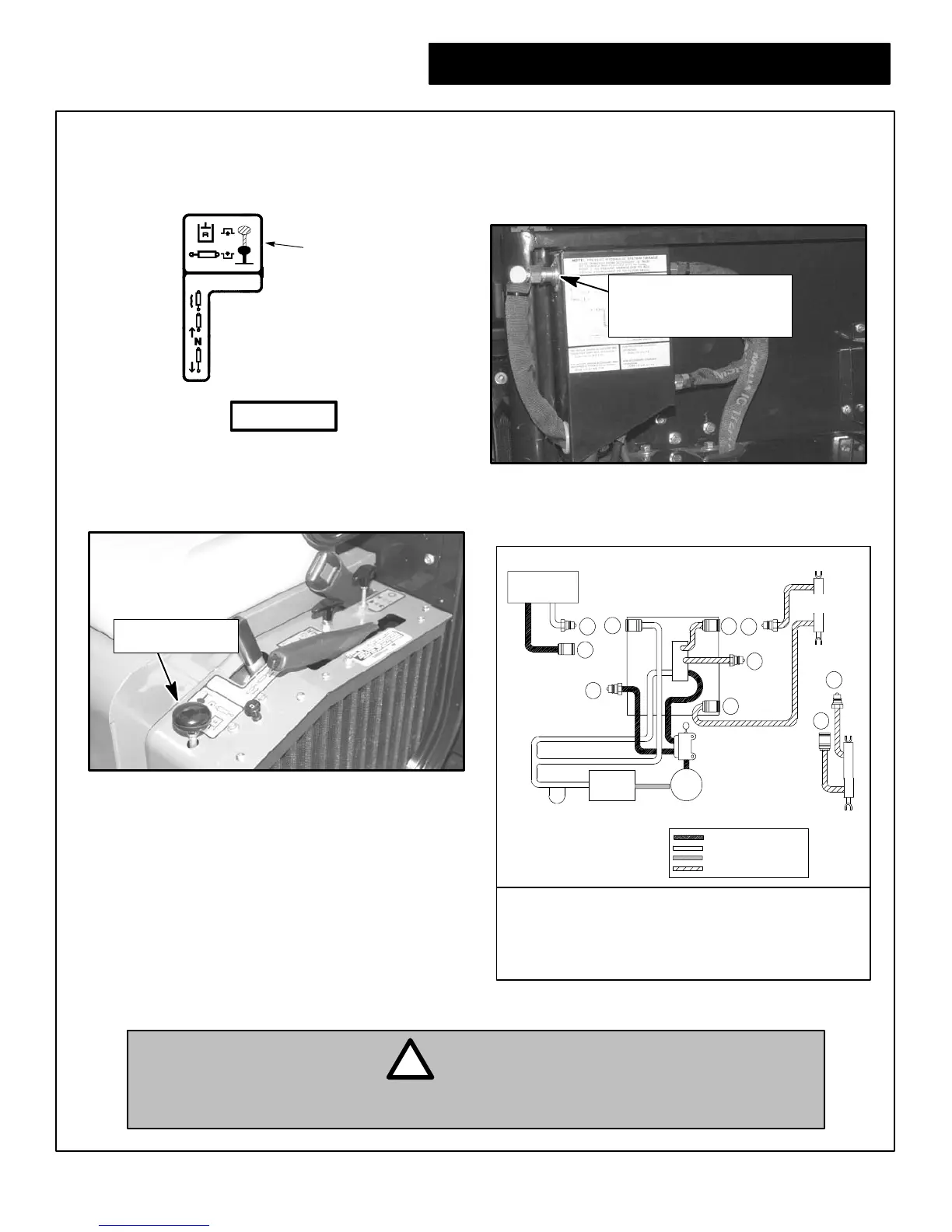

OPERATING REMOTE HYDRAULICS Cont.
45
The hydraulic system has a remote selector valve located at the front of the control panel, to operate accessories
such as the Core Harvester¥ or Top Dresser.
REMOTE HYDRAULICS
NOTICE
• The “DOWN” position directs hydraulic oil to the stan-
dard vehicle hydraulic lift system.
• The “UP” position directs hydraulic oil to the left side of
the hydraulic panel for remote hydraulic system use.
• The vehicle is equipped with a hydraulic system to operate equipment. During operation,
AL WAYS stay clear of moving parts to prevent injury.
WARNING
!
844179
Decal Shows
Remote Hydraulic
Functions
Figure 67
Remote Hydraulics Closed Loop Shown
When the remote hydraulics are not connected to equip-
ment, the male and female quick connectors must be con-
nected to form a closed loop (See Fig. 66).
It is extremely important that the hose nipple be inserted
into the quick connector to form a closed loop as shown.
This will prevent dirt from entering the system and prevent
the hydraulic system from over-heating, leading to system
failure if the remote selector knob is accidentally pulled up
with the accessory removed.
Figure 66
Remote Hydraulics Control Handle
10
9
7
8
14
2
3
5
6
Accessory
Cylinder
Selector
Valve
Lift
Valve
Motor Driven
Accessory
Hydraulic
Tank
Hydraulic
Pump
PRESSURE
RETURN
SUCTION
PRESSURE OR RETURN
For Motor Driven Accessory And
Truckster Dump Box Operation:
Plug 1--4, 2--3, 8--9, 7--10.
For Motor Driven Accessory And
Inoper a ble Truckster Cylinder:
Plug 1--2, 3--4, 8--9, 7--10.
For T ruckster Cylinder
Operation:
Plug 1--4, 2--3, 7--8.
For Accessory Cylinder
Operation:
Plug 1--5, 2-- 6, 4-- 3, 7-- 8.
Truckster
Cylinder
Filter
Make Sure Hose Is Inserted
Into The Quick Coupler
When An Accessory
Is Not Being Used.
Remote Hydraulics
Control
To Next Page
