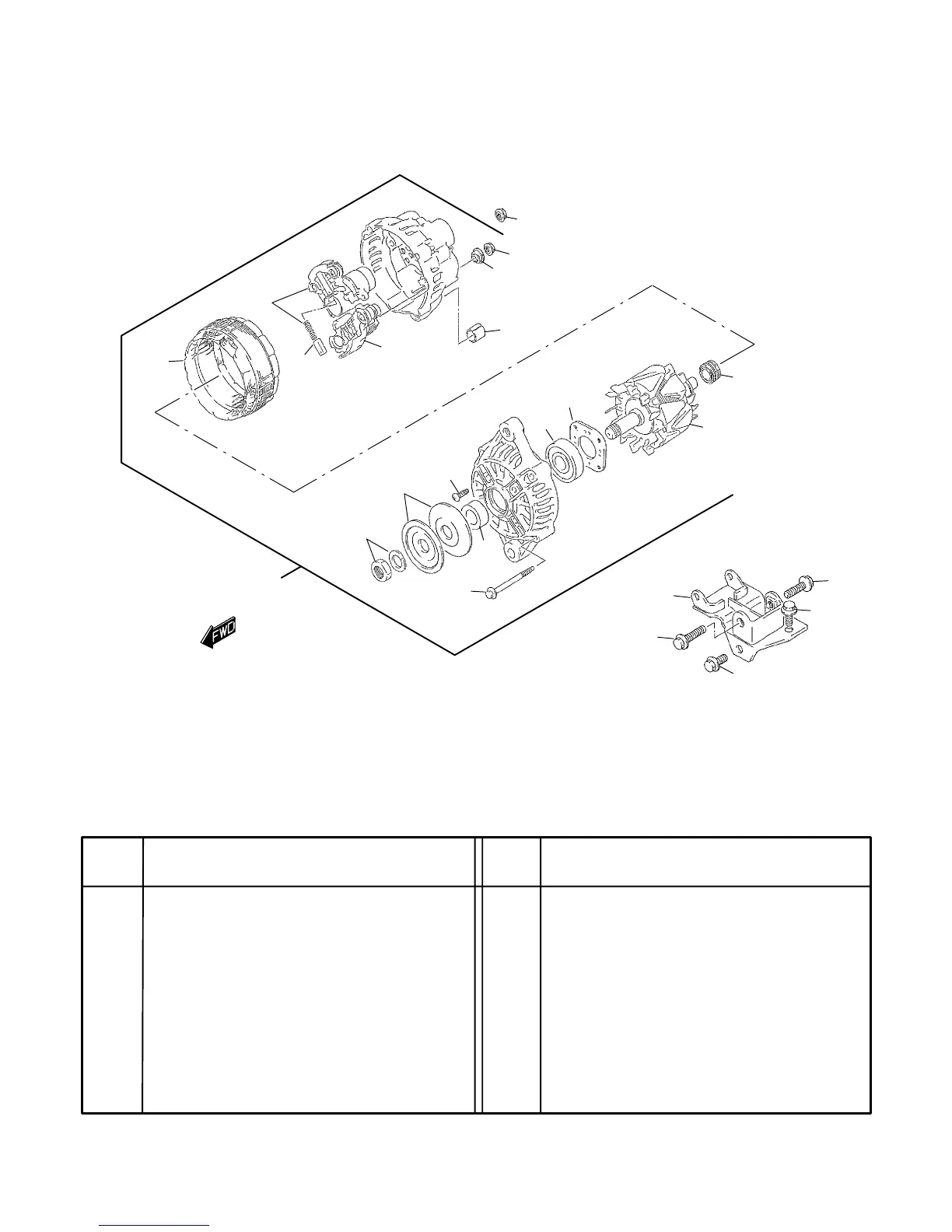

ALTERNATOR (SUZUKI 970)
Ref.
No.
Part
No.
Description
No.
Req’d
No.
Req’d
Description
Part
No.
Ref.
No.
• INDENTED PART NAMES INDICATE T HESE PARTS ARE INCLUDED IN THE PRECEDING ASSEMBLY
1 31400-60
C11 Generator (alternator) 1....
2 31771-82
C20 :Pulley 2.................
3 31775-50
F20 :Nut 1....................
4 31792-51
F10 :Spacer 1................
5 31582-50
F20 :Bearing 1................
6 31585-60
A10 :Retainer, bearing 1........
7 31586-60
A10 :Screw 1.................
8 31651-86520 :Screw kit 1...............
9 31710-82
C20 :Rotor 1..................
10 31612-60
A10 ::Bearing, rear 1..........
11 31410-85320 :Stator 1.................
12 32500-60
C11 :Regulator 1..............
13 31631-60
F30 ::Brush set 2.............
14 31621-70
D11 :Rectifier 1...............
15 31514-82630 :Insulator 1...............
16 08316-10063 :Nut 1....................
17 31616-82
C20 :Bushing 1...............
18 08316-10063 Nut 1....................
19 01550-08303 Bolt 2....................
20 95110-66
C00 Bracket 1.................
21 01550-08163 Bolt 3....................
10
11
12
13
14
17
15
16
18
9
6
5
7
2
3
8
19
21
20
19
21
4
1
Front Of Vehicle
To Next Page
