Cushman 898673 - Water Pump (Suzuki K6 A)

To Next Page

To Previous Page

137

Ref.

No.

Part

No.

Description

Notes

No.

Req’d

1 4120074 Pump, water 1.................................

2 4119965 :O-- ring 1.....................................

3 2702470 Bolt 4........................................

: INDENTED PARTS NAME INDICATE THESE PARTS ARE INCLUDED IN THE PRECEDING ASSEMBLY.

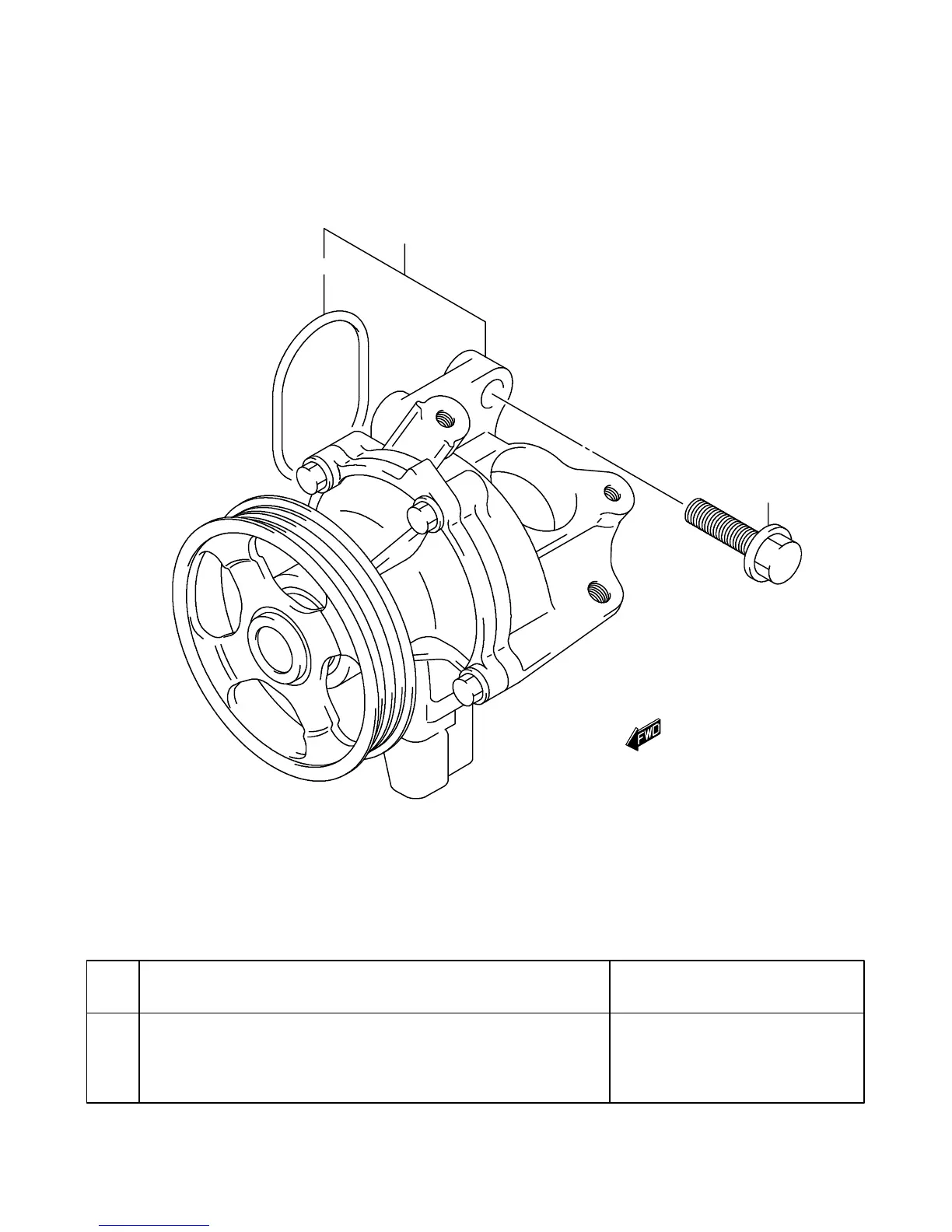

WATER PUMP (SUZUKI K6A)
