Cushman 898673 - Park Brake Lever and Cable

70
Reference
Lower Rops
(Part No. 893145)
Reference
Console Panel
P893446, P2701428, P2700600
4
6
4
2
2
1
15
11
3
7
12
10
2
4
2
14
9
8
8
13
5

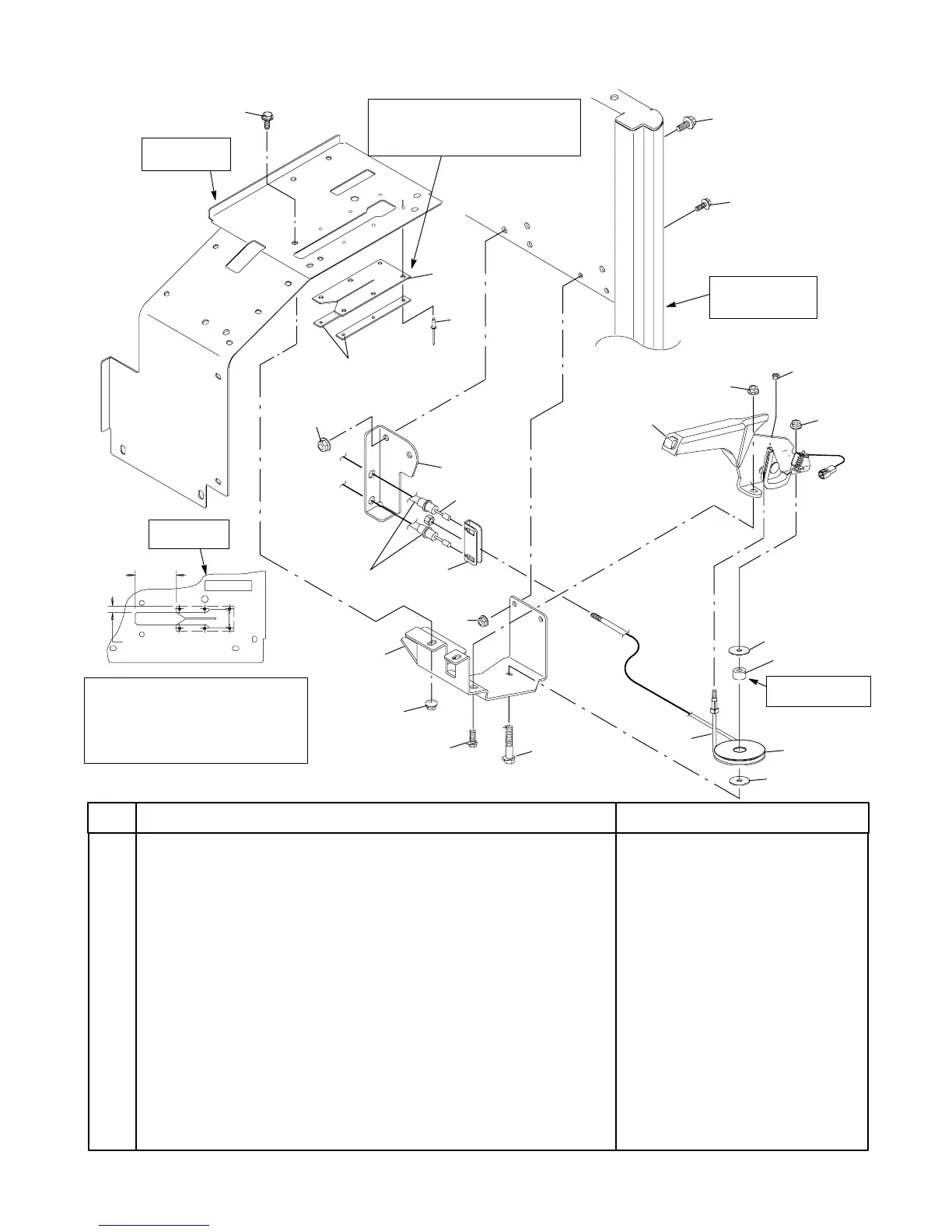

PARK BRAKE LEVER AND CABLE
16
Apply Loctite 592
To Bushing O.D.
The Neoprene Cover, Pop Rivets and
Mounting Strips are Generally used on
Vehicles With Cab Sets but can also
be used on Vehicles Without Cabs.
19
18
17
To Install Neoprene Cover and Hard-
ware, Use Neoprene Cover as a Tem-
plate, Mark and Drill Six (6) .140” (3.5
mm) Dia. Holes. Position Neoprene
Cover and Secure Using Mounting
Strips and Rivets as Shown.
2.85”
(72.4 mm)
.44”
(11.2 mm)
Reference
Console Panel
1 450377 Nut, staytite, M6-1.00 1.........................
2 450453 Nut, M8-1.25 (G10.9) 6........................
3 450454 Nut, M10-1.50 (10.9) 2..........................
4 452388 Screw, M8-1.25 x 20 (G8.8) 5...................
5 452391 Screw, M8-1.25 x 40 (8.8) 1.....................
6 452398 Screw, M10-1.50 x 20 (8.8) 2....................
7 800446 Locknut, 5/16-24 1.............................
8 809152 W asher, 5/16 x 1 3/16 2.........................
9 827182 Pulley, 3” dia. (76 mm dia.) 1....................
10 845134 Bracket, park brake lever 1......................
11 843158 Bracket, park brake cable 1.....................
12 843356 Equalizer, park brake 1.........................
13 843359 Bushing, park brake 1..........................
14 845133 Cable, park brake 1............................
15 894317 Lever, park brake 1.............................
16 893583 Cable, park brake (to rear brakes) 2..............
17 133741 Rivet, pop (.12 .5 clsd. end) 6...................
18 2701335 Mounting, park brake 1.........................
19 2701336 Cover, parking brake 1..........................
Ref.
No.
Part
No.
Description
Notes
No.
Req’d
