Cushman 898673 - Hydraulic Lift System

85

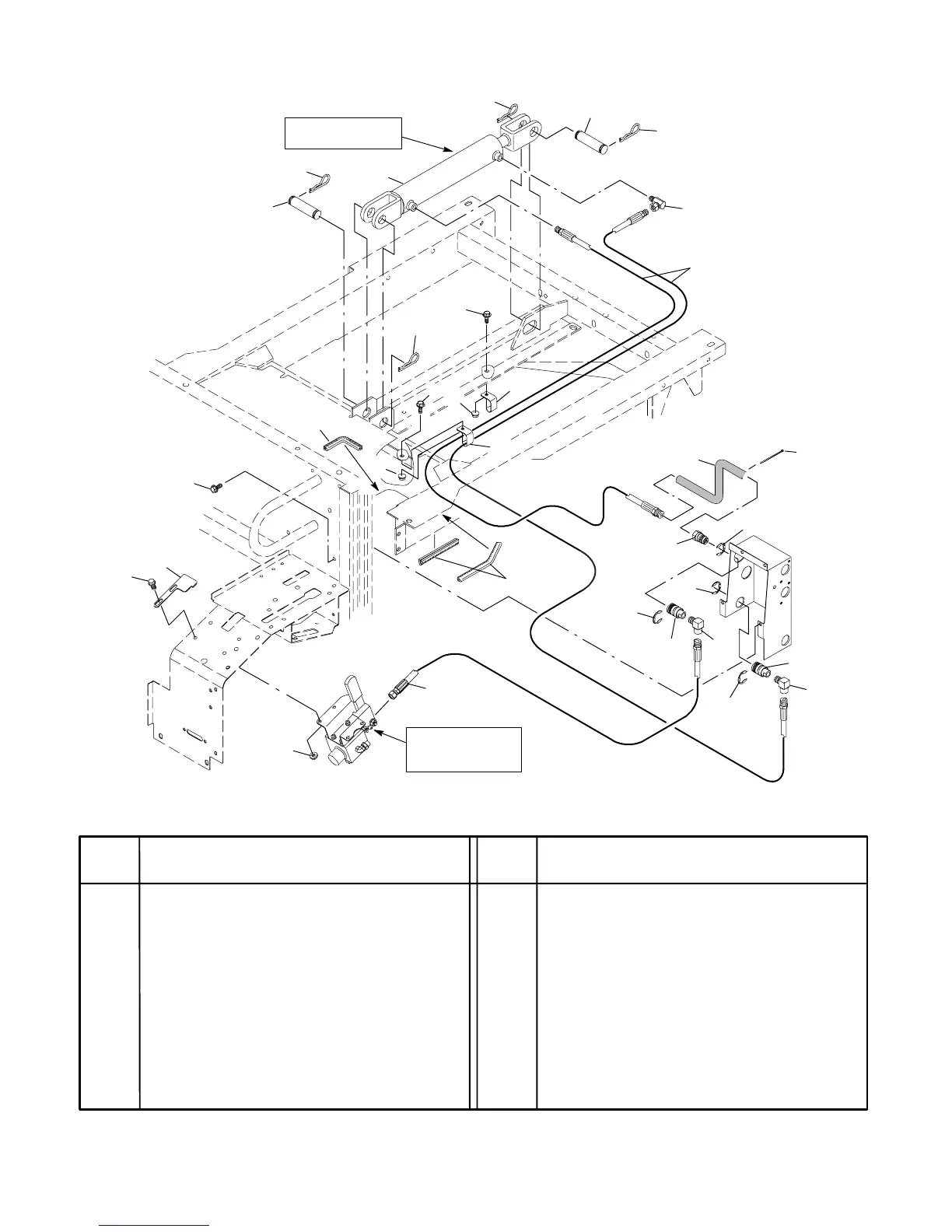

HYDRAULIC LIFT SYSTEM
1 452378 Screw, M6-1.00 x 20 2...........
2 450452 Nut, M6-1.00 (G10.9) 2..........
3 450453 Nut, M8-1.25 (G10.9) 4..........
4 800930 Screw, M8-1.25 x 16 (8.8) 8......
5 823119 Adapter, 90E 1.................
6 882993 Cylinder, lift 1..................
7 809265 :Pin, hair 4.....................
8 830810 :Pin, clevis 2...................
883236 :Kit, seal 1.....................
884574 :Kit, seal 1.....................
886001 :Kit, seal 1.....................
9 832408 Coupler half, male 1.............
10 832409 Coupler half, female 2...........
11 832414 Ring, retaining 4................
12 835101 Fitting, hydraulic 90E 2..........
13 832900 Hose, hydraulic, 1/4 x 38” 2......
14 844051 Plate, float latch 1...............
15 821893 Trim, push-on As Req’d...........
16 844598 Hose, hydraulic, 1/4 x 30” 1......
17 817320 Clamp, hose 2..................
18 320107 Tie, cable 7 1/2” (190 mm) 2.....
19 840877 Sleeve, nylon 1.................
Ref.
No.
Part
No.
Description
No.
Req’d
No.
Req’d
Description
Part
No.
Ref.
No.
1
7
7
7
7
8
8
5
13
4
4
3
16
9
11
11
11
11
10
10
12
12
6
2
2
14
17
Reference
Hydraulic Control
Valve
893447
18
19
15
15
1
17
: INDENTED PART NAMES INDICATE THESE PARTS ARE INCLUDED IN THE PRECEDING ASSEMBLY.
: Not Illustrated.
*
*
*
*
Seal Kits 883236,
884574 & 886001
