Cushman 898673 - Exhaust System (Diesel)

61

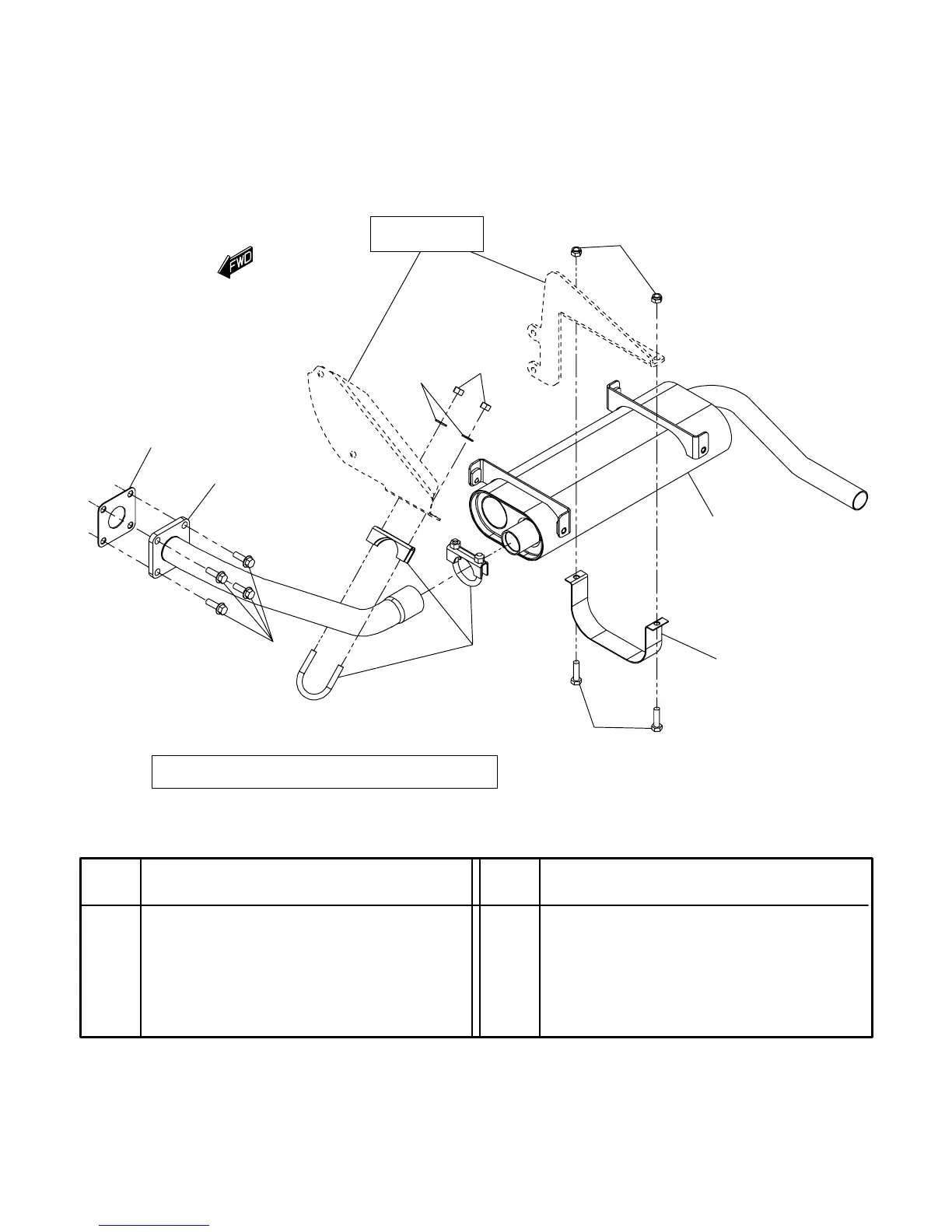

EXHAUST SYSTEM (DIESEL)
1 103867 Washer, 5/16 2.................
2 450193 Screw, M8-1.25 staytite 2.......
3 450378 Locknut, M8--1.25, staytite 2.....
4 452389 Screw, M8--1.25 x 25 4..........
5 4119866.8 Muffler ay 1..................
6 2703800.8 Tube, exhaust inlet 1..........
7 841982 Clamp, tubing 2................
8 842234 Gasket, exhaust 1..............
9 838295.8 Strap, muffler hanger 1.........
Ref.
No.
Part
No.
Description
No.
Req’d
No.
Req’d
Description
Part
No.
Ref.
No.
3
1
2
7
9
5
5
6
8
Referenced From
Power Assembly
NOTE: TAILPIPE TO BE 0.5” FROM FENDER.
TAILPIPE OUTLET TO BE PARALLEL TO GROUND.
Front Of Vehicle
