Cushman 898673 - Decals (Turf Models)

104
844177
844179
840845
840901
840748
WARNING
PARKING BRAKES ARE NOT AUTO-
MATICALLY APPLIED. VEHICLE MAY
MOVE CAUSING PERSONAL INJURY
AND/OR PROPERTY DAMAGE. ALWAYS
APPLY HAND OR FOOT BRAKES.
822819
NOTICE
821071
THIS UNIT IS NOT A MOTOR VEHICLE WITHIN THE
DEFINITION OF THE NATIONAL TRAFFIC MOTOR
VEHICLE SAFETY ACT. IT IS NOT DESIGNED
OR MANUF ACTURED FOR USE ON ROADS, STREETS
OR HIGHWA YS, NOR IS IT APPROPRIATE FOR
SUCH USE. IT IS NOR MEANT TO BE LICENSED
AS A MOTOR VEHICLE.
10
9
7
8
14
2
3
5
6
AC CESSOR Y
CYLINDER
SELECT OR
VA LV E
LIFT
VA LV E
MOTOR
DRIVEN
AC CESSOR Y
HYDRAULIC
TANK
HYD
PUM P
PRESSU RE
RETURN
SUCTION
PRESSUREOR RETURN
FOR MOTOR DRIVEN ACCESSORY AND
TRUCKSTE R DUMP BOX OPE RATION:
PLUG 1 --4, 2 --3, 8 --9, 7 --10.
FOR MOTOR DRIVEN ACCESSORY AND
INOP ERABLE TRUCKSTER CYLINDER:
PLUG 1 --2, 3 --4, 8 --9, 7 --10.
FOR TRUCKSTER CYLINDER
OPERATION:
PLUG 1--4,2--3,7--8.
FOR ACCESSORY CYLINDER
OPERATION:
PLUG 1--5,2--6,4--3, 7--8.
TRUCKSTER
CYLINDER
FILTER
837270
HOSE REMOVED FROM ACCESSORY 8 MUST
BE CLEANED AND PLUGGED INTO RETURN
PORT 7 TO PREVENT DAMAGE DUE TO ACC--
IDENTAL ENGAGEMENT OF SELECTOR VALVE.
PREVENT HYDRAULIC SYSTEM DAMAGE
844116

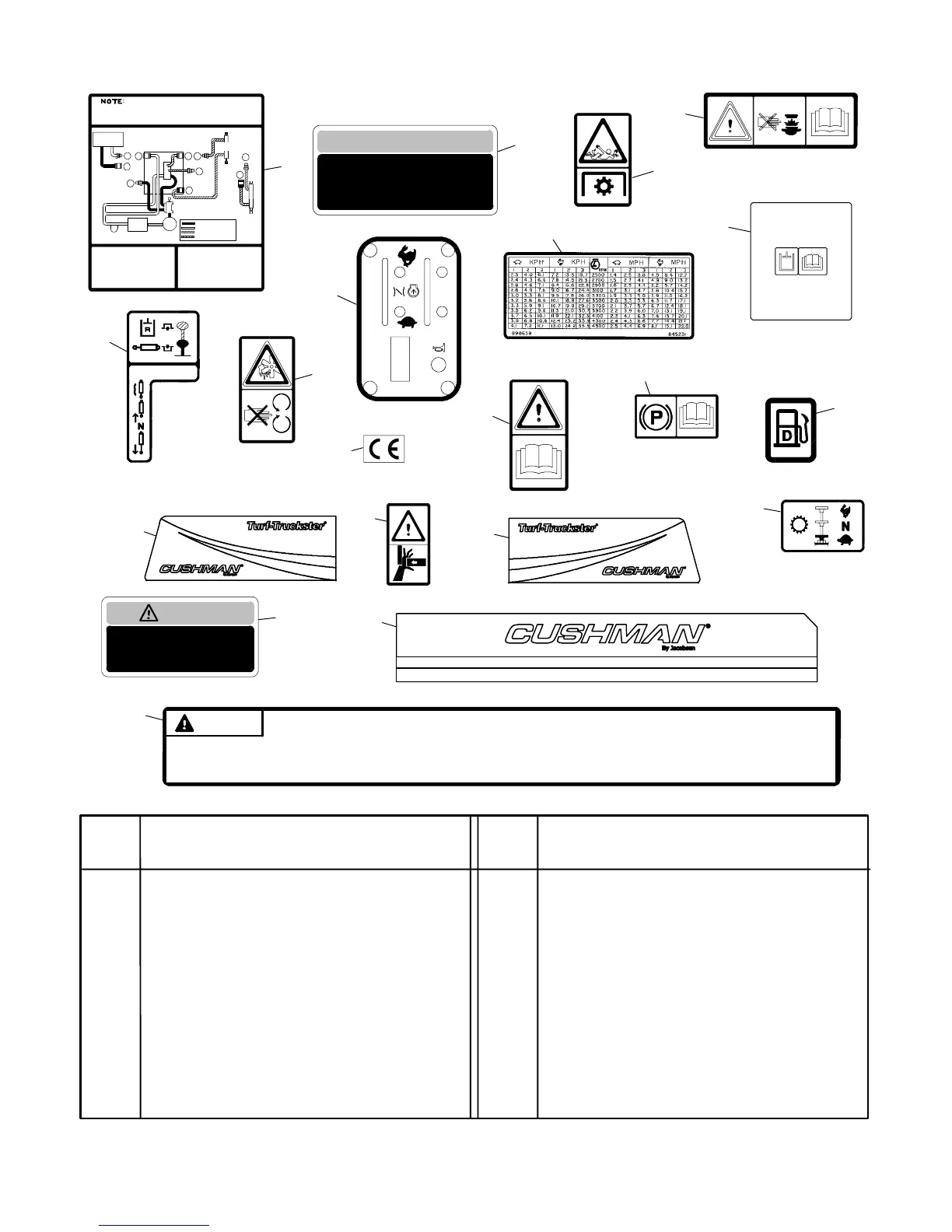

DECALS (TURF MODELS)
Ref.
No.
Part
No.
Description
No.
Req’d
No.
Req’d
Description
Part
No.
Ref.
No.
1 821071 Decal, Notice not motor vehicle 1.
2 822819 Decal, Warning, park brake 1.....
3 837270 Decal, remote hyd. connections 1.
4 840754 Decal, Warning, pressure 1......
5 840845 Decal, diesel fuel only 1.........
6 840901 Decal, Warning, read ops. man. 1.
7 844116 Decal, LH dash, turf 1...........
8 844177 Decal, aux. transmission 1.......
9 844179 Decal, hydraulic controls 1.......
10 74792 Decal, turf LH 1.................
11 74766 Decal, turf RH 1................
12 74764 Decal, Cushman-Textron 1.......
13 009034880 Decal, W arning, fan 1.......
14 845038 Decal, V ehicle Operation 1.......
15 845185 Decal, Park brake CE 1..........
16 845027 Decal, Pinch point As Req’d.......
17 840857 Decal, Remote hydraulics CE 1...
18 844643 Decal, Warning, pto 1...........
19 009039290 Decal, CE 1................
20 845231 Decal, ground speed (K6A A) 1...
845232 Decal, ground speed (K6A M) 1...
845233 Decal, ground speed (970) 1.....
845234 Decal, ground speed (diesel) 1...
1
2
9
4
5
6
7
8
3
10
11
12
13
845038
WARNING
F AILURE TO HEED THESE
WARNINGS MAY RESULT IN
SERIOUS INJURY OR DEATH
1. READ AND UNDERSTAND ALL LABELS AND THE OPERATOR’S MANUAL.
2. DO NOT ALLOW UNTRAINED PERSONNEL TO OPERATE THIS VEHICLE.
3. DO NOT MODIFY THIS VEHICLE WITHOUT MANUFACTURER’S AUTHORIZATION.
4. PLACE LOADS FORWARD OF REAR AXLE.
5. TOP HEAVY LOADS CAN CAUSE UPSETTING. DO NOT EXCEED PAYLOAD
CAPACITY.
6. DO NOT OPERATE IF REPAIRS ARE REQUIRED.
7. KEEP ALL SHIELDS IN PLACE.
8. SHIFT INTO NEUTRAL OR PARK BEFORE STARTING ENGINE.
9. ONLY CARRY PASSENGERS IN SEATS PROVIDED.
10. WHEN PARKING (LEAVING) VEHICLE, FOLLOW ALL INSTRUCTIONS IN
OPERATOR’S MANUAL.
11. AVOID SUDDEN STARTS, STOPS AND SHARP TURNS ESPECIALLY ON SLOPES, OR
WITH HEAVY LOADS
12. KEEP ALL LABELS AND INSTRUCTIONAL LITERATURE LEGIBLE AND INTACT.
13. KEEP ARMS AND LEGS WITHIN VEHICLE BODY.
14
845185
844643
*
19
15
16
17
18
20
*
Not illustrated
74764G01
74792G01
74792G01
*
*
