Cushman 898673 - Timing Belt & Timing Cover

124
1 11360-78100 Cover , inside 1............
2 11391-78113 Cover , outside 1...........
3 11399-73010 Gasket, cover 1...........
4 11398-73000 Grommet 2...............
5 09308-10004 Grommet 2...............
6 09180-06106 Spacer
(6 x 10 x 17) 4......
7 09136-06139 Bolt
(6 x 16) 4.............
8 02162-06103 Bolt 6....................
9 11480-78110 Seal set, inside cover 1.....
10 11484-73000 Grommet, outside 1........
11 12741-78403 Pulley, timing belt 1........
12 08341-31059 Key 1....................
13 01500-12253 Bolt 1....................
14 09160-12094 W asher
(12.5 x 32 x 4.5) 1..
15 12761-78400 Belt, timing 1..............
16 12810-53
A00 Tensioner , timing belt 1.....
17 01550-08403 Bolt 1....................
18 09160-08133 W asher
(8.5 x 26 x 1.6) 1....
19 09180-08111 Spacer
(8.1 x 16 x 17) 1.....
20 12821-78100 Spring, tensioner 1........
21 09103-08152 Bolt
(8 x 25) 1.............
22 08321-01083 Lockwasher 1.............
23 09160-08126 W asher
(8.5 x 20 x2.6) 1....
Ref.
No.
Part
No.
Description
No.
Req’d
No.
Req’d
Description
Part
No.
Ref.
No.

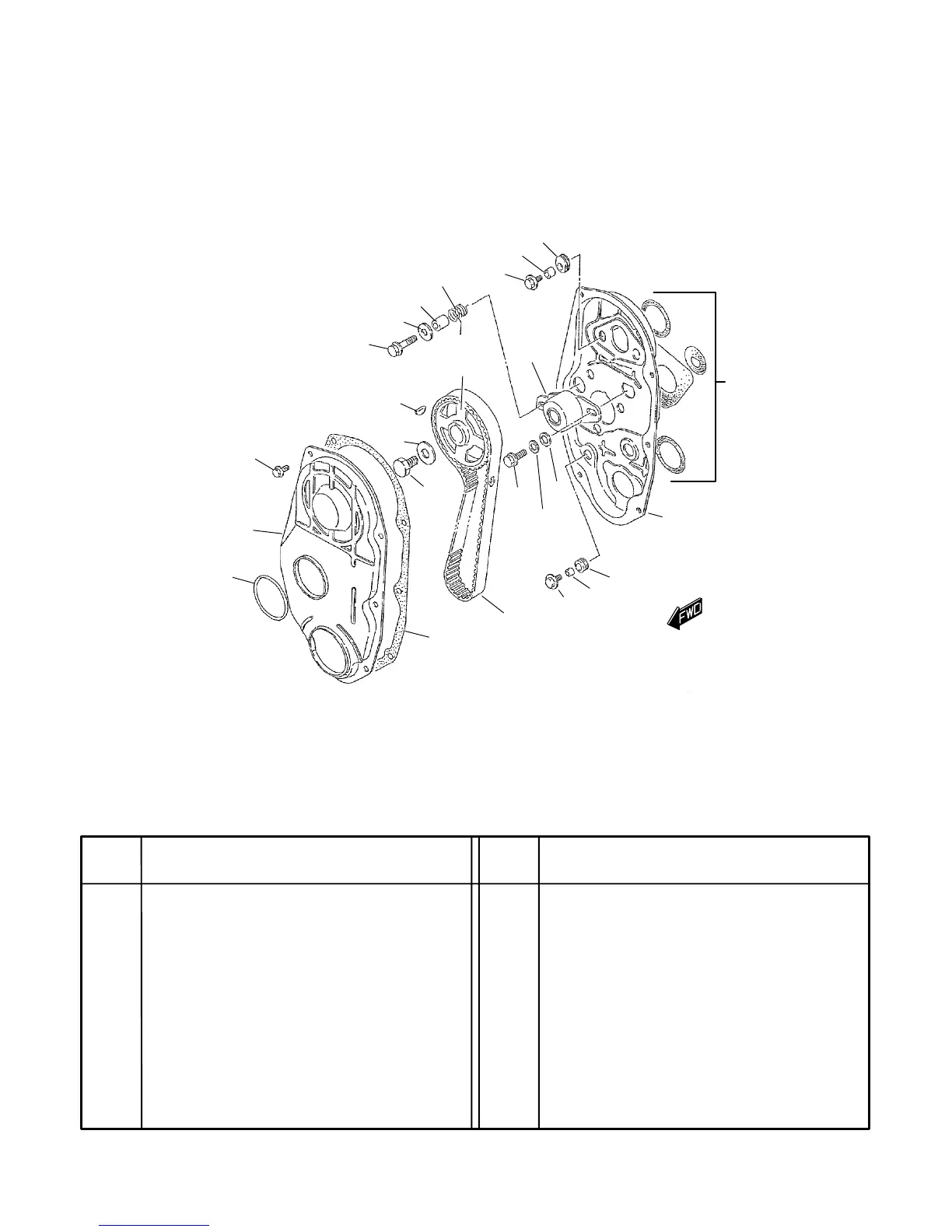

TIMING BELT & TIMING COVER
(SUZUKI 970)
1
13
4
5
6
21
11
23
22
12
20
17
18
16
15
19
2
7
7
14
10
9
8
3
6
Front Of Vehicle
