Cushman 898673 - Rear Spring, Shackles, U-Bolts and Rear Shock Absorbers

83

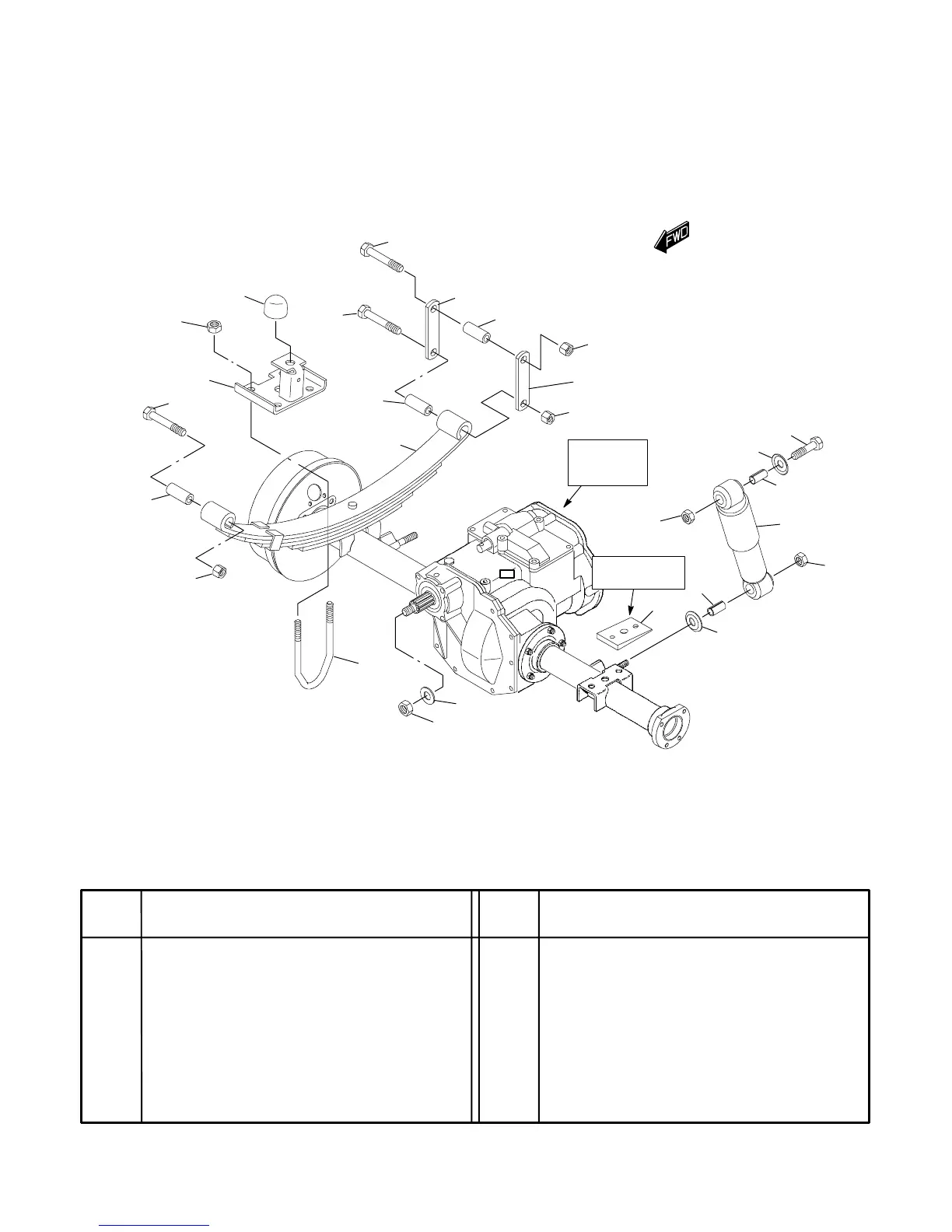

REAR SPRING, SHACKLES, U--BOLTS and REAR SHOCK ABSORBERS
1 311396 Screw , 7/16-14 x 2 1/4 2.........
2 311398 Screw , 1/2-13 x 3 1/2 6..........
3 800198 Nut, 1/2-20 crownlock 1.........
4 800294 Nut, 7/16-14 crownlock 4........
5 800602 Nut, 1/2-13 6...................
6 807332 Shock absorber 2...............
7 809180 Washer, 7/16 1.................
8 813850 Bumper, rubber 2...............
9 823621 Bushing 4......................
10 825500 Washer, 3/8 4..................
11 887187 U-bolt, 2” 4.....................
12 548061 :Nut, 7/16-20 unitorq 2..........
13 843238 Bushing, nylatron 2.............
14 843876 Shackle, rear spring 4...........
15 893862 Spring, leaf 2...................
16 843238 :Bushing, nylatron 2.............
17 893613 Upstop 2......................
18 838409 Spacer, leaf spring (970 only) 2...
Ref.
No.
Part
No.
Description
No.
Req’d
No.
Req’d
Description
Part
No.
Ref.
No.
: INDENTED PART NAMES INDICATE THESE PARTS ARE INCLUDED IN THE PRECEEDING ASSEMBLY.
P894510, P893435, P2701117
2
2
12
8
17
14
13
14
5
1
10
7
3
11
5
16
16
15
6
4
4
9
10
5
Reference
Two-Speed
Differential
2
9
18
Model 898671
Only
Front Of Vehicle
