Cushman 898673 - Governor

99
Use
Loctite 271
Use T eflon Tape, Permatex
#2 Sealant or Equivalent.
Torque to 95 ¦10 in. lbs.
Adjust Governor Nut and
Secure With Jam Nut
Allowing .006” (.152 mm)
Sideplay For Lever.
Govenor Nut
Jam Nut

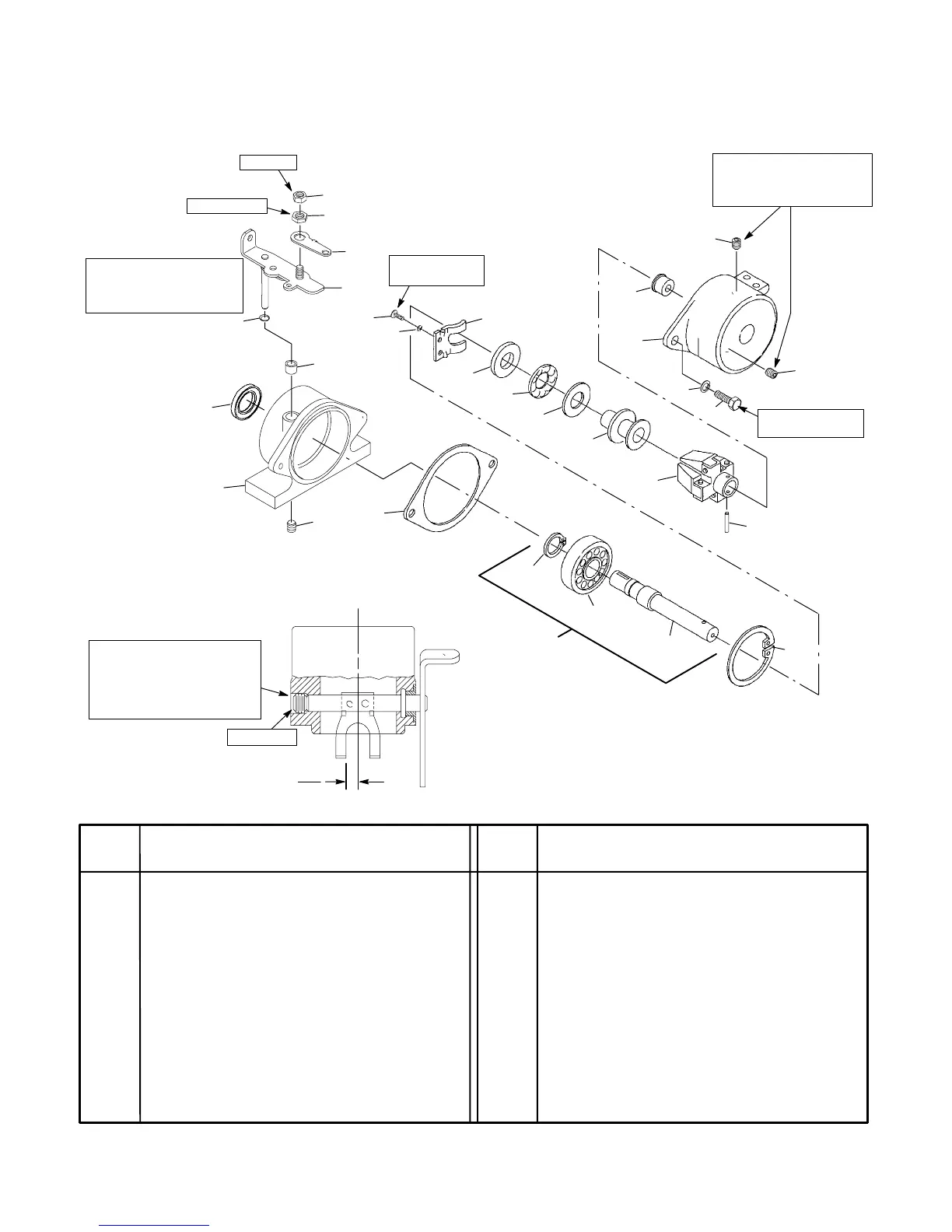

GOVERNOR (SUZUKI K6A and 970)
.321
.319
Set Screw
After Setting Governor Spool
Yoke to .321/.319, Adujust
Set Screw to Maintain That
Dimension, Then Apply GM
Ind. Silicone Sealant or
Equivalent
Ref.
No.
Part
No.
Description
No.
Req’d
No.
Req’d
Description
Part
No.
Ref.
No.
894080 Governor, complete 1...........
1 111812 :Yoke, spool 1..................
2 111814 :Washer, thrust 1...............
3 111816 :Washer, thrust 1...............
4 111817 :Spool, governor 1..............
5 112840 :Bearing, thrust 1...............
6 130728 :Nut, jam, 1/4-20 1..............
7 158061-18 :O-ring 1....................
8 160410 :Carrier & weights 1.............
9 302288 :Screw, 1/4-20 x 1” 2............
10 306396 :Lockwasher, 1/4” 2.............
11 306506 :Lockwasher , #6 2..............
12 306915 :Screw, machine, #6-32 x 5/16” 2.
13 306966 :Pin, roll, 1/8” x 3/4” 1...........
14 548325 :Ring, retaining 1...............
15 800227 :Plug, 1/8-27 2.................
16 800558 :Screw, set, 3/8-16 x 5/16” 1.....
17 833056 :Gasket, governor 1.............
18 833102 :Seal, oil 1.....................
19 835271 :Nut, governor arm 1............
20 843537 :Bracket, governor knee 1.......
21 843149 :Bushing, steel 1...............
22 843157 :Head, governor 1..............
23 894471 :Reservoir, governor 1...........
24 833103 ::Bearing, needle 1.............
25 888397 :Shaft, governor, complete 1.....
26 833066 ::Shaft, governor 1.............
27 833104 ::Ring, retaining 1..............
28 833345 ::Bearing, ball 1................
29 894067 :Lever, governor control 1........
: INDENTED PART NAMES INDICATE THESE PARTS ARE INCLUDED IN THE PRECEDING ASSEMBLY
894080, 894197, 894588, 894507
6
19
20
29
7
21
18
22
16
17
25
27
26
28
14
13
8
4
3
5
2
1
12
11
24
15
15
23
10
9
Torque to 96¦24
in. lbs.
