98
1 103867 W asher, 3/8 1..................
2 120166 Lockwasher, 1/2 8..............
3 120177 Lockwasher, 3/8 2..............
4 306325 Lockwasher, 5/16 1.............
5 306416 Screw, 5/16-18 x 1 1............
6 306836 Screw, 3/8-16 x 2 1/4 2..........
7 306835 Screw, 3/8-16 x 1 1/4 1..........
8 306562 Nut, 3/8-16 2...................
9 306981 W asher, 3/8 5..................
10 311213 Screw, 3/8-16 x 3 1.............
11 450453 Nut, M8-1.25 (G10.9) 8..........
12 452388 Screw, M8-1.25 x 20 (8.8) 5......
13 452394 Screw, M8-1.25 x 70 (8.8) 2......
14 452390 Screw, M8-1.25 x 30 (8.8) 3......
15 452395 Screw, M8-1.25 x 80 (8.8) 2......
16 548804 Nut, flange 3/8-16 1.............
17 800073 Bolt, carriage 3/8-16 x 1 1/4 1....
18 800921 Screw, M12-1.25 x 20 (8.8) 2.....
19 844301 V-belt, 48” (1219 mm) 1.........
20 839907 Pulley, 5.50” (steering pump) 1...
21 839911 Pulley, 4.75” (hydraulic pump) 1..
22 844269 Bracket, alternator adjusment 1...
23 841966 V-belt, 29.5” (750 mm) 1.........
24 844271 Bracket, alternator rear 1........
25 844268 Bracket, power steering, rear 1...
26 844270 Bracket, alternator, front 1.......
27 844272 Mount, engine (right) 1..........
28 843760 Bracket, hydraulic pump 1.......
29 821893 Trim, push-on As Req’d...........
Ref.
No.
Part
No.
Description
No.
Req’d
No.
Req’d
Description
Part
No.
Ref.
No.
EXC
B
S
R
G
B
W/R
R
W/G
G
R

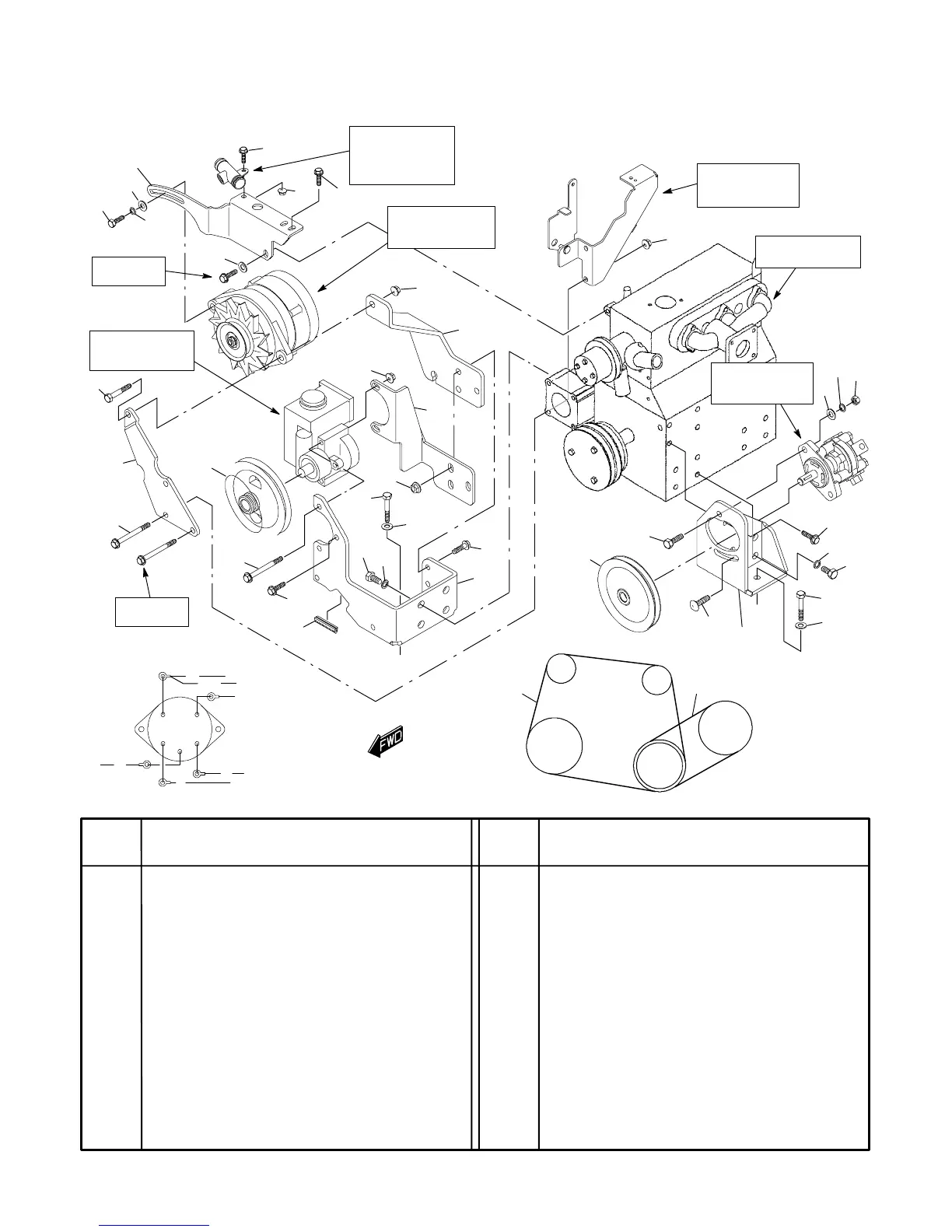

ALTERNATOR, ENGINE BELTS, PULLEYS and BRACKETS
(DIESEL)
Reference
Alternator
Part No. 893633
Reference
Pwr Strng Pump
Part No. 892534
Reference
Hydraulic Pump
Part No. 888042
POWER
STRNG
ALT
WTR
PUMP
HYDRLC
PUMP
CRANK-
SHAFT
Existing
Hardware
Reference
Throttle Bracket
Part No. 894591
Shown For
Reference Only
Reference
Fan Switch Tube
Part No. 894348
(With Radiator)
Existing
Hardware
12
12
11
9
4
5
1
22
10
26
13
20
15
12
29
6
9
18
2
14
27
11
25
11
16
24
21
7
17
6
9
2
18
12
9
3
8
28
11
19
23
Front Of Vehicle
