Cushman 898673 - Page 99

97
Reference
Alternator
Part No.
31400-60C1 1
Use Loctite 242
On These Items
*
Reference Power
Steering Pump Part
No. 892534
Reference
Governor
Part No. 894080
To
Engine

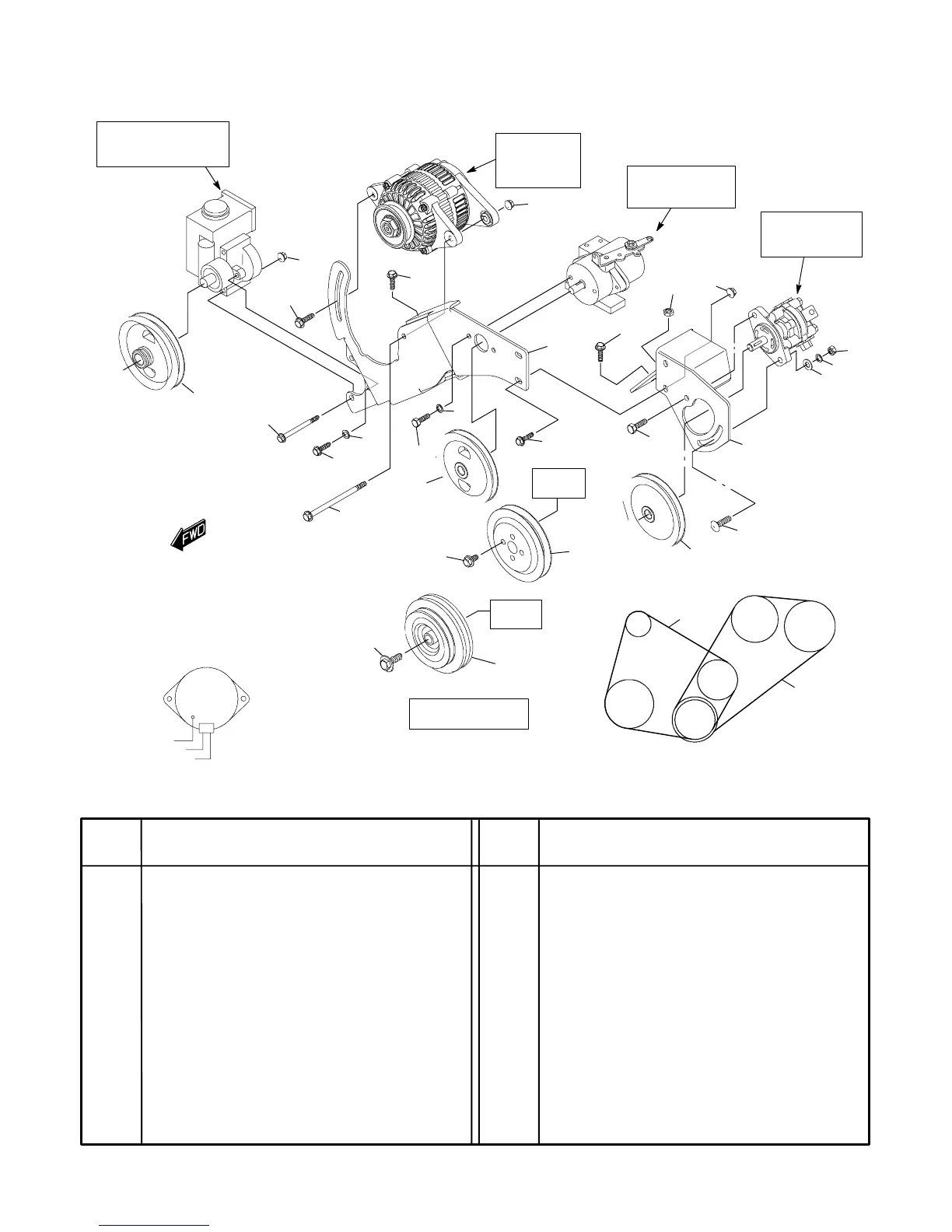

ALTERNATOR, ENGINE BELTS, PULLEYS and BRACKETS
(SUZUKI 970)
1 120177 Lockwasher , 3/8 2..............
2 306835 Screw, 3/8-16 x 1 3/4 1..........
3 306325 Lockwasher , 5/16 3.............
4 306450 Screw, 5/16-18 x 3/4 2...........
5 306932 Nut, 5/16-18 2..................
6 306981 Washer, 3/8 2..................
7 316909 Screw, 5/16-18 x 4 1/2 1.........
8 450453 Nut, M8-1.25
(G10.9) 4..........
9 452388 Screw, M8-1.25 x 20 (8.8) 7......
10 452394 Screw, M8-1.25 x 70 (8.8) 2......
11 800697 Nut, crownlock 5/16-18 1........
12 800950 Screw, M6-1.00 x 10 4...........
13 844035 Pulley, 4.75” (governor) 1........
14 836854 V-belt, 42” (1067 mm) 1.........
15 839907 Pulley, 5.50” (steering pump) 1...
16 894362 Bracket, alternator, governor
and power steering pump 1......
17 844036 V-belt, 51” (1295 mm) 1.........
18 843702 Bracket, hydraulic pump 1.......
19 800073 Bolt, carriage, 3/8-16 x 1 1/4 1....
20 828100 Pulley, 5.50” (hydraulic pump) 1..
21 95131-51
F60 Pulley, double groove 1.....
22 12619-60
B00 Bolt, crankshaft 1..........
23 09118-08107 Bolt 1....................
24 17511-73001 Pulley, water pump 1.......
25 452389 Screw, M8-1.25 x 25 (8.8) 1......
26 08316-10083 Nut 1....................
Ref.
No.
Part
No.
Description
No.
Req’d
No.
Req’d
Description
Part
No.
Ref.
No.
894197
Reference
Hydraulic Pump
Part No. 888042
ALTERNATOR WIRING
ALT
PWR
STRNG
CRANK-
SHAFT
GOV
HYDR
PUMP
To
Engine
WATER
PUMP
RED
GREEN
WHITE
8
23
15
10
9
3
4
3
7
9
*
11
13
12
24
21
22
9
5
1
6
2
18
20
19
14
17
8
*
16
25
*
26
Front Of Vehicle
