Cushman 898673 - Pcv Valve, Emissions & Exhaust Manifold

126
1 09355-13207-600 Hose As Req’d.........
2 09401-20301 Clip 4....................
3 09367-14002 Union, 3-way 1............
4 11193-85000 Hose,
PCV 1..............
5 09401-13414 Clip 2....................
6 18118-80010 Valve,
PCV 1..............
7 09404-08420 Clamp, breather hose 1....
8 14111-85210 Manifold, exhaust 1........
9 14140-85200 Gasket, exhaust manifold 1.
10 01411-08253 Stud bolt 8................
11 08310-00083 Nut 8....................
12 14120-85220 Cover , upper 1............
13 14125-85201 Cover , lower 1............
14 01411-06123 Stud bolt 3................
15 08361-35063 Nut 3....................
16 09103-06168 Bolt
(6 x 10) 5.............
17 14181-85200 Gasket, exhaust pipe 1.....
18 01411-10253 Stud bolt 3................
19 09355-35754-600 Hose As Req’d.........
20 09404-08206 Clamp 1..................
21 09408-00060 Clamp 1..................
Ref.
No.
Part
No.
Description
No.
Req’d
No.
Req’d
Description
Part
No.
Ref.
No.

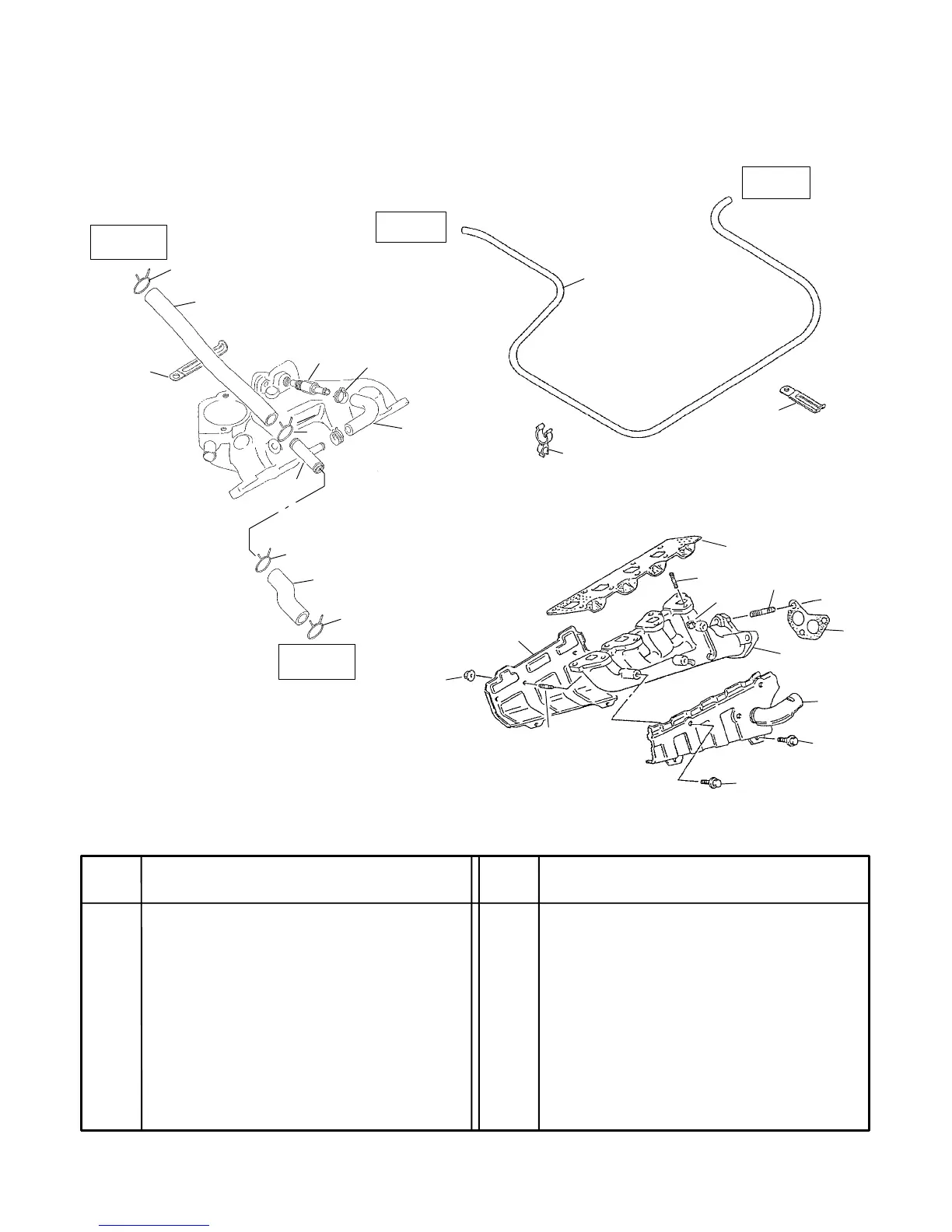

PCV VALVE, EMISSIONS & EXHAUST MANIFOLD
(SUZUKI 970)
1
7
6
5
4
3
1
8
3
3
3
8
9
10
11
18
17
16
16
12
14
15
13
To
Air Cleaer
To
Head Cover
19
20
21
To
Distribt
or
To
Carburtor
