Cushman 898673 - Transmission Case

161
1 24700-85200 Case, transmission 1.......
2 04211-13149 :Pin 2....................
3 09103-08131 :Bolt,
No. 1 (8 x 120) 4.....
4 01550-08303 :Bolt, No. 2 3.............
5 01550-08403 :Bolt, No. 3 1.............
6 01550-08803 :Bolt, No. 4 2.............
7 24741-83001 Retainer, input shaft brng. 1.
8 09103-08152 Bolt (8 x 25) 8.............
9 09250-30003 Cap, inspection timing 1....
10 37610-80023 Switch, back-up lamp 1.....
11 09280-11002 :O-ring 1.................
12 09250-10006 Plug, locating 1............
13 24770-85252 Case, extension 1.........
14 04211-13149 Pin 2.....................
15 09103-08132 Bolt,
No. 1 (8 x 100) 3......
16 01550-08403 Bolt, No. 2 1..............
17 01550-08353 Bolt, No. 3 5..............
18 01421-08303 Stud bolt 1................
19 08316-10083 Nut 1....................
20 24780-83010 Seal, extension case 1.....
21 09246-16010 Plug, oil filler 2............
Ref.
No.
Part
No.
Description
No.
Req’d
No.
Req’d
Description
Part
No.
Ref.
No.
14
• INDENTED PART NAMES INDICATE THESE PARTS ARE INCLUDED IN THE PRECEDING ASSEMBLY
5
3
4
6
3
3
44
3
6
10
11
18
19
20
16
17
21
15
13
12
2
9
1
8
7

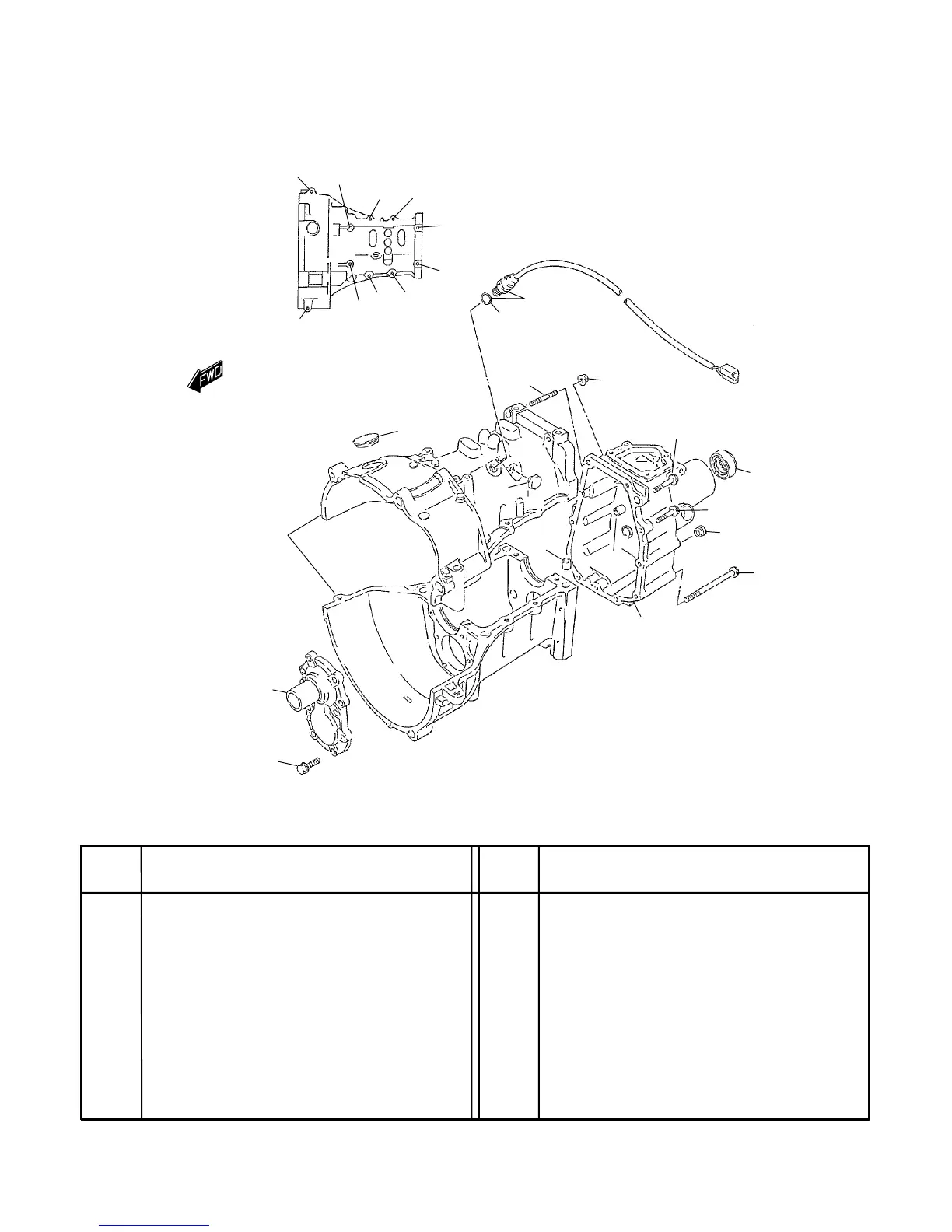

TRANSMISSION CASE
(SUZUKI 970 and PERKINS DIESEL)
Front Of Vehicle
