1 12710-77314 Camshaft 1...............
2 09283-32040 Seal, camshaft 1..........
3 12749-73002 Plate, cam shaft thrust 1....
4 02122-06123 Screw 2..................
5 12860-73004 Shaft, valve rocker 2.......
6 02122-06163 Screw 10.................
7 12841-77300 Arm, valve rocker 8........
8 12891-51
G00 Spring, rocker arm 8.......
9 12848-73010 Screw, valve adjusting 8....
10 09159-07002 Nut 8....................
11 12911-78101 Valve, inlet 4..............
12 12915-84010 Valve, exhaust 4...........
13 12921-73002 Spring, valve 8............
14 12900-82810 Retainer, valve spring 8....
15 12932-82000 :Cotter, valve 16...........
16 12933-73000 Seat, valve spring 8........
17 09289-07007 Seal, oil 8................
Ref.
No.
Part
No.
Description
No.
Req’d
No.
Req’d
Description
Part
No.
Ref.
No.

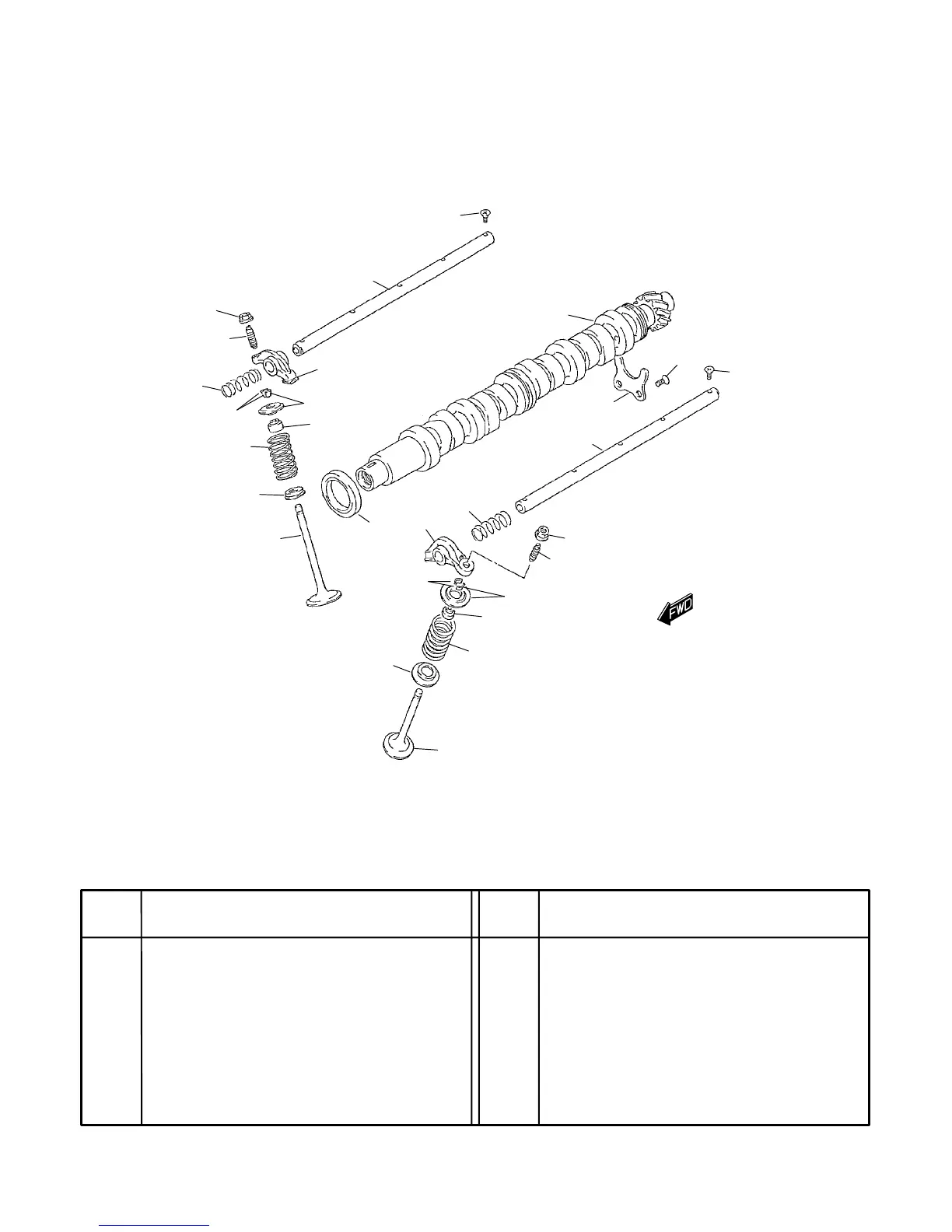

CAMSHAFT & COMPONENTS
(SUZUKI 970)
4
5
11
10
8
5
3
16
15
14
17
12
13
17
9
10
7
16
6
2
1
13
15
14
7
8
9
6
: INDENTED PART NAMES INDICATE THESE PARTS ARE INCLUDED IN THE PRECEDING ASSEMBLY
