159
1 12140-75112 Ring, piston (standard) 4...
12140-75112-025 Ring, piston 4.........
12140-75112-050 Ring, piston 4.........
2 12111-85201
-0B0 Piston (standard) 4....
12111-85201
-025 Piston (OS:0.25) 4.....
12111-85201
-050 Piston (OS:0.50) 4.....
3 12151-29001 Pin, piston 4..............
4 09381-16001 Circlip 8..................
5 12160-73010 Rod, connecting 4.........
6 09159-08033 :Nut, connecting rod 8.....
7 12181-81051-0
A0 Bearing (standard) 8...
12181-81051-025 Bearing, cnctng. rod 8..
12181-81051-050 Bearing, cnctng. rod 8..
12181-81051-075 Bearing, cnctng. rod 8..
12181-81051-100 Bearing, cnctng. rod 8..
8 12221-75104 Crankshaft 1..............
9 12300-73812-0
A0 Bearing set, crnkshft. 1.
12300-73812-025 Bearing set, crnkshft. 1.
12300-73812-050 Bearing set, crnkshft. 1.
12300-73812-075 Bearing set, crnkshft. 1.
12300-73812-100 Bearing set, crnkshft. 1.
10 12300-73830 Bearing set, crank thrust 1..
12300-73830-012 Bearing set, thrust 1...
12300-73830-025 Bearing set, thrust 1...
11 09283-32040 Seal, front 1..............
12 12635-78401 Guide, timing belt 1........
13 12631-78401 Pulley, timing belt 1........
14 08341-31059 Key 1....................
15 12611-66
C00 Pulley, crank 1............
16 12619-60
B00 Bolt 1....................
17 09283-60005 Seal, rear main 1..........
18 11341-70
B01 Housing, oil seal 1.........
19 01550-06203 Bolt 4....................
20 02122-06253 Bolt 2....................
21 04211-09109 Pin 2.....................
22 12620-85301 Flywheel 1................
23 09103-10097 Bolt (10 x 17) 6............
24 04421-06129 Pin 1.....................
25 12623-70
B00 Bearing, input shaft 1......
Ref.
No.
Part
No.
Description
No.
Req’d
No.
Req’d
Description
Part
No.
Ref.
No.
: INDENTED PART NAMES INDICATE THESE PARTS ARE INCLUDED IN THE PRECEDING ASSEMBLY

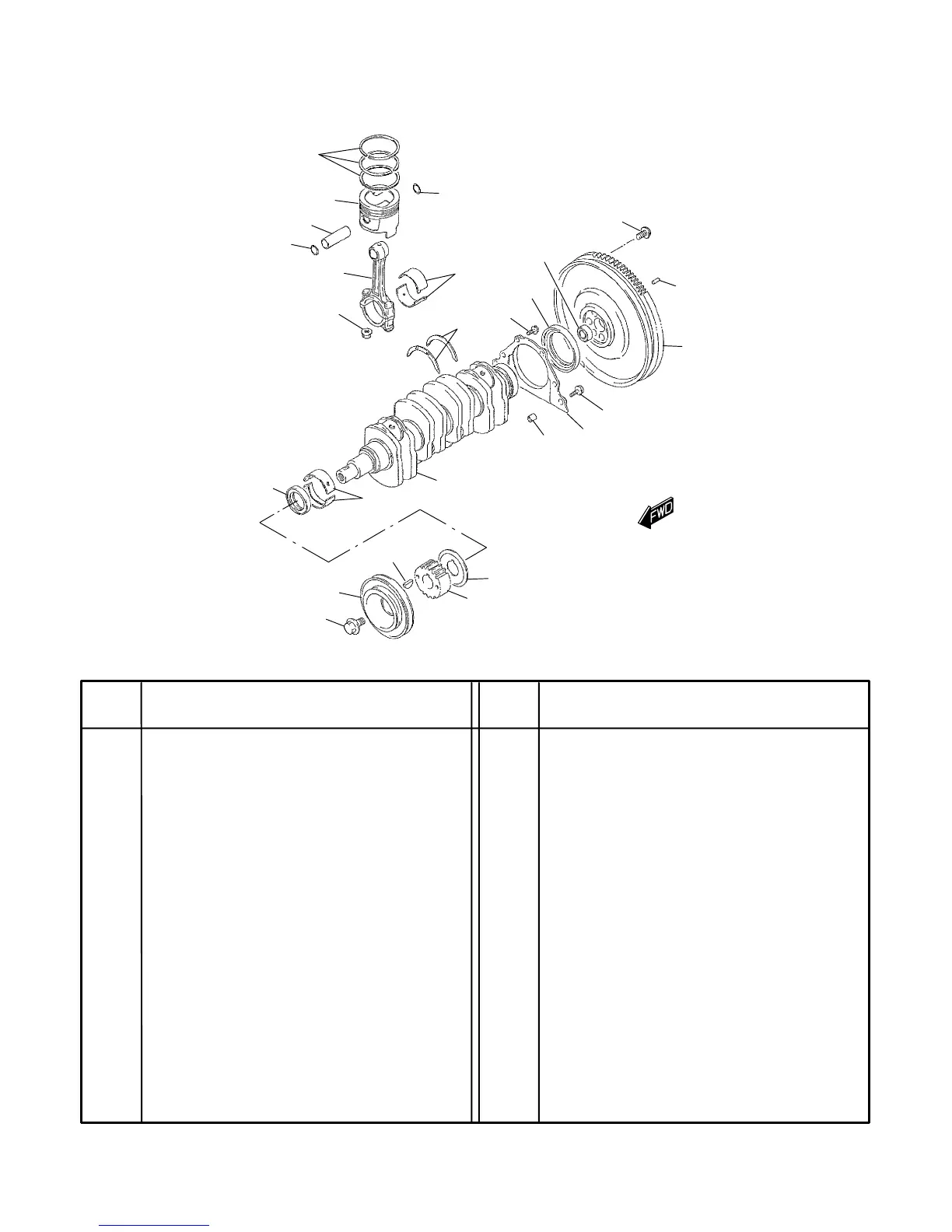

CRANKSHAFT, FLYWHEEL and PISTONS (SUZUKI 970)
1
4
4
3
2
5
6
7
9
14
8
10
15
13
12
11
18
22
21
23
19
16
17
20
24
25
(1)
(1)
(2)
(2)
(7)
(7)
(7)
(7)
(9)
(9)
(9)
(9)
(10)
(10)
Front Of Vehicle
To Next Page
