Cushman 898673 - Hydraulic Filter and Reservoir

87

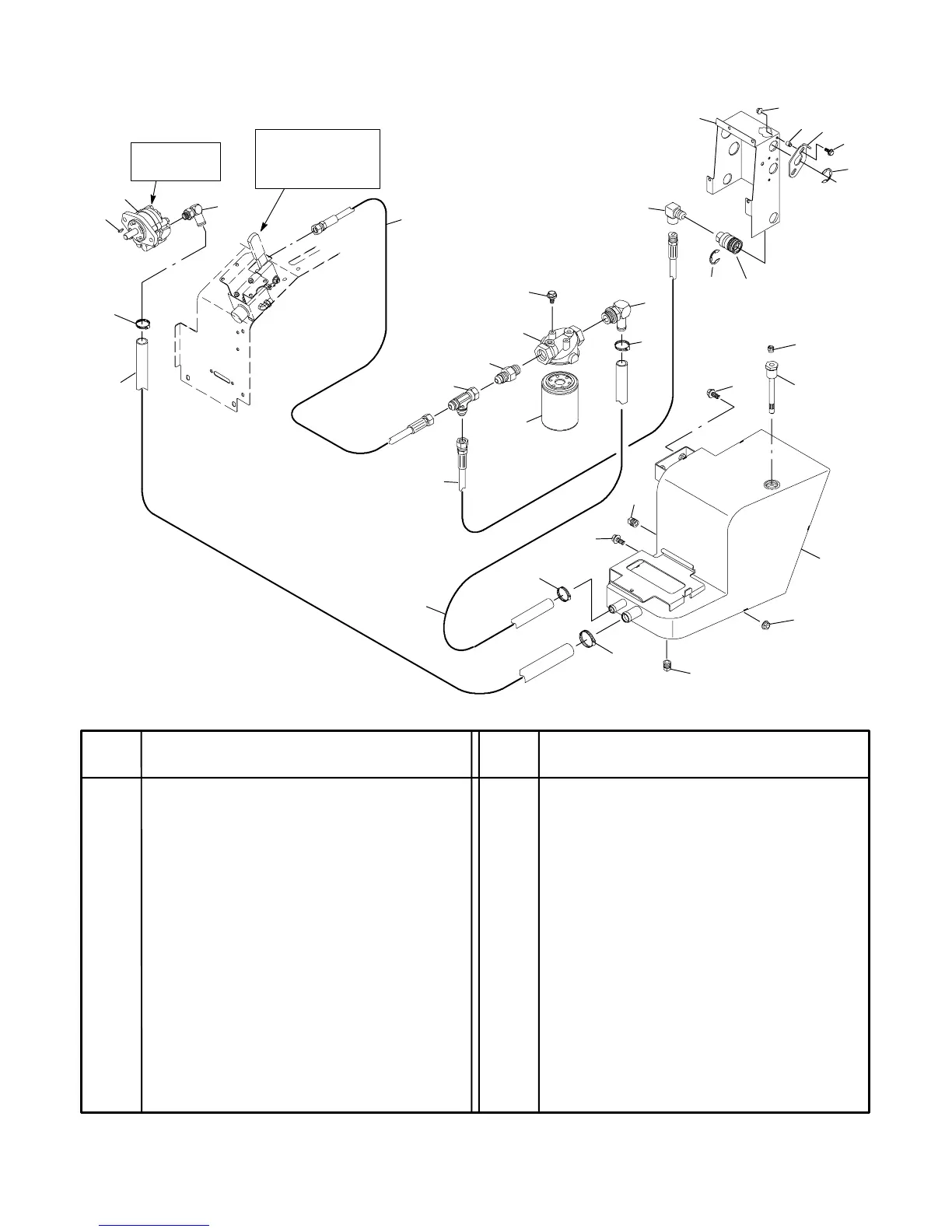

HYDRAULIC FILTER and RESERVOIR
1 523768 Adapter , 90E elbow 1............
2 548827 Screw, 1/4-20 x 1/2 2............
3 844583 Fitting, 90E adapter 1............
4 827486 Valve, pressure relief 1..........
5 832414 Ring, retaining 2................
6 835101 Fitting, hydraulic 90E 1..........
7 836206 Clamp, hose 4..................
8 844564 Hose, hydraulic, 1” x 26” 1.......
9 844565 Hose, hydraulic, 3/4” x 16” 1.....
10 844590 Adapter , straight 1..............
11 844600 Hose, hydraulic, 1/2” x 39” 1.....
12 844627 Fitting, swivel tee 1.............
13 844630 Hose, hydraulic, 3/8 x 21” 1......
14 885249 Element, filter 1.................
15 844973 Bushing 1......................
16 893539 Dipstick, hydraulic tank 1........
17 2700800 Cover, hydraulics w/decal 1.....
837270 :Decal, hydraulic connections 1..
2700801 Cover, hydraulics w/decal 1.....
840857 :Decal, hydraulic connections 1..
18 894675 Tank, hydraulic 1...............
19 894691 Head, filter 1...................
20 894701 Coupler, hydraulic dryseal 1......
21 450453 Nut, M8-1.25 (G10.9) 2..........
22 452388 Screw, M8-1.25 x 20 (G8.8) 2....
23 452399 Screw, M10-1.50 x 25
(8.8) 2.....
24 800113 Plug 2.........................
25 450452 Nut, M6-1.00
(10.9) 2............
26 452381 Screw, M6-1.00 x 40 (8.8) 2......
27 844937 Plate, coupler retainer 1.........
28 888042 Pump, hydraulic 1..............
29 306560 :Key, woodruff
#5 1.............
887017 Kit, seal, hydraulic pump 1.......
Ref.
No.
Part
No.
Description
No.
Req’d
No.
Req’d
Description
Part
No.
Ref.
No.
Reference
Hydraulic Control
Valve And Control
Panel
893447, 894197, 894198
Seal Kit Part
No. 887017
*
28
3
7
8
13
12
10
14
2
19
1
7
9
7
7
11
6
5
20
5
17
4
16
18
23
22
24
24
21
25
26
27
15
*
: INDENTED PART NAMES INDICATE THESE PARTS ARE INCLUDED IN THE PRECEDING ASSEMBLY.
: Not Illustrated.
*
29
*
(17)
