Cushman 898673 - Page 95

93
1 450452 Nut, M6-1.00 (G10) 3...........
2 452378 Screw, M6-1.00 x 20 2..........
3 800934 Screw, M6-1.00 x 16 (G10) 1.....
4 830366 Switch, push (horn button) 1.....
5 841636 Panel, instrument w/tach 1.......
6 800943 Screw, #10-14 x 5/8 4...........
7 837303 Headlight, rectangular 2.........
8 843581 Switch, headlight 1.............
9 843942 Socket, 12V acc. plug 1.........
10 886090 Horn 1........................
11 889673 Solenoid 1.....................
12 120052 SLockwasher, #10 2.............
13 132520 SNut, #10-32 2.................
14 306325 SLockwasher, 5/16 2............
15 306932 SNut, 5/16-18 2.................
16 890000 Buzzer assembly 1.............
17 890154 Switch, ignition, complete 1......
18 837295 SSwitch, ignition 1..............
837296 SConnector 1..................
19 837299 SSpacer 1.....................
20 837300 SSpacer 1.....................
21 890158 SConnector and wire 1..........
22 894201 Harness, wire, fuel tank 1........
23 894308 Switch (normally open) 1........
24 894313 Harness, wire, taillight 1.........
25 39312-50F01 Wire, noise suppressor
(Suzuki Models Only) 1.....
26 893602 Taillight 1......................
27 894531 Harness, ATM controller
(Model 898628) 1...............
28 33410-50
F20 Coil, ignition (Suzuki K6A) 1
29 18570-84000 Switch set, vacuum 1......
30 38850-51
F10 Controller, idle up 1........
31 38850-50F41 Controller, fuel 1...........
32 38880-51F13 Controller, auto. trans. 1....
33 33410-85010 Coil, ignition (Suzuki 970) 1.
34 17680-50F70 Switch, fan 1..............
35 843857 Sender, water temperature 1.....
36 829787 Terminal, 45_ 1/4” male 1........
Ref. Part No.
No. No. Description Req’d.
Ref. Part No.
No. No. Description Req’d.
S INDENTED PARTS NAMES INDICATE THESE PARTS ARE INCLUDED IN THE PRECEDING ASSEMBLY.

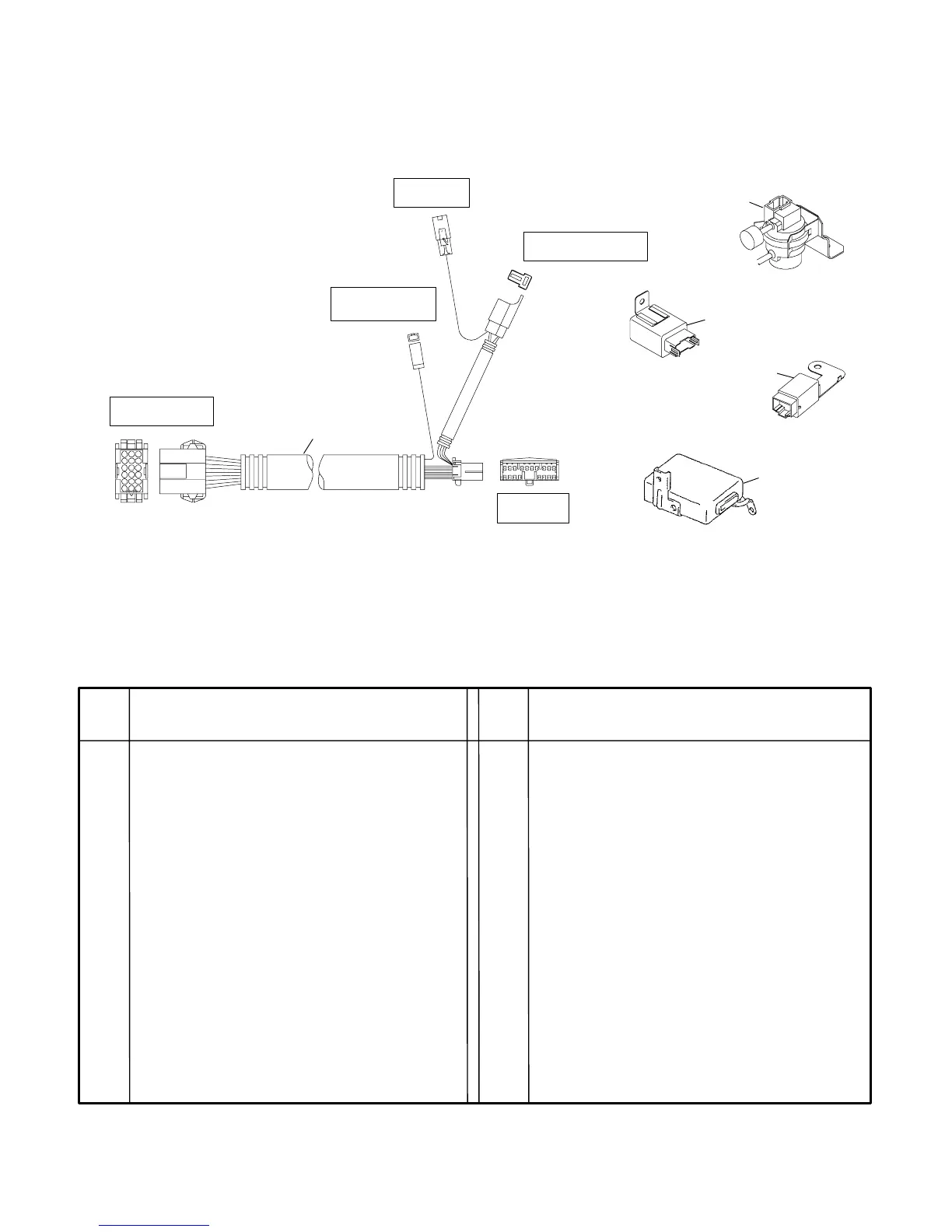

ELECTRICAL COMPONENTS and WIRING HARNESSES
Not Illustrated
*
*
To
Controller
To Main Harness
Power Ground
To Shifter
Light
To Accessory
(Idle Up)
To
Engine Harness
27
The items shown on this page are used
with the auromatic transmission on
vehicle Model 898628.
The convoluted tubing used on the wiring harnesses can be ordered in bulk length only. Cut off the
required amount for your particular application. Order the tubing as follows:
Part No. 826190 .350 i.d. sold in 50’ (15.2 m) lengths
Part No. 826191 .500 i.d. sold in 25’ (7.6 m) lengths
