Protection Functions
PRS-7367 119

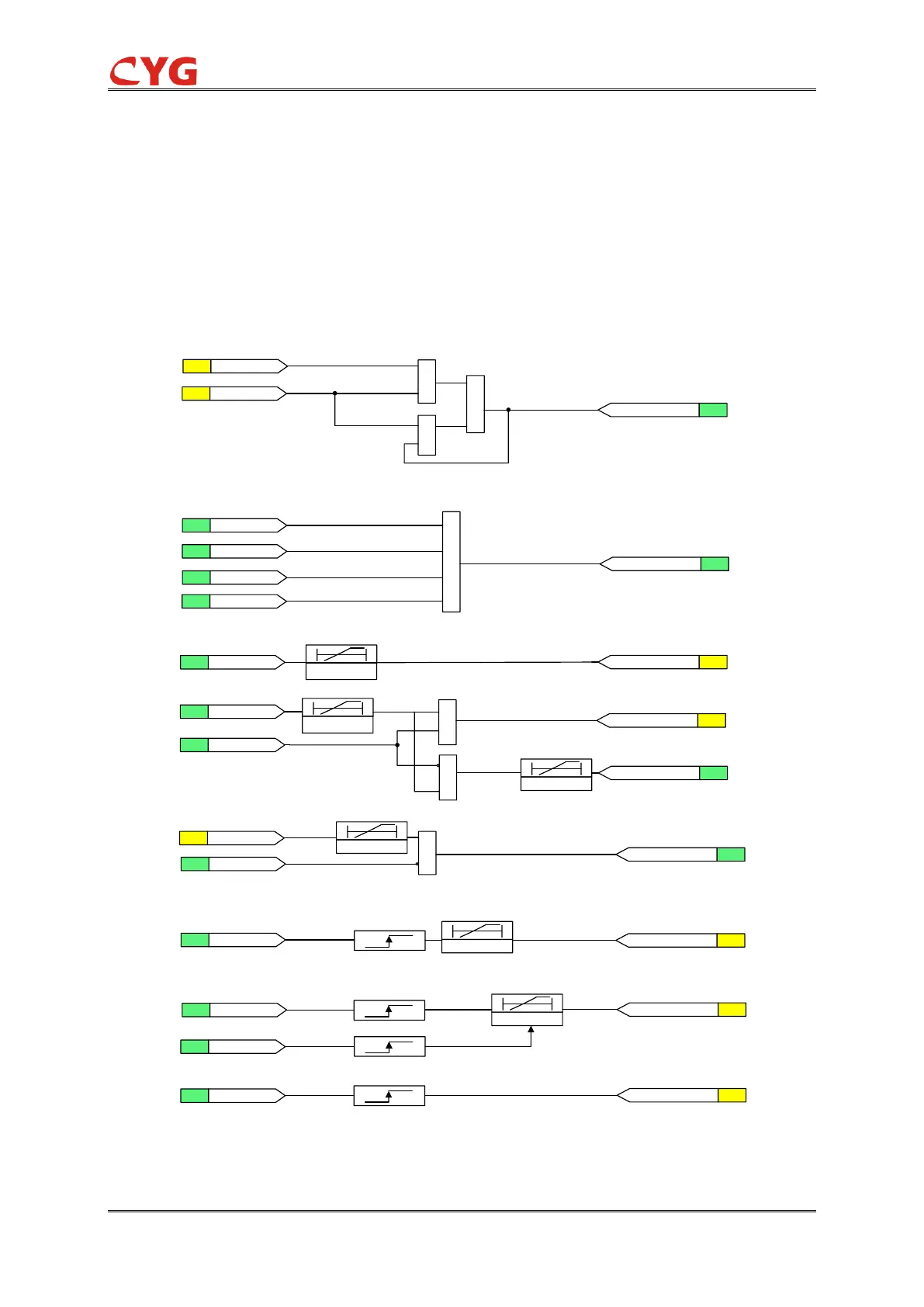

made and the circuit breaker does not remain closed, the AR indicates an unsuccessful reclosing.
The 79AR_RUN_Circle_N is counted from 1 (the first shot) in a reclosing cycle, the
79AR_RUN_Circle_N plus 1 when AR reclose command issues, and also the reclaim timer will
start, if there is no trip startup signal, it means AR reclose successfully, the AR will return to ready
status and wait for next reclose reclosing cycle. If there is a new trip startup signal in the reclaim
time, and also 79AR_RUN_Circle_N is less than the setting 79AR_Circle_N, AR will go to next
shot.
