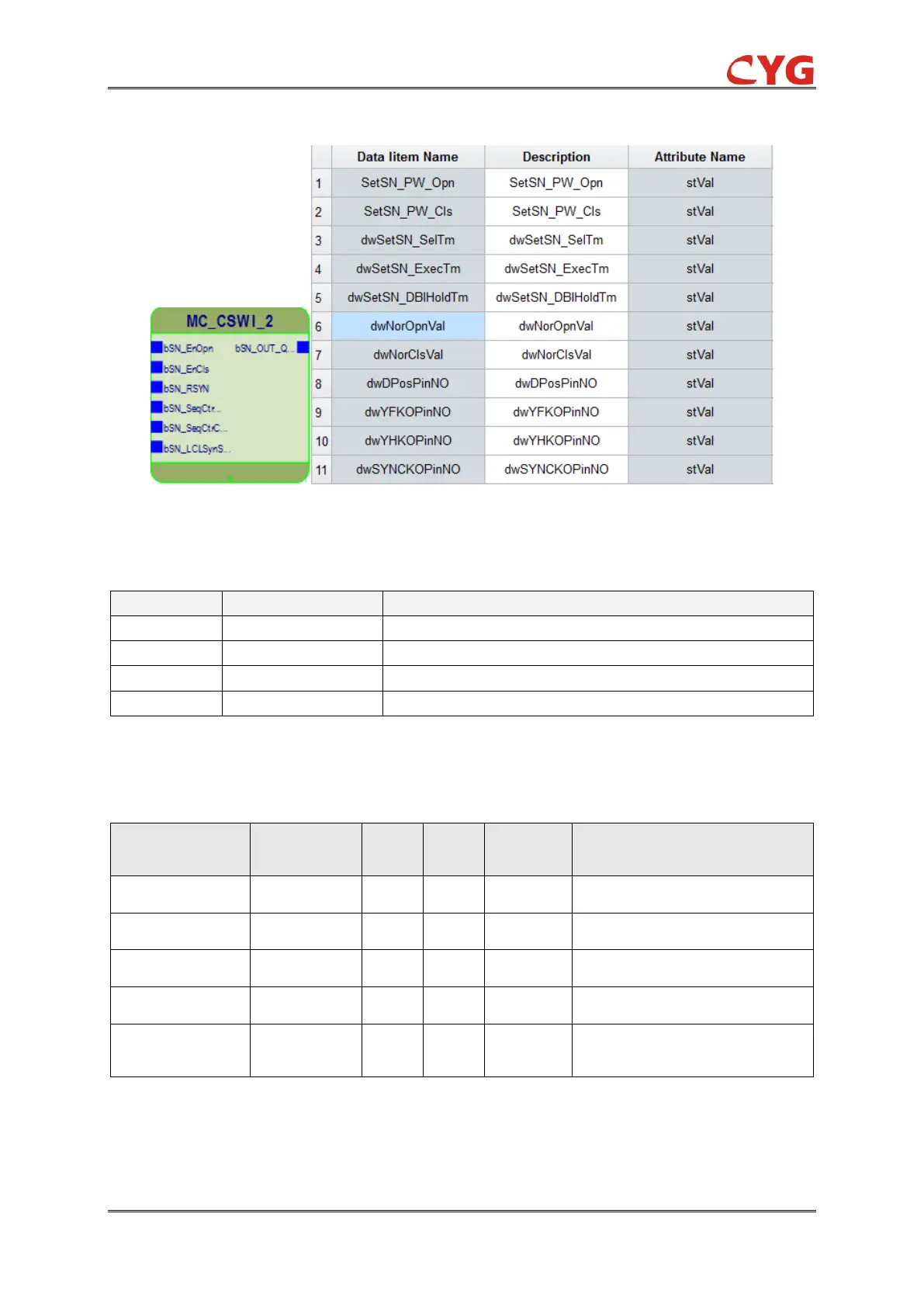

5.5.2 Function Block
5.5.3 I/O Signal
Table 5.5-1 Description of Binary Output
No.
Input Signal
Description
1
bSN_EnOpn
Interlocking signal of remote open
2
bSN_EnCls
Interlocking signal of remote close
3
bSN_LCLSynStart
Signal of sync start
4
bSN_OUT_QDEnaSig
Signal of Starting the outlet switch
5.5.4 Settings
Table 5.5-2 Parameter Setting of Binary Output
Name
Values
(Range)
Unit
Stage
Default
Description
SetSN_PW_Opn
0.1~60
S
~
0.2
remote-control trip pulse width
SetSN_PW_Cls
0.1~60
S
~
0.2
remote-control close pulse width
dwSetSN_SelTm
0.1~60
S
~
30
Time period of selection operation
dwSetSN_ExecTm
0.1~60
S
~
30
Time period of operate operation
dwSetSN_DBIHold
Tm
0~10
S
~
0.02
Time period of debouncing
