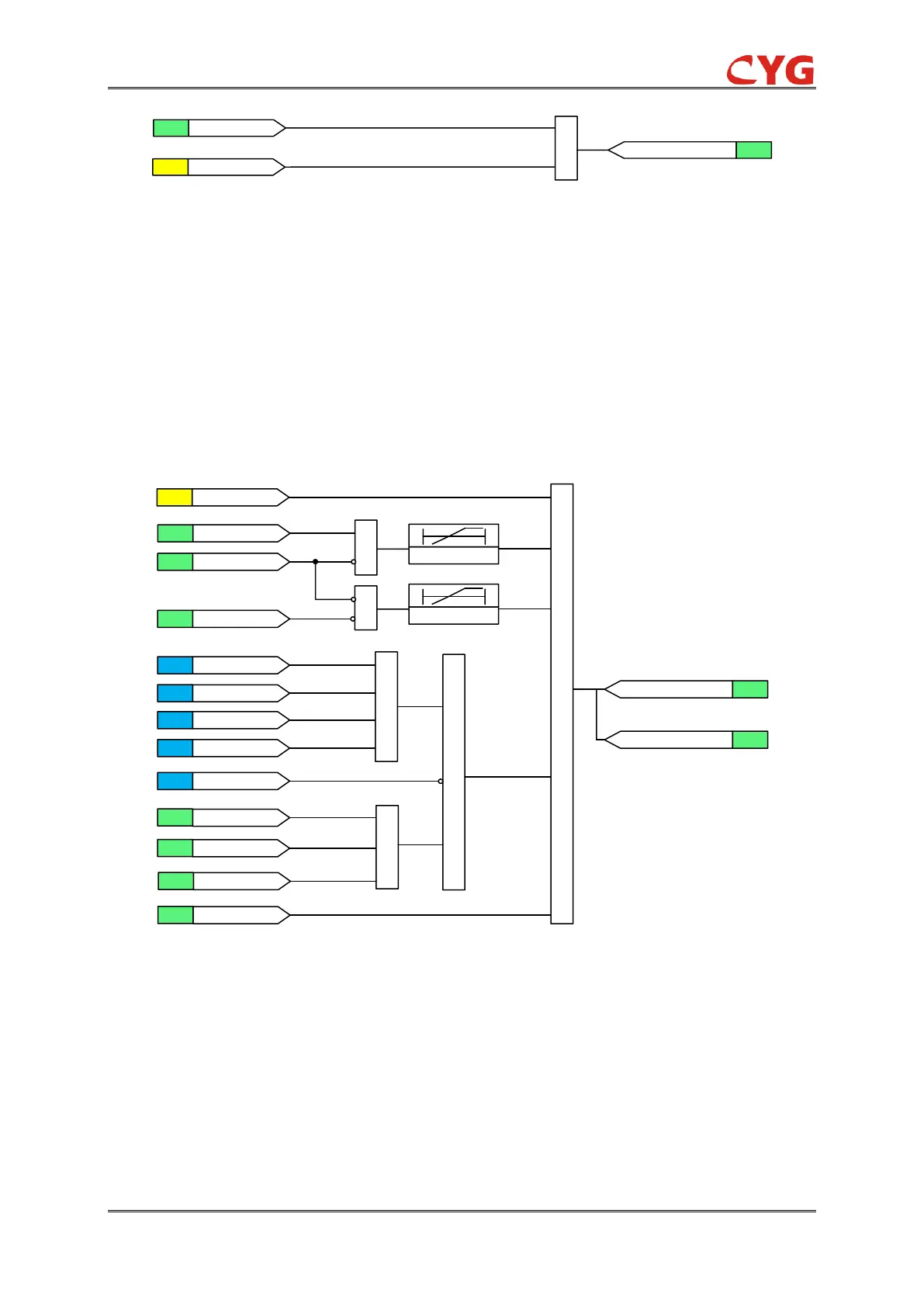

Figure 3.22-10 AR Blocked BO active
The 79_AR_Ready state will be reset when the 79AR_Blocked BO is active, beside this condition,
there are some other reset conditions:
If the CB Close become 0 when AR is not initialized, the 79_AR_Ready state will be reset after
400ms
If the CB Healthy become 0 when AR is not initialized, the 79_AR_Ready state will be reset after
200ms.
When Synchronism check or voltage check is enabled but there are any conditions: PT
supervision alarm, line PT supervision alarm or synchronism voltage error.
Figure 3.22-11 79AR_Reday reset and Out of Service
3.22.2.7 Reset AR lockout
When the AR function is in lockout status, it means that new sequences cannot be initialized,
because AR is insensitive to initiation commands. it can be released from the lockout state if all
blocked signals disappear (such as 79AR_LockoutAR BI=0) in the following ways:
• The function is reset through by 79AR_ResetAR BI manually or locally control.
• If the setting 79AR_AutoRst=1, the lockout is automatically reset after the reclaim time.
