102
4.10.2.3 Backup
This function is to backup files you checked in the file list, or the file you just clip.

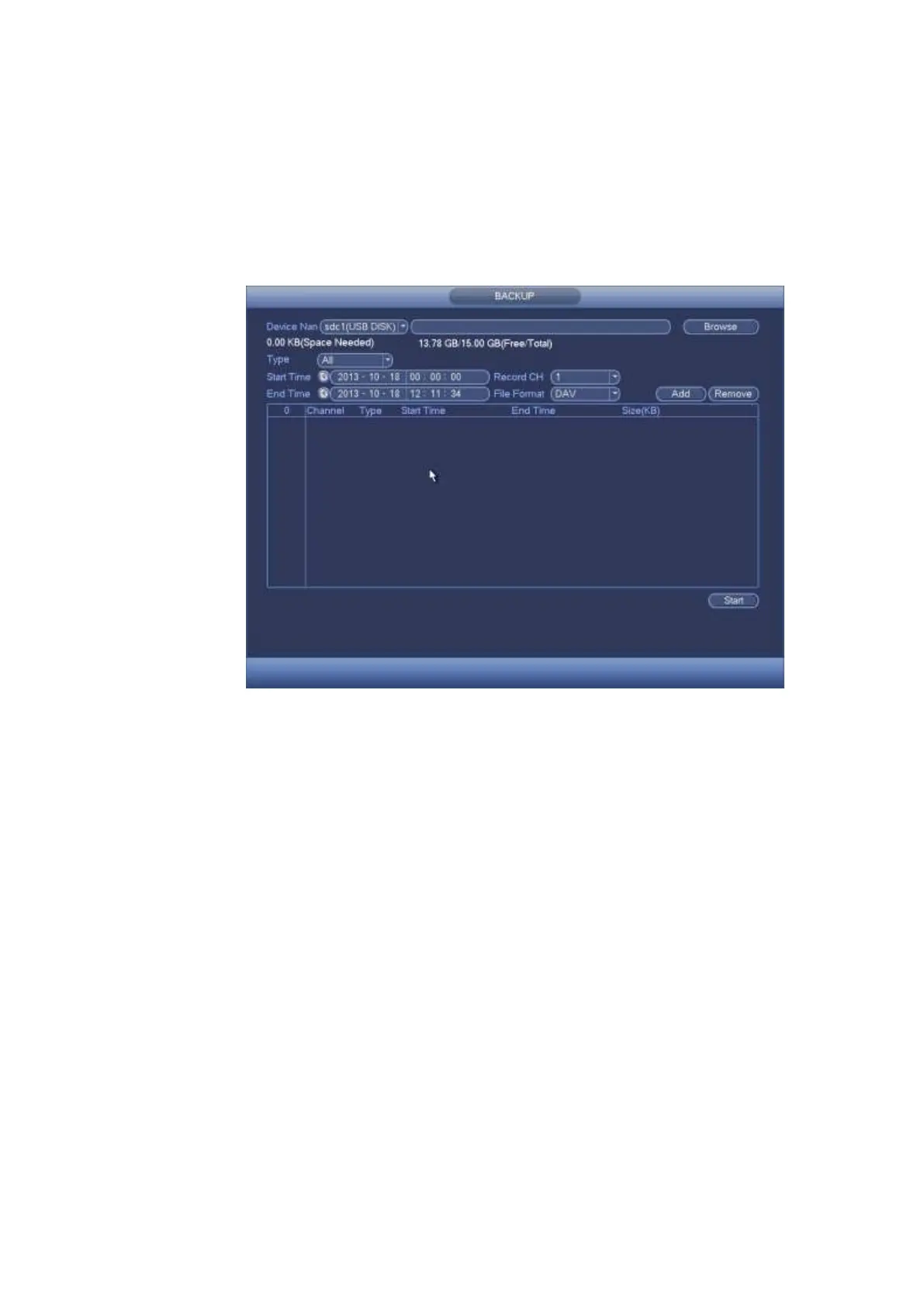

On the main menu, click backup button, you can see an interface is shown as in Figure 4-87. Here is for
you to view devices information.
You can view backup device name and its total space and free space. The device includes CD-RW, DVD
burner, USB device, flash disk, eSATA backup.
Figure 4-87
Select backup device and then set channel, file start time and end time.
Click add button, system begins search. All matched files are listed below. System automatically
calculates the capacity needed and remained. See Figure 4-88.
