Dahua HCVR82**A-S3 Series User Manual

158
Figure 4-148
After you set the corresponding parameters, click OK button in Figure 4-147., and then click the Apply
button in Figure 4-145 to complete the setup.
4.15.3.2 Intrusion (Cross warning zone) (Optional)
System generates an alarm once there is any object entering or exiting the zone in the specified
direction.

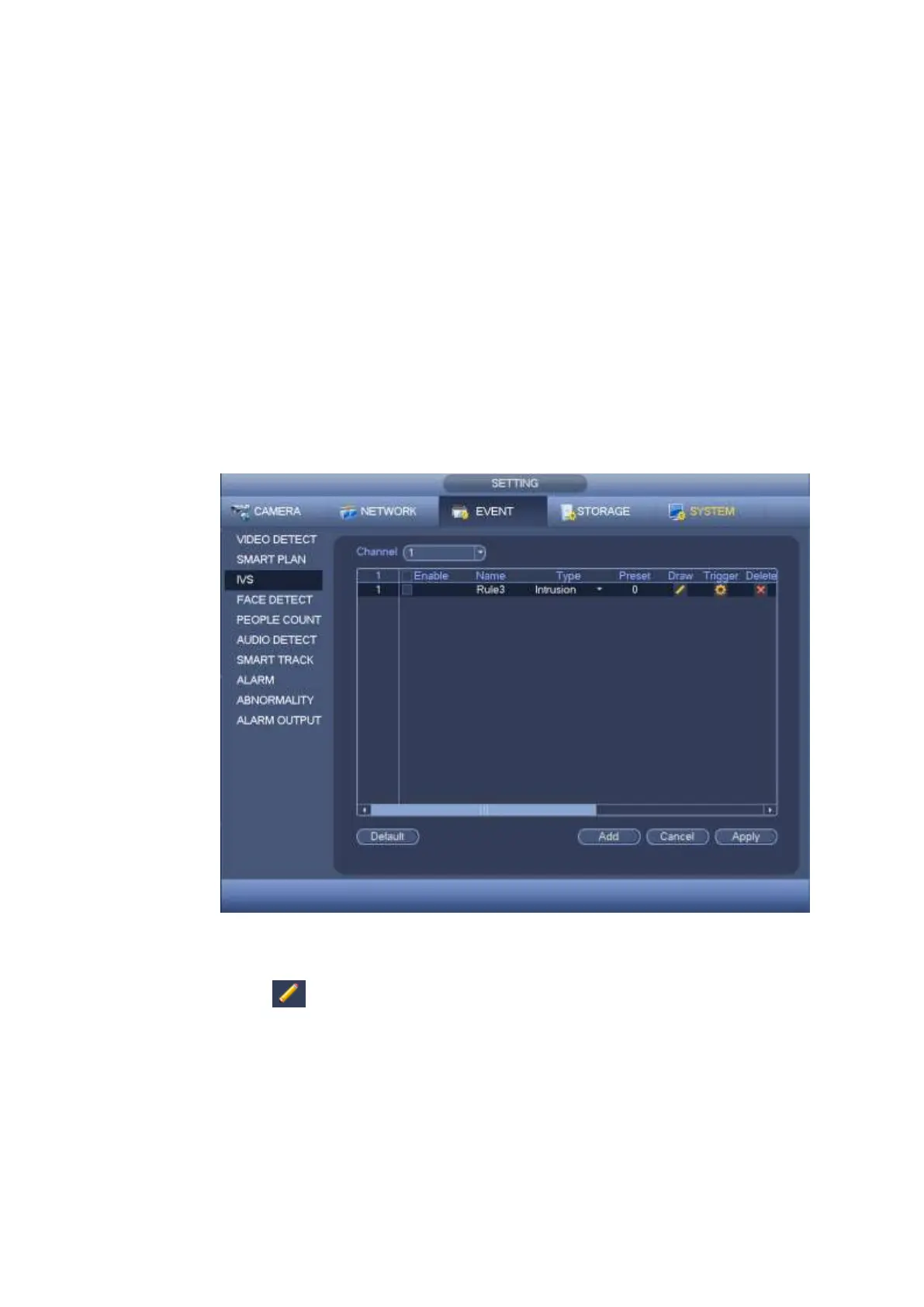

From main menu->Setting->Event->IVS, click Add button and then select type as intrusion, the interface
is shown as below. See Figure 4-149.
 System supports customized area shape and amount.
 Support appear/cross detection.
 Can detect the moving object operation in the specified zone, customized trigger amount and
staying time.
 Support objects filter function.
Figure 4-149
Click draw button to draw the zone. See Figure 4-150.
