Figure 5-124
Please refer to the following sheet for detailed information.
Parameter
Function
Protocol
Select the corresponding dome protocol. Default setup is console.
 Console is for you to use the COM or mini-end software to debug.
 The control keyboard is for you to control the device via the
special keyboard.
 Transparent COM (adapter) is to directly connect to the PC to
transfer data. Protocol COM is for card overlay function.
 Network keyboard is for you to use the special keyboard to
control the device.
 PTZ matrix is to connect to the peripheral matrix control.
Baud Rate
Select the baud rate.
Default setup is 115200.
Data Bit
The value ranges from 5 to 8.
Default setup is 8.
Stop bit
There are three options: 1/1.5/2.
Default setup is 1.
Parity
There are five options: none/odd/even/space/mark.
Default setup is none.
5.5.5.5 PTZ

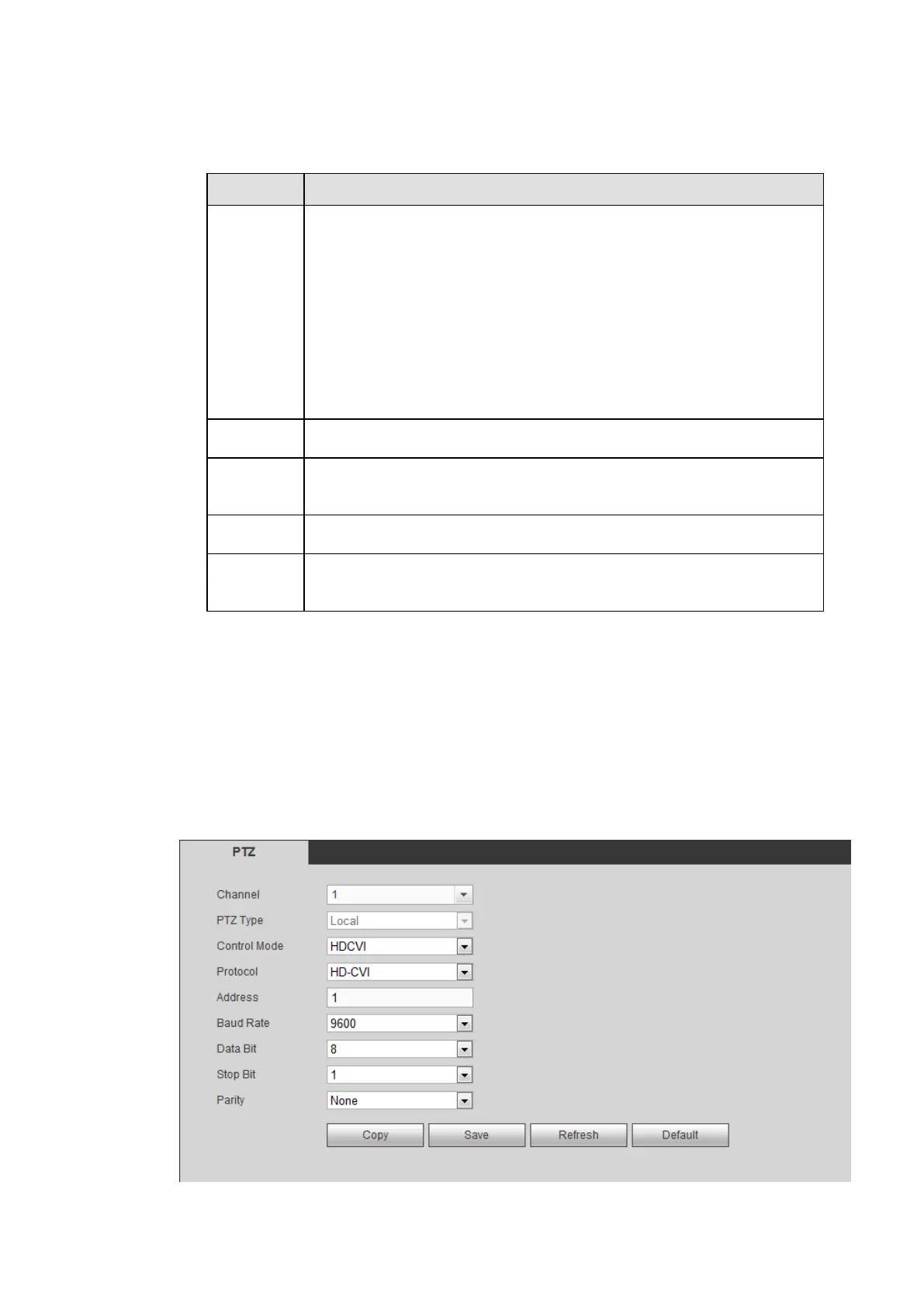

From main menu->Setup->System->PTZ, the PTZ interface is shown as in Figure 5-125 (local channel)
and Figure 5-126 (remote channel).
Before setup, please check the following connections are right:
 PTZ and decoder connection is right. Decoder address setup is right.
 Decoder A (B) line connects with DVR A (B) line.
Click Save button after you complete setup, you can go back to the monitor interface to control speed
dome.
