Dahua HCVR82**A-S3 Series User Manual

368

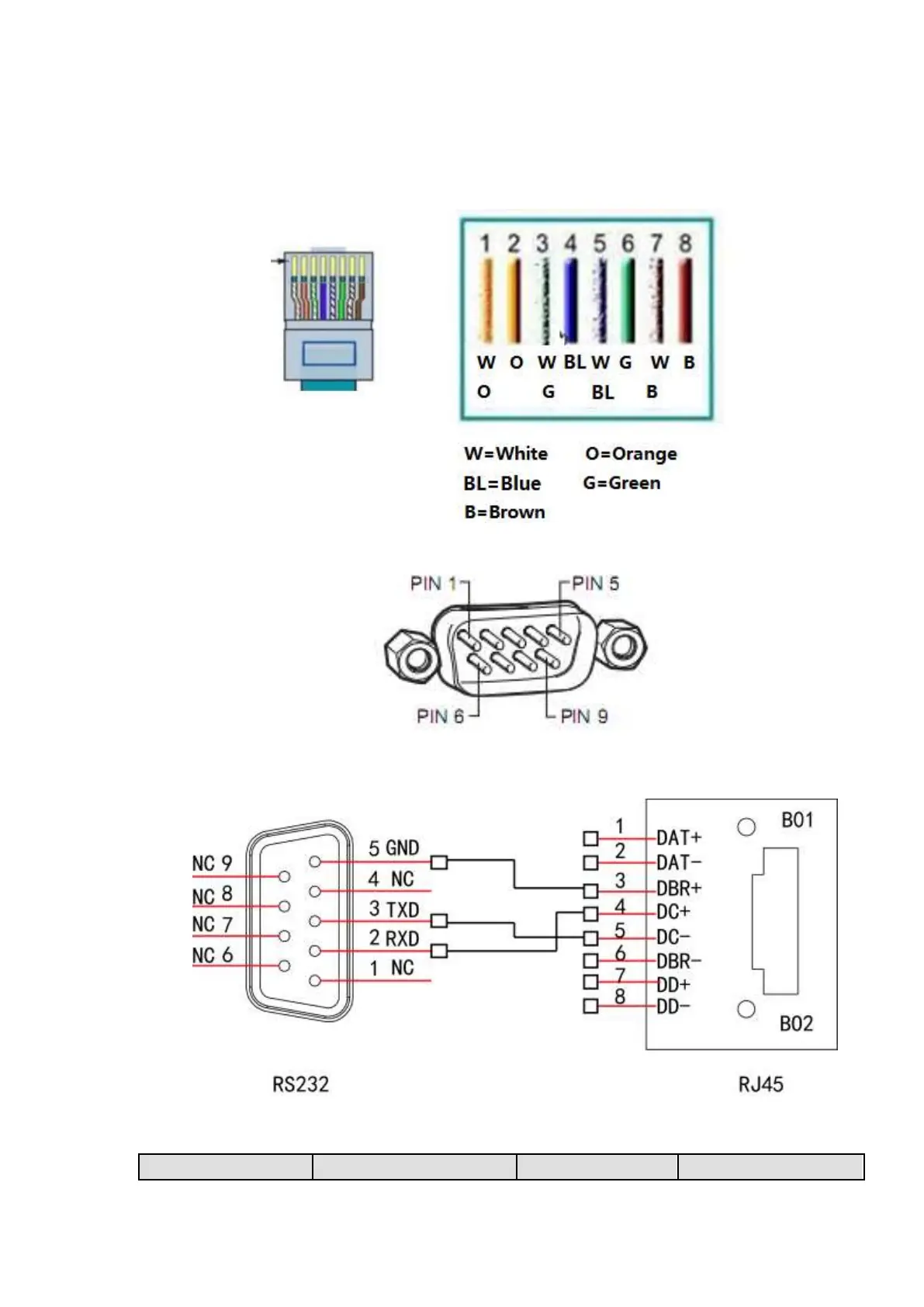

Appendix I RJ45-RS232 Connection Cable Definition
Here we are going to make standard RS232 port and standard RJ45 (T568B).
Please refer to the following figure for RJ45 cable definition.
Please refer to the following figure for RS232 pin definition.
Please refer to the following figure for connection information.
Please refer to the following sheet for detailed crossover cable connection information.
RJ45（T568B）
RJ45 (Network cable ）
RS232
Signal Description
