RELAY
Fault
GND
AI2
AI1
10V
AO1
GND
DI4
DI3
DIO
DI2
DI1
24V
Reset
Preset Ref. bit 0
Preset Ref. bit 1
Output Frequency
Start (1) / Stop (0)
Reverse (1) / Forward (0)
e30bj842.10

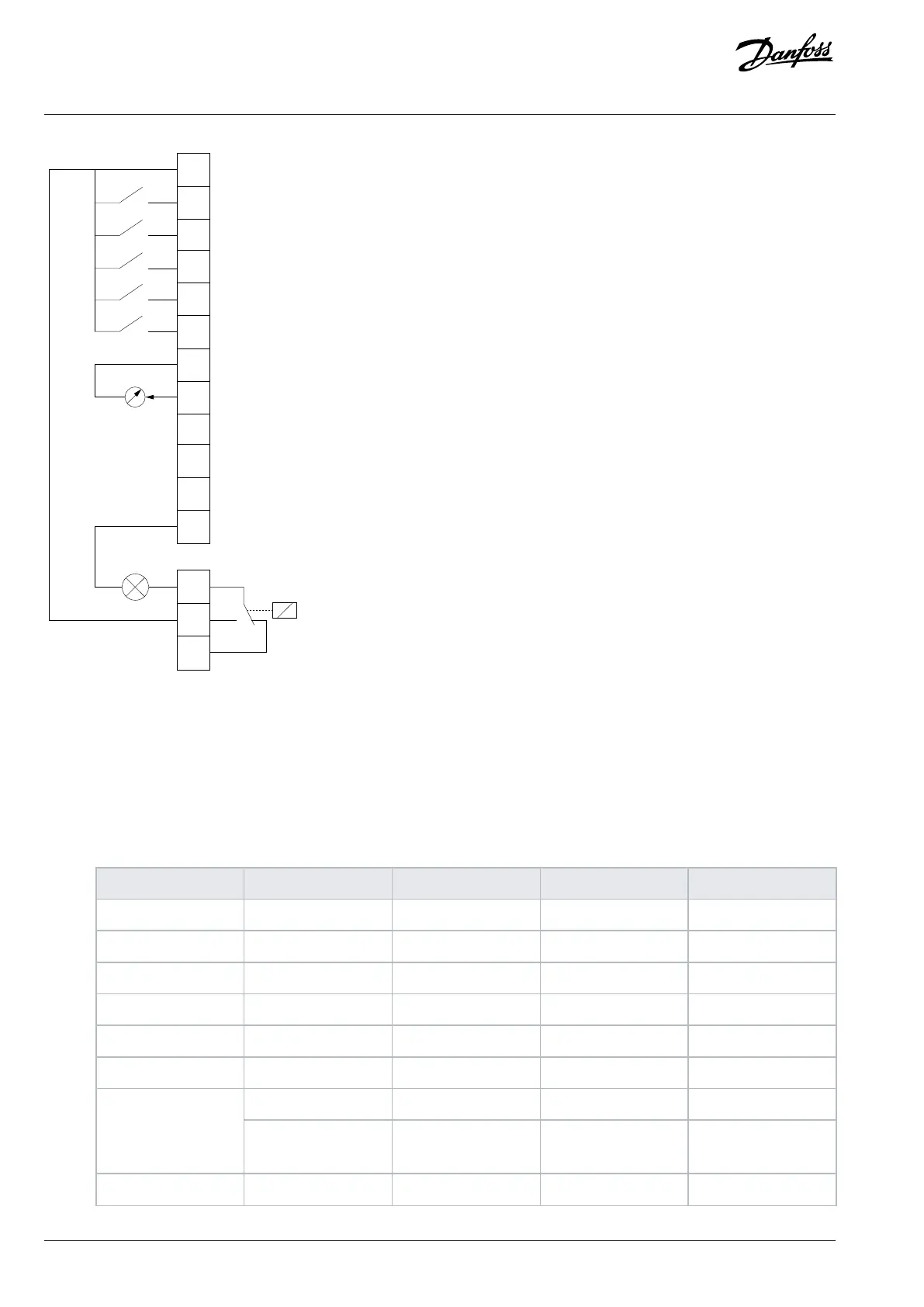

Figure 39: Default Connections
1. Set P 5.4.1 Application Selection to [22] Multi-speed Control Mode.
When [22] Multi-speed Control Mode is selected, the following parameters are automatically set to the values shown in the
table.
Table 17: Default Settings
Category Parameter index Parameter name Default setting Parameter number
Operation mode 5.4.2 Operation Mode [0] Speed Open Loop 100
DI 1 - T13 9.4.1.2 T13 Digital Input [8] Start 510
DI 2 - T14 9.4.1.3 T14 Digital Input [10] Reversing 511
DI/O - T15 9.4.1.4 T15 Digital Input [1] Reset 512
DI 3 - T17 9.4.1.5 T17 Digital Input [16] Preset Ref. Bit 0 513
DI 4 - T18 9.4.1.6 T18 Digital Input [17] Preset Ref. Bit 1 515
9.5.1.1 T31 Mode [0] 0–20 mA 690AO1 - T42
9.5.1.2 T31 Analog Output [100] Output Fre-
quency
691
Relay 9.4.3.1 Function Relay [9] Fault 540
