Danfoss VLT AQUA Drive FC 202

130BA946.10
RemoveJumper to activate Safe Stop
12 13 18 19 27 29 32 33 20

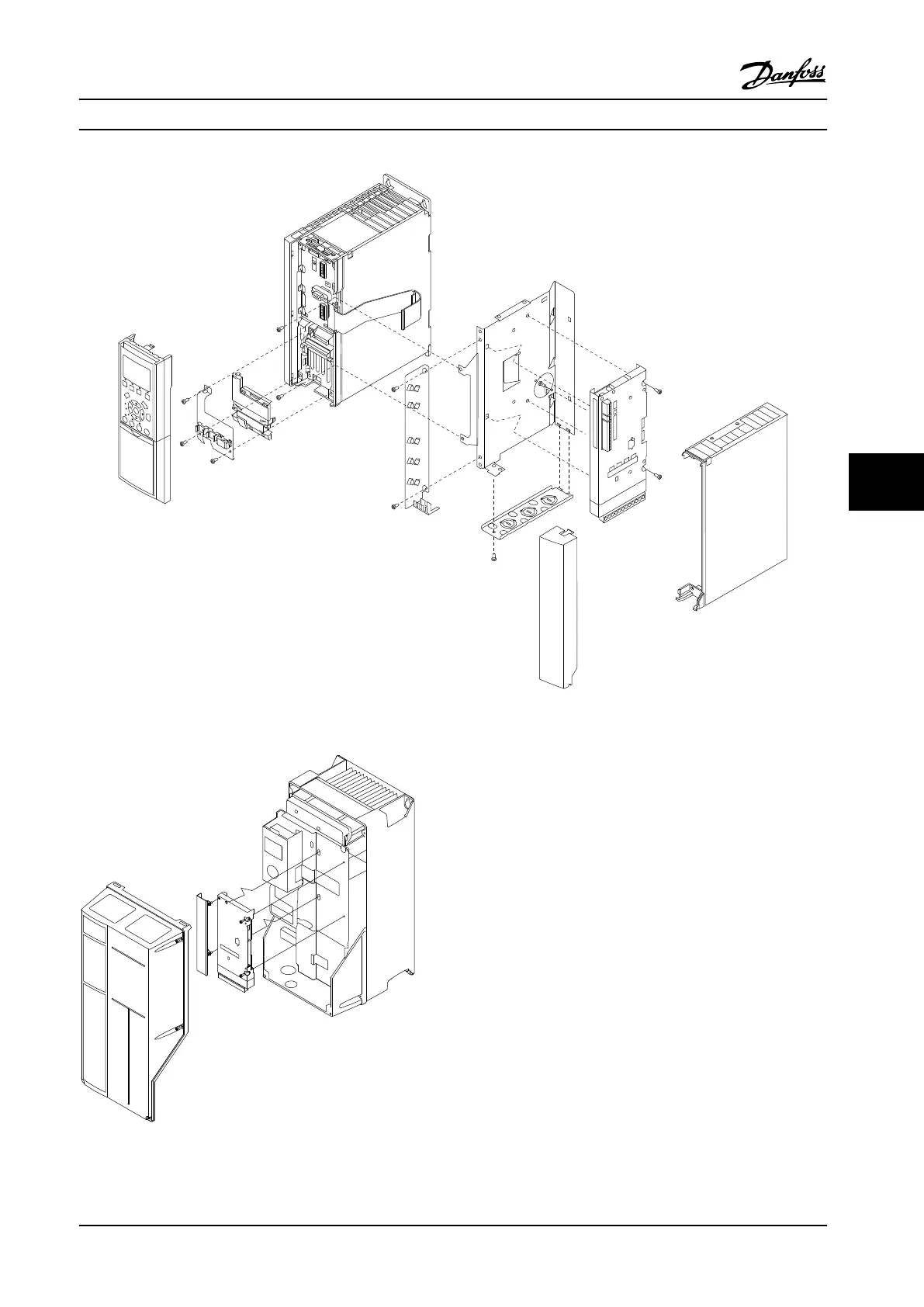

Figure 7.17 Enclosure A2, A3 (and B3) 40 mm (1.57 in) (only one C option)
DC
DC
130BA945.10
Figure 7.18 Enclosures B (except B3) and C
How to add the MCO 102 option
1. Disconnect power.
2. Disconnect power to the live part connections on
relay terminals.
3. Remove the LCP, the terminal cover and the
cradle from the FC 202.
4. Fit the MCO 102 option in slot C1.
5. Connect the control cables and relieve the cables
by the enclosed cable strips.
6. Fit the extended cradle and terminal cover.
7. Remount the LCP.
8. Connect power to the adjustable frequency drive.
Specications Design Guide
