Danfoss VLT AQUA Drive FC 202 Design Guide

ensures that the system or auxiliary equipment is in the
proper state before the drive is allowed to start the motor.

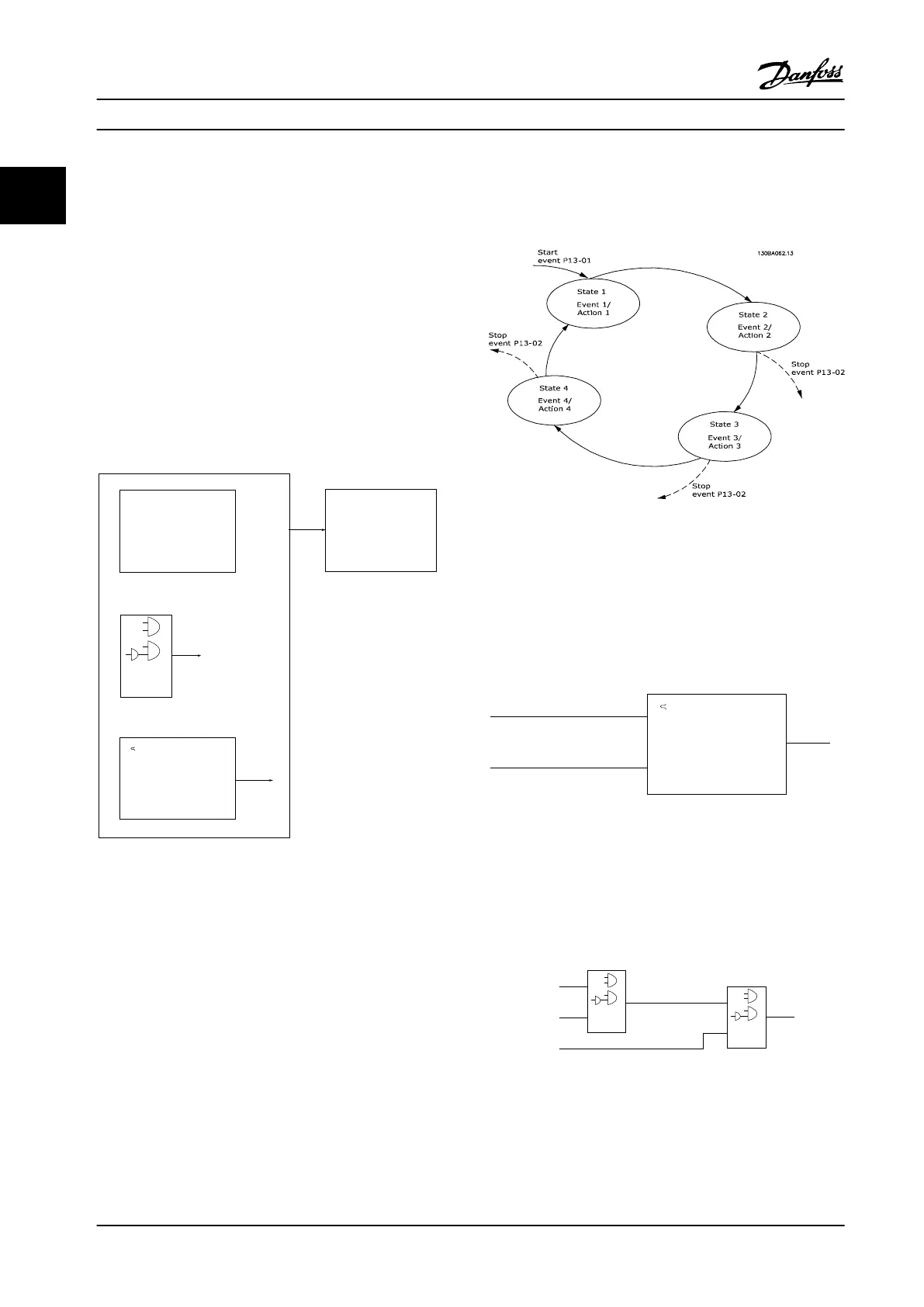

2.6.15 Smart Logic Control (SLC)
Smart logic control (SLC) is a sequence of user-dened
actions (see 13-52 SL Controller Action [x]) executed by the
SLC when the associated user-dened event (see 13-51 SL
Controller Event [x]) is evaluated as TRUE by the SLC.
The condition for an event can be a particular status or
that the output from a logic rule or a comparator operand
becomes TRUE. That leads to an associated action as
shown in Figure 2.19.
. . .
. . .
Par. 13-11
Comparator Operator
Par. 13-43
Logic Rule Operator 2
Par. 13-51
SL Controller Event
Par. 13-52
SL Controller Action
130BB671.13
Coast
Start timer
Set Do X low
Select set-up 2
. . .
Running
Warning
Torque limit
Digital input X 30/2
. . .
=
TRUE longer than..
. . .
. . .
Figure 2.19 SCL Event and Action
Events and actions are each numbered and linked in pairs
(states). This means that when event [0] is fullled (attains
the value TRUE), action [0] is executed. After this, the
conditions of event [1] is evaluated and if evaluated TRUE,
action [1] is executed and so on. Only one event is
evaluated at any time. If an event is evaluated as FALSE,
nothing happens (in the SLC) during the current scan
interval and no other events are evaluated. This means that
when the SLC starts, it evaluates event [0] (and only event
[0]) each scan interval. Only when event [0] is evaluated
TRUE, the SLC executes action [0] and starts evaluating
event [1]. It is possible to program from 1 to 20 events and
actions.
When the last
event/action has been executed, the
sequence starts over again from event [0]/action [0].
Figure 2.20 shows an example with four event/actions:
Figure 2.20 Order of Execution when Four Events/Actions are
Programmed
Comparators
Comparators are used for comparing continuous variables
(output frequency, output current, analog input etc.) to
xed preset values.
Par. 13-11
Comparator Operator
=
TRUE longer than.
. . .
. . .
Par. 13-10
Comparator Operand
Par. 13-12
Comparator Value
130BB672.10
Figure 2.21 Comparators
Logic Rules
Combine up to three Boolean inputs (TRUE/FALSE inputs)
from timers, comparators, digital inputs, status bits and
events using the logical operators AND, OR, and NOT.
. . .
. . .
. . .
. . .
Par. 13-43
Logic Rule Operator 2
Par. 13-41
Logic Rule Operator 1
Par. 13-40
Logic Rule Boolean 1
Par. 13-42
Logic Rule Boolean 2
Par. 13-44
Logic Rule Boolean 3
130BB673.10
Figure 2.22 Logic Rules
Product Overview
VLT
®
AQUA Drive FC 202
32 Danfoss A/S © 09/2014 All rights reserved. MG20N622
