Install the HF-CM cores by passing the three motor phase
cables (U, V, W) through each core, as shown in Figure 3.30.
PE U V W
130BD839.10
Figure 3.30 HF-CM Core with Motor Phases
3.7.8
Harmonic Filters
The Danfoss AHF 005 and AHF 010 are advanced harmonic
lters, not to be compared with traditional harmonic trap
lters. The Danfoss harmonic lters have been specially
designed to match the Danfoss adjustable frequency
drives.
By connecting the Danfoss harmonic
lters AHF 005 or
AHF 010 in front of a Danfoss adjustable frequency drive,
the total harmonic current distortion generated back to
line power is reduced to 5% and 10%.
3.7.9
IP21/NEMA Type 1 Enclosure Kit
IP20/IP4X top/NEMA TYPE 1 is an optional enclosure
element available for IP20 compact units.
If the enclosure kit is used, an IP20 unit is upgraded to
comply with enclosure IP21/4X top/TYPE 1.
The IP4X top can be applied to all standard IP20 FC 202
variants.
A
B
C
D
E

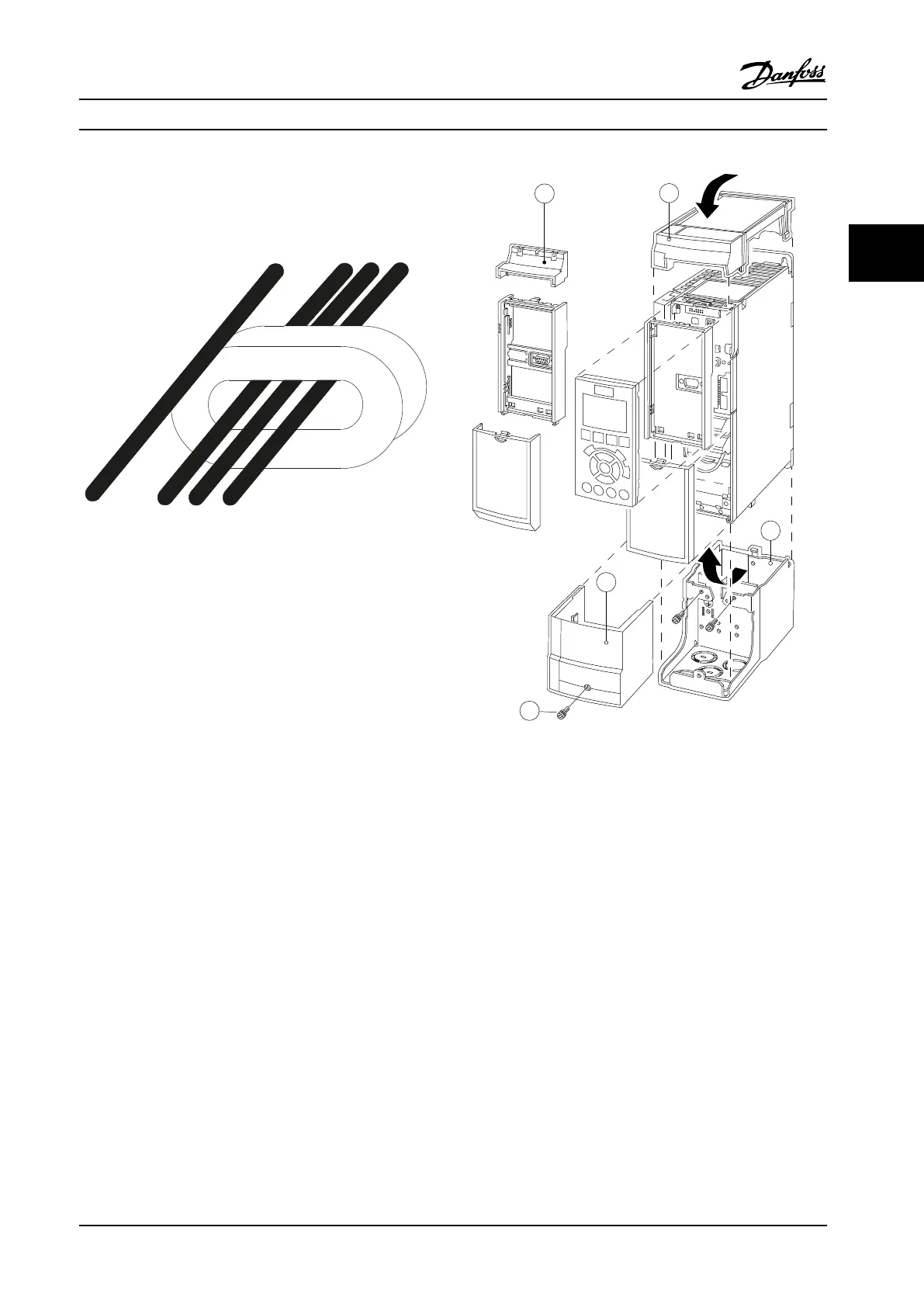

130BT323.10
Figure 3.31 Enclosure Size A2
System Integration Design Guide
MG20N622 Danfoss A/S © 09/2014 All rights reserved. 75
3 3
