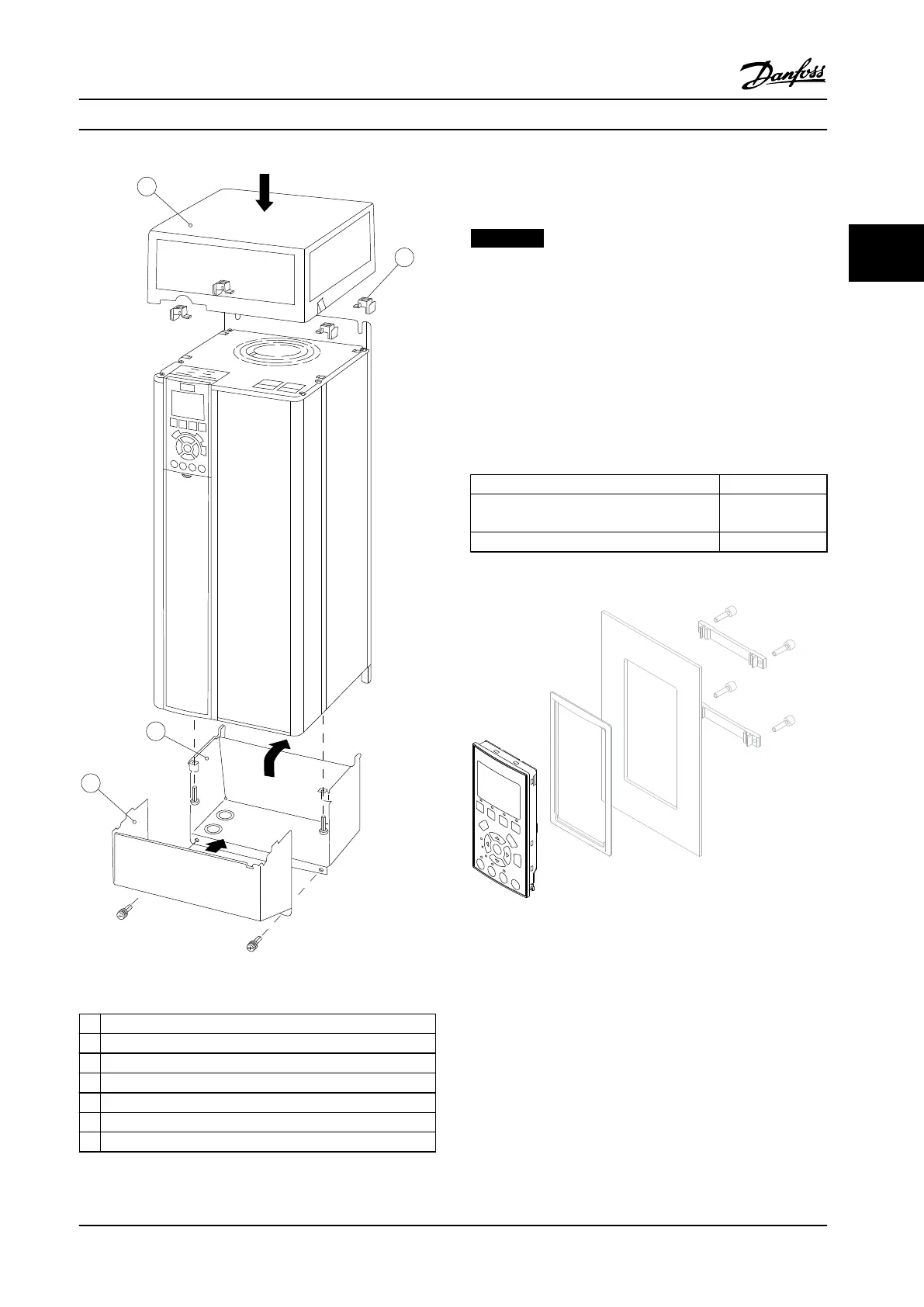

Figure 3.34 Enclosure Sizes B4, C3, and C4
A
Top cover
B Brim
C Base part
D Base cover
E Screw(s)
F Fan cover
G Top clip
Table 3.21 Legend to Figure 3.33 and Figure 3.34
When option module A and/or option module B is/are
used, t the brim (B) to the top cover (A).
NOTICE!
Side-by-side installation is not possible when using the
IP21/IP4X/TYPE 1 Enclosure Kit
3.7.10 Remote Mounting Kit for LCP
The LCP can be moved to the front of an enclosure by
using the remote built-in kit. The fastening screws must be
tightened with a torque of maximum 1 Nm.
The LCP enclosure is rated IP66.
Enclosure IP66 front
Maximum cable length between LCP and
unit 3 m (10 ft)
Communication standard RS485
Table 3.22 Technical Data
Figure 3.35 LCP Kit with Graphical LCP, Fasteners, 3 m (10 ft)
Cable and Gasket
Ordering Number 130B1113
System Integration Design Guide
MG20N622 Danfoss A/S © 09/2014 All rights reserved. 77
