3.5.3 EMC-compliant Electrical Connection
130BD529.12
1
2
3
4
5
6
7
8
9
L1
L2
L3
PE
10
11
PE
u
v
w
1 PLC 7 Motor, 3--phase and PE (shielded)
2 Adjustable frequency drive 8 Line power, 3--phase and reinforced PE (non-shielded)
3 Output contactor 9 Control wiring (shielded)
4 Cable clamp 10
Potential equalization min. 16 mm
2
(0.025 in
2
/AWG 6)
5 Cable insulation (stripped)
11
Clearance between control cable, motor cable and line cable:
Minimum 200 mm (7.9 in)
6 Cable connector

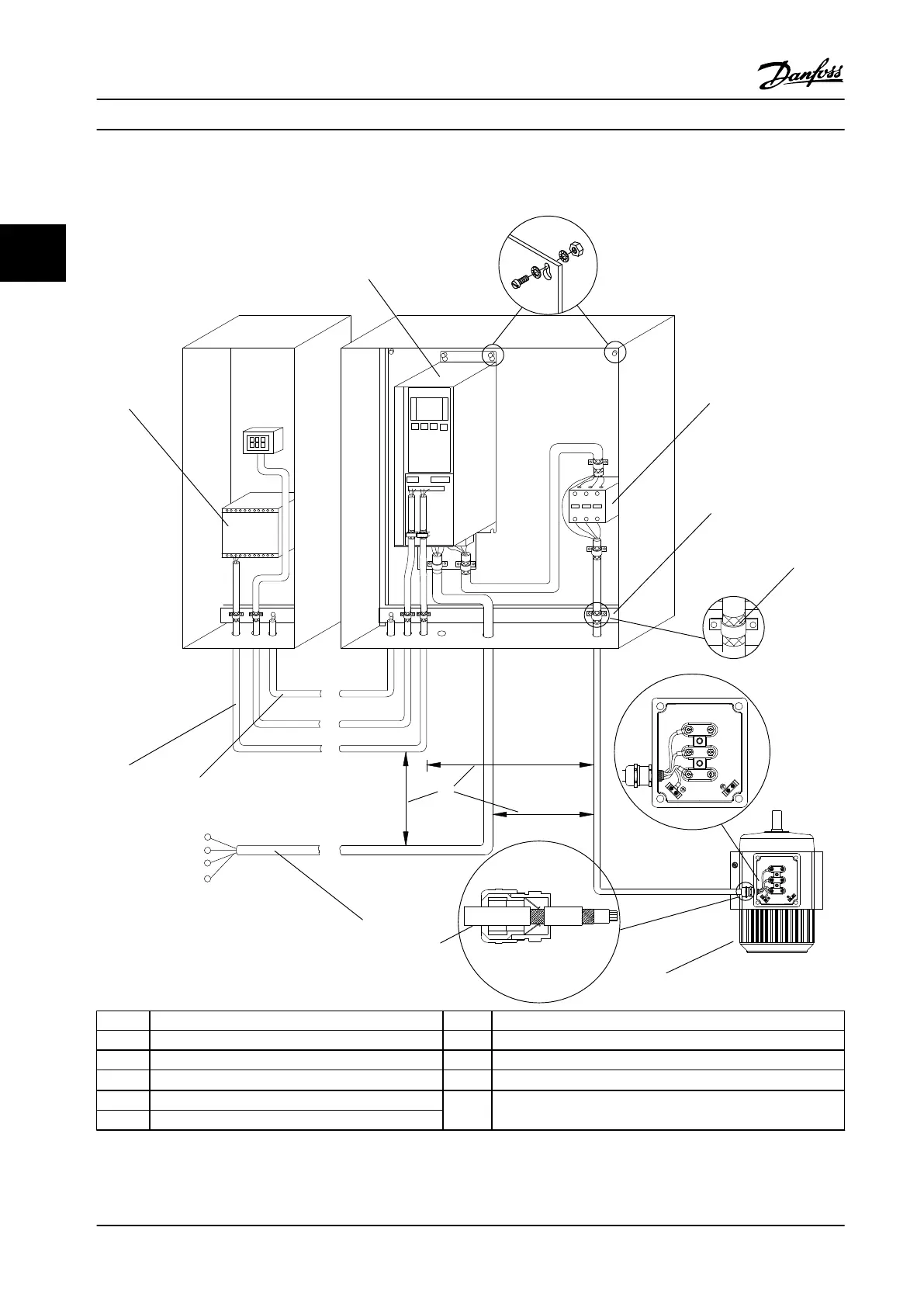

Figure 3.22 EMC-compliant Electrical Connection
System Integration
VLT
®
AQUA Drive FC 202
66 Danfoss A/S © 09/2014 All rights reserved. MG20N622
