Danfoss VLT AQUA Drive FC 202 Design Guide

130BT333.10

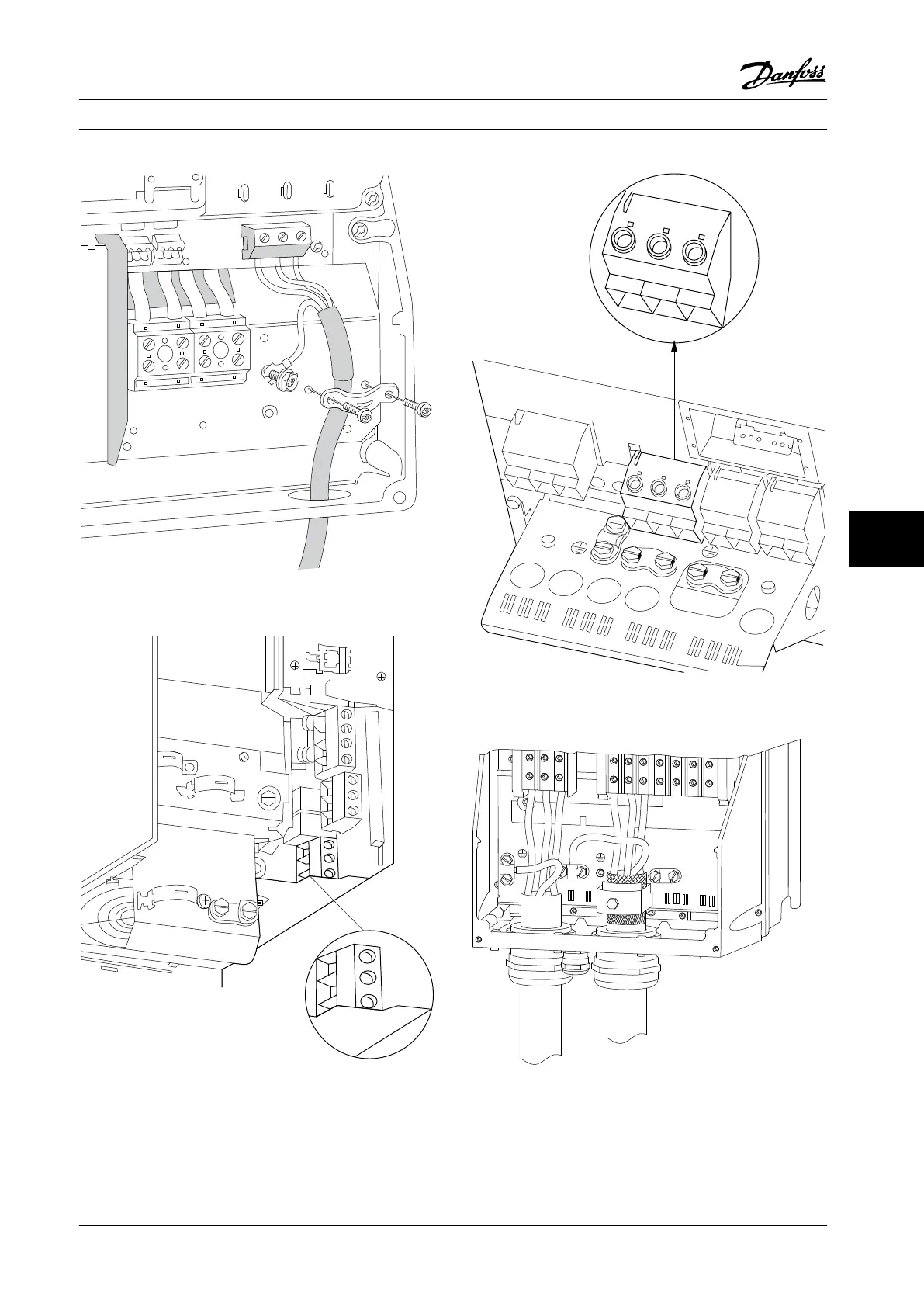

Figure 8.13 Motor Connection for Enclosures B1 and B2
130BA726.10
Figure 8.14 Motor Connection for Enclosure B3
U
96
V
97
W
98
U
96
V
97
W
98
L1
91
L2
92
L3
93
DC-
88
DC+
89
R-
81
R+
82
130BA721.10
99
Figure 8.15 Motor Connection for Enclosure B4
91
L1
92
L2
93
L3
96
U
97
V
98
W
88
DC-
89
DC+
81
R-
8
R+
130BA390.11
99
95
Figure 8.16 Motor Connection Enclosures C1 and C2 (IP21/
NEMA Type 1 and IP55/66/NEMA Type 12)
Appendix - Selected Drawing... Design Guide
MG20N622 Danfoss A/S © 09/2014 All rights reserved. 199
