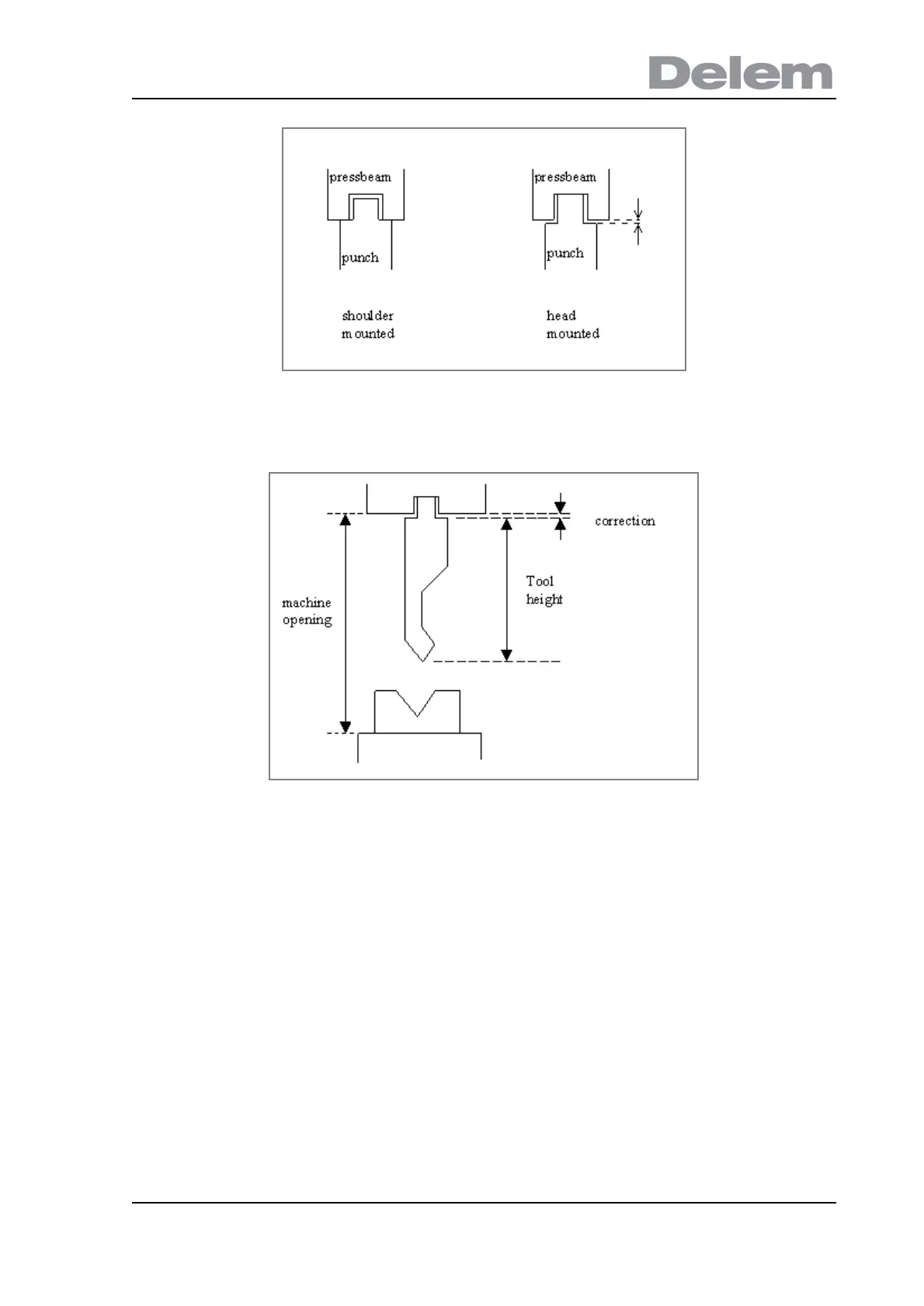

If 'shoulder mounted' is chosen, the Y-axis position is calculated from the standard tool height.
This is the default setting.
If 'head mounted' is chosen, a correction is made for Y-axis computation
Heel dimensions
Width
Width of the heel.
Height 1
Height1 of the heel.
Height 2
Height2 of the heel.
Radius
The radius in the heel segment.
Height 1 and height 2 do not influence the tool height you have programmed before.
